Contact for Pricing
Minimum Qty: 100
Multiplier: 10
*Contact for lower quantities*
Overview
- Stackable design allows 1/2" height increments for flexible cable management
- Accepts cable diameters up to 1.25" (31.8mm)
- Manufactured from black glass-filled flame-retardant Nylon 6.6 for safety and durability
- Compatible with Dura-Ty™ cable ties for secure installation
- Designed for use in parallel or perpendicular applications on ladder racks
Specifications
Application | NULL |
Cable Type | Cable Rack Spacers |
Color | Black |
Material Quality | Glass-Filled Nylon 6.6 |
Overall Height* | 1.43 In. |
Special Features | NULL |
Standard | Meets UL94-V0 specificationsRoHS Compliant |
Type | Cable Rack Spacers |
Package Dimensions (L x W x H) | 8 IN x 1.5 IN x 7 IN |
Package Weight (Imperial) | 0.255 lbs |
CMWB
The Panduit Cable Management Waterfall Base is designed to improve network reliability. Users can easily install it onto most standard ladder rack rungs and stringers to transfer wires at a safe 1.75in (43mm) vertical bend radius. Glass-filled Nylon, 8.4in x 5.2in x 3.4in (213mm x 133mm x 86mm), Black, 1pc.
CRS4-125-X
The four-space stackable cable rack spacer maximizes rack space by stacking products for maximum cable capacity. It is constructed of glass-filled flame retardant nylon 6.6. It accepts cable up to 1.25 inches (31.8mm) in diameter.
CMW-KIT
Cable management waterfall kit. Provides bend radius control when transferring cables from standard ladder rack. Kit includes CMWB, two CMWW, and cable ties.
CWF400
The Tak-Ty Conduit Waterfall is designed for 4-inch EMT conduit to cost-effectively manage sensitive network cables in compliance with the TIA/EIA standards. The product allows for installation in retrofit applications where communication cables are already installed. The bend radius control helps prevent degradation of cable performance and prevents pinch points that could damage cable. The conduit waterfall is 8.4 inches x 5.7 inches (213.4mm x 144.8mm).
CMW-KIT10
Cable management waterfall kit. Provide bend radius control when transferring cables from standard ladder rack. Kit includes CMWB10, two CMWW10 and cable ties.

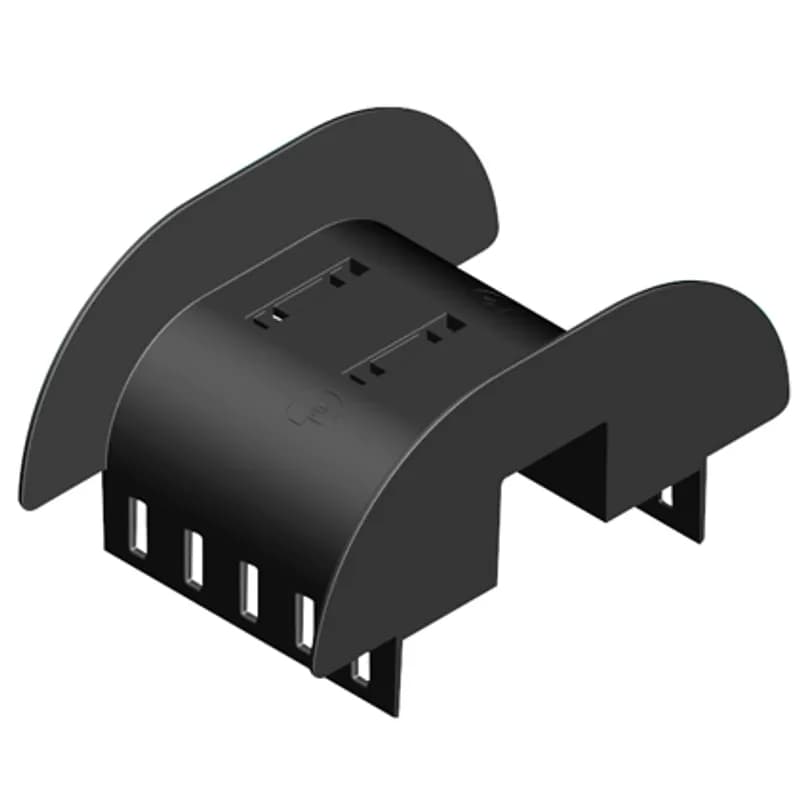

CMW2B
Cable management double waterfall base. Used to maintain 1.75" (101.6mm) bend radius control vertically when transferring cable off either side of ladder rack rung. Mounts to ladder rack rung with standard cross section cable ties (included).
PC125-H25D-C0
Pan-Clamp heavy duty fixed diameter clamp, 1.25" (31.8mm) bundle, black, standard package.
Frequently Asked Questions
What are the dimensions of CRS1-125-X?
The dimensions of CRS1-125-X are 1.54" H x 1.55" W x 1.19" D.
What is the cable capacity of CRS1-125-X?
CRS1-125-X has a single cavity that accepts cable bundles up to 1.25" in diameter, accommodating 24 CAT 5 cables.
What materials are used in CRS1-125-X?
CRS1-125-X is manufactured from a material that meets UL94-V0 specifications.
What is the maximum stack height for CRS1-125-X?
The recommended maximum stack height for CRS1-125-X is four.
How should CRS1-125-X be installed?
Secure the bottom level to the ladder rung with two standard PANDUIT cable ties and stack additional spacers as needed.
What types of cable ties are compatible with CRS1-125-X?
Compatible cable ties include PANDUIT PAN-TY Cable Ties and TAK-TY Hook & Loop Cable Ties.
What is the warranty period for CRS1-125-X?
The warranty for CRS1-125-X covers defects in material and workmanship for six months from the date of delivery.
What tools are recommended for installation?
Use the GTS Cable Tie Installation Tool for correct tensioning and cut-off of cable ties during installation.
What precautions should be taken during installation?
Ensure proper tensioning of cable ties to avoid damage to cables and secure spacers correctly to prevent movement.
Can CRS1-125-X be used outdoors?
The documentation does not specify outdoor use; it is designed for interior locations such as communication closets.
How to Install the CRS1-125-X Stackable Cable Rack Spacer
This guide provides step-by-step instructions for installing the CRS1-125-X Stackable Cable Rack Spacer securely on a ladder rack.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers
Supplies needed:
Panduit Pan-Ty Cable Ties, Cable bundles
- Secure the bottom level
Attach the bottom level of the CRS1-125-X to the ladder rack rung using two standard Panduit Pan-Ty Cable Ties. Ensure it is firmly secured.
- Install cables
Place the cable or cable bundles into each of the designated cable retaining areas of the CRS1-125-X.
- Secure cables
Use Panduit Pan-Ty Cable Ties, Belt-Ty In-Line Cable Ties, or Tak-Ty Hook and Loop Cable Ties to secure the cables to the cable retaining post.
- Stack additional levels
Slide the male dovetail of the next level into the female dovetail slot of the installed level until the latch locks into position.
- Repeat installation
Continue to repeat steps 2, 3, and 4 until you reach the maximum stack height of four for the CRS1-125-X.
