Panduit CMDSWTLCZBL - The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a white fiber adapter along with a black module and has zirconia split sleeves.
Panduit

CMDSWTLCZBL

UPC: 613056861589

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit Mini-Com Duplex LC Adapter (SKU: CMDSWTLCZBL) offers a compact and efficient solution for fiber optic connectivity. This Small Form Factor (SFF) adapter is designed to couple two LC duplex connectors within a single module space, significantly reducing the footprint on equipment bays and distribution panels by up to 50% compared to older connector types. It features integrated panel retention clips for secure mounting and is TIA/EIA-605 FOCIS-10 compatible, ensuring broad interoperability. The adapter is equipped with a white fiber adapter and a black module for clear identification. Crucially, it utilizes zirconia ceramic alignment sleeves, which are essential for precise alignment of both Singlemode (OS1/2) and Multimode (OM3/4/5) fiber connectors, accommodating standard, high-density, and Angle Polish (APC) configurations. This ensures optimal signal transmission with minimal insertion loss. The use of zirconia sleeves also contributes to the adapter's durability and performance in various operational conditions. Manufactured in the US, this adapter is a reliable component for data centers, telecommunications, and enterprise networking applications where space optimization and high-density fiber management are critical. Its design facilitates flexible system configurations and fast, economical installations, making it ideal for environments with frequent moves, adds, and changes.
  • Couples two LC duplex connectors in one module space
  • Small Form Factor (SFF) design reduces panel space by up to 50%
  • TIA/EIA-605 FOCIS-10 compatible for broad interoperability
  • Features zirconia ceramic alignment sleeves for precise fiber connection
  • Integrated panel retention clips for secure mounting

Specifications

Application
Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications.
Color*
White
Fiber Type
OM4
Material
Zirconia Ceramic
Operating Temperature
140 F
Standard
RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements
Type
LC Adapter Module
Package Dimensions (L x W x H)
5 IN x 3.5 IN x 1 IN
Package Weight (Imperial)
0.013 lbs

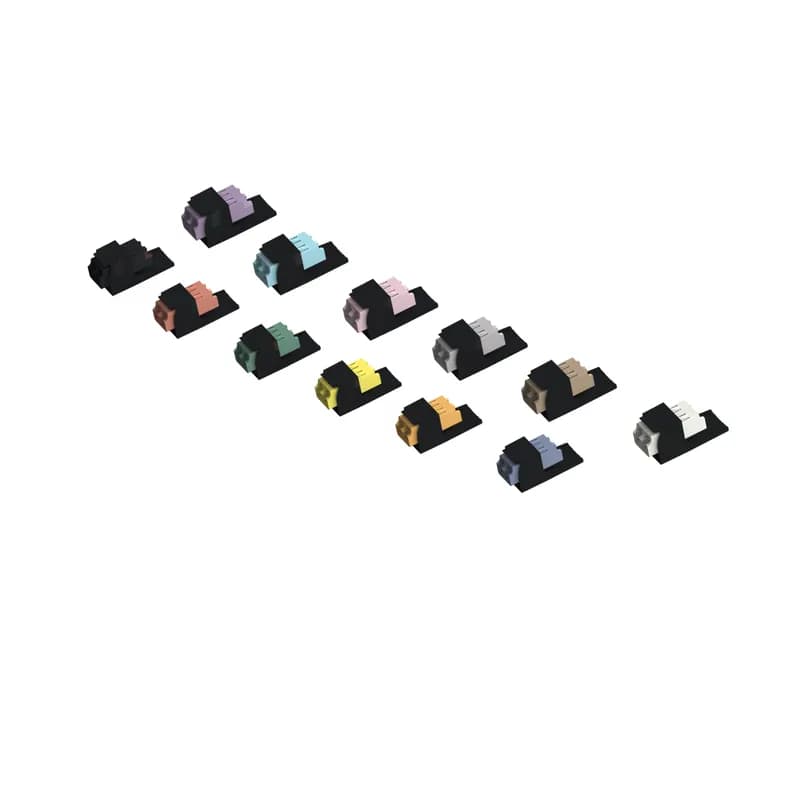

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed P-White on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.

CMDPWTWTDLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed P-White on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a white fiber adapter along with an international white module and has zirconia split sleeves.

CMDSWTLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a white fiber adapter along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed P-White on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

CMDPWTWTDLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed P-White on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

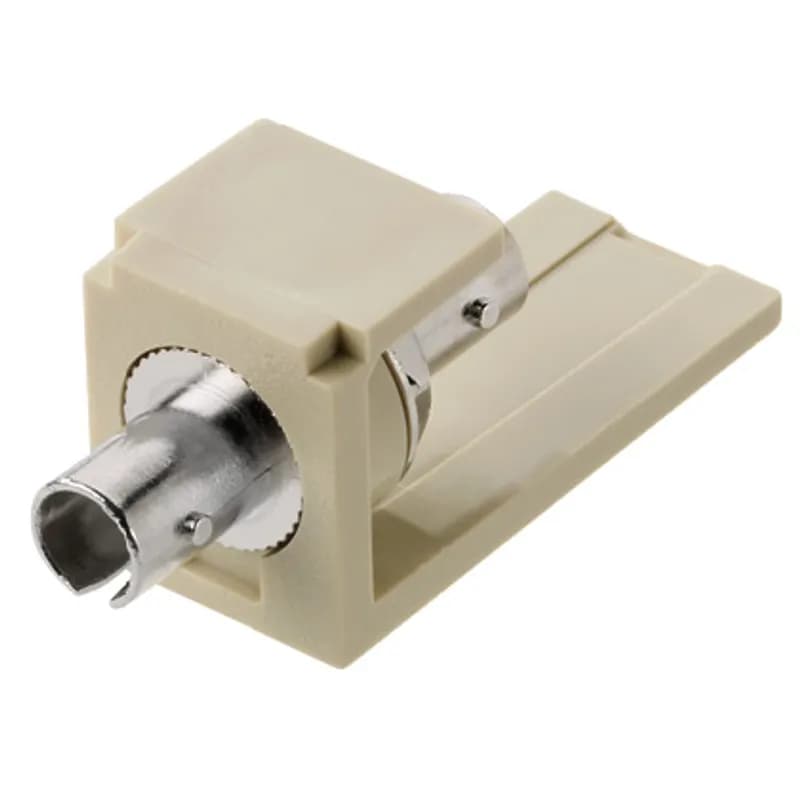

The Mini-Com Multimode ST Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two ST connectors in one module space and features a ST fiber adapter along with an international white module and has zirconia split sleeves.

CMSTZIW

The Mini-Com Multimode ST Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two ST connectors in one module space and features a ST fiber adapter along with an international white module and has zirconia split sleeves.
Module supplied with one LC (keyed P white) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.

CMDPWTLCZAW

Module supplied with one LC (keyed P white) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.
Module supplied with one LC (keyed P white) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.

CMDPWTLCZEI

Module supplied with one LC (keyed P white) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.
Module supplied with one LC (keyed P white) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.

CMDPWTLCZBU

Module supplied with one LC (keyed P white) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed P-White fiber adapter along with a black module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.

CMDPWTLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed P-White fiber adapter along with a black module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed P-White fiber adapter along with an international white module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.

CMDPWTLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed P-White fiber adapter along with an international white module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with an international white module and has zirconia split sleeves.

CMDSBLLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed G-Violet on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.

CMDGVLVLDLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed G-Violet on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with a black module and has zirconia split sleeves.

CMDSBLLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with a black module and has zirconia split sleeves.

Frequently Asked Questions

What standards do LC fiber optic adapters meet?

LC fiber optic adapters are TIA/EIA-604 FOCIS-10 compatible and exceed TIA/EIA-568-B.3 requirements.

What material is used for the split sleeve?

The split sleeve material is Zirconia ceramic, which is required for singlemode applications.

What is the average insertion loss?

The average insertion loss for both multimode and singlemode is 0.1dB.

What is the return loss for singlemode?

Singlemode return loss is >40dB for SPC and >55dB for UPC connector polish performance.

What is the return loss for multimode?

Multimode return loss supports >20dB connector polish performance.

Where can Mini-Com adapter modules be used?

Mini-Com adapter modules are interchangeable within Mini-Com Outlets, Boxes, and Patch Panels.

What types of keyed adapters are available?

Adapters are available in Keyed to Keyed, Keyed to Non-keyed, and Standard (non-keyed to non-keyed) configurations.

What products are LC adapters compatible with?

LC Fiber Optic Adapters can be used with Mini-Com Modules, Patch Panels, and Surface Mount boxes.

What applications are LC adapters suitable for?

LC adapters are suitable for LAN, SAN, public networks, and fiber-to-the-desk applications.

How do LC adapters compare to SC adapters in density?

LC adapters with 1.25mm ferrules double the port density compared to SC adapters.

How to Install the CMDEISCZEI Fiber Adapter

This guide provides step-by-step instructions for installing the CMDEISCZEI fiber adapter, ensuring proper mounting and wiring for optimal performance.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors

  1. Mount the fiber adapter

    Secure the CMDEISCZEI fiber adapter to the designated mounting location using the provided mounting screws. Ensure it is level and firmly attached.

  2. Connect the fiber cables

    Insert the appropriate keyed or non-keyed fiber cables into the adapter ports. Ensure that the cables are fully seated and locked in place.

  3. Verify connections

    Use a multimeter to check the continuity of the connections. Ensure that there are no shorts or open circuits in the wiring.
