Panduit CMDSRDLCZIW - The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a red fiber adapter along with an international white module and has zirconia split sleeves.
Panduit

CMDSRDLCZIW

UPC: 613056861534

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 1

*Contact for lower quantities*

Overview

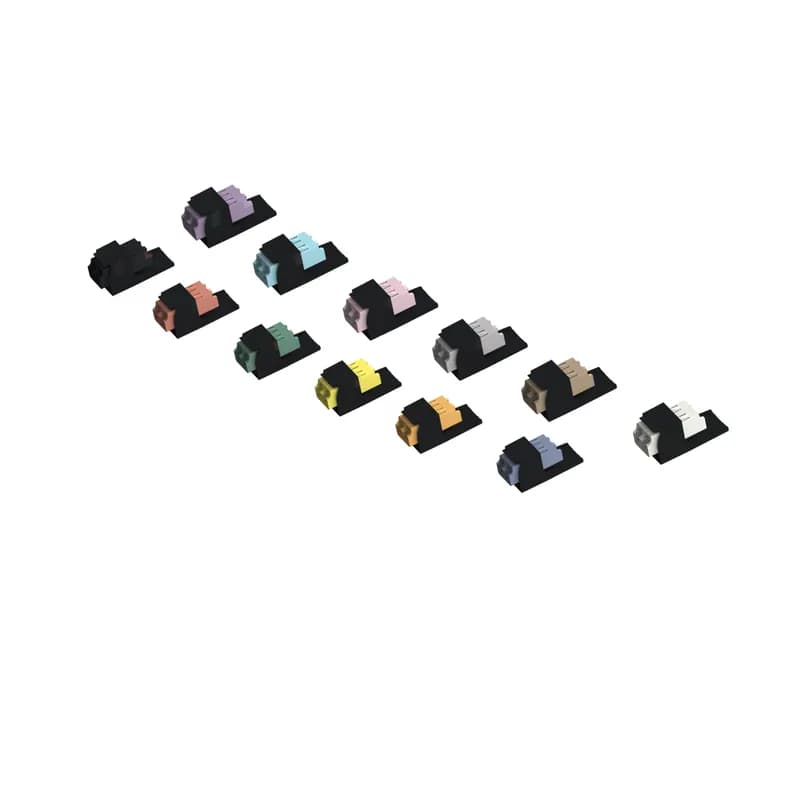

The Panduit CMDSRDLCZIW Mini-Com Duplex LC Adapter is a compact, Small Form Factor (SFF) fiber optic adapter designed for high-density network infrastructure. This adapter is TIA/EIA-605 FOCIS-10 compatible, ensuring broad interoperability with industry standards. It efficiently couples two LC duplex connectors within a single module space, maximizing panel real estate and optimizing cable management in data centers, enterprise networks, and industrial settings. The integrated panel retention clips facilitate secure and straightforward mounting, simplifying installation and reducing deployment time. For clear identification and organization, the adapter features a distinct red fiber adapter paired with an international white module, supporting universal application. Internally, it is equipped with zirconia split sleeves, a material known for its durability and precision, which contribute to low insertion loss and high return loss. These specifications are critical for maintaining signal integrity and ensuring reliable data transmission in high-speed fiber optic cabling systems. The CMDSRDLCZIW by Panduit offers a space-efficient, standards-compliant, and robust connectivity solution for demanding fiber optic applications.
  • Small Form Factor (SFF) design for high-density applications
  • TIA/EIA-605 FOCIS-10 compatible
  • Couples two LC duplex connectors in one module space
  • Integrated panel retention clips for secure mounting
  • Red fiber adapter and international white module with zirconia split sleeves

Specifications

Application
Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications.
Color
Red
Color*
Red
Fiber Type
OM4
Material
Zirconia Ceramic
Material
Zirconia
Mounting Type
Panel Retention Clips
Operating Temperature
140 F
Standard
RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements
Type
LC Adapter Module
Package Dimensions (L x W x H)
5 IN x 3.5 IN x 1 IN
Package Weight (Imperial)
0.035 lbs
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a red fiber adapter along with a black module and has zirconia split sleeves.

CMDSRDLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a red fiber adapter along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed B-Red on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

CMDBRDRDDLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed B-Red on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed B-Red on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.

CMDBRDRDDLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed B-Red on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a red fiber adapter along with an eletric ivory module and has zirconia split sleeves.

CMDSRDLCZEI

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a red fiber adapter along with an eletric ivory module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with an international white module and has zirconia split sleeves.

CMDSBLLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with a black module and has zirconia split sleeves.

CMDSBLLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed L-Light Brown on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

CMDLLBLBDLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed L-Light Brown on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed H-Aqua on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.

CMDHAQAQDLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed H-Aqua on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed F-Dark Blue on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

CMDFDBDBDLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed F-Dark Blue on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed K-Slate on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

CMDKIGIGDLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed K-Slate on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a violet fiber adapter along with a black module and has zirconia split sleeves.

CMDSVLLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a violet fiber adapter along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed J-Rose on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

CMDJRORODLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed J-Rose on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.

Frequently Asked Questions

What standards do LC fiber optic adapters meet?

LC fiber optic adapters are TIA/EIA-604 FOCIS-10 compatible and exceed TIA/EIA-568-B.3 requirements.

What material is used for the split sleeve?

The split sleeve material is Zirconia ceramic, which is required for singlemode applications.

What is the average insertion loss?

The average insertion loss for both multimode and singlemode is 0.1dB.

What is the return loss for singlemode?

Singlemode return loss is >40dB for SPC and >55dB for UPC connector polish performance.

What is the return loss for multimode?

Multimode return loss supports >20dB connector polish performance.

Where can Mini-Com adapter modules be used?

Mini-Com adapter modules are interchangeable within Mini-Com Outlets, Boxes, and Patch Panels.

What types of keyed adapters are available?

Adapters are available in Keyed to Keyed, Keyed to Non-keyed, and Standard (non-keyed to non-keyed) configurations.

What products are LC adapters compatible with?

LC Fiber Optic Adapters can be used with Mini-Com Modules, Patch Panels, and Surface Mount boxes.

What applications are LC adapters suitable for?

LC adapters are suitable for LAN, SAN, public networks, and fiber-to-the-desk applications.

How do LC adapters compare to SC adapters in density?

LC adapters with 1.25mm ferrules double the port density compared to SC adapters.

How to Install the CMDEISCZEI Fiber Adapter

This guide provides step-by-step instructions for installing the CMDEISCZEI fiber adapter, ensuring proper mounting and wiring for optimal performance.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors

  1. Mount the fiber adapter

    Secure the CMDEISCZEI fiber adapter to the designated mounting location using the provided mounting screws. Ensure it is level and firmly attached.

  2. Connect the fiber cables

    Insert the appropriate keyed or non-keyed fiber cables into the adapter ports. Ensure that the cables are fully seated and locked in place.

  3. Verify connections

    Use a multimeter to check the continuity of the connections. Ensure that there are no shorts or open circuits in the wiring.
