Contact for Pricing
Minimum Qty: 5
Multiplier: 1
*Contact for lower quantities*
Overview
- Small Form Factor (SFF) adapter for dual LC duplex connectors in one module space
- TIA/EIA-605 FOCIS-10 compliant for structured cabling system compatibility
- User side keyed L-Light Brown for clear identification, service side non-keyed
- Integrated panel retention clips for secure mounting
- Zirconia split sleeves for reliable fiber optic performance
Specifications
Application | Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications. |
Color | Brown/Black |
Color | Light Brown/Black |
Color | L-Light Brown/Black |
Color | Black |
Color* | Light Brown |
Connection Type | LC Duplex |
Fiber Type | OM4 |
Material | Zirconia Ceramic |
Material | Zirconia |
Mounting Type | Panel Retention Clips |
Mounting Type | Panel Mount with Integrated Retention Clips |
Mounting Type | Panel Mount |
Operating Temperature | 140 F |
Series | Mini-Com |
Size | Small Form Factor (SFF) |
Standard | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
Type | LC Keyed-NonKeyed Adapter Module |
Package Weight (Imperial) | 0.035 lbs |
CMDSLBLCZIW

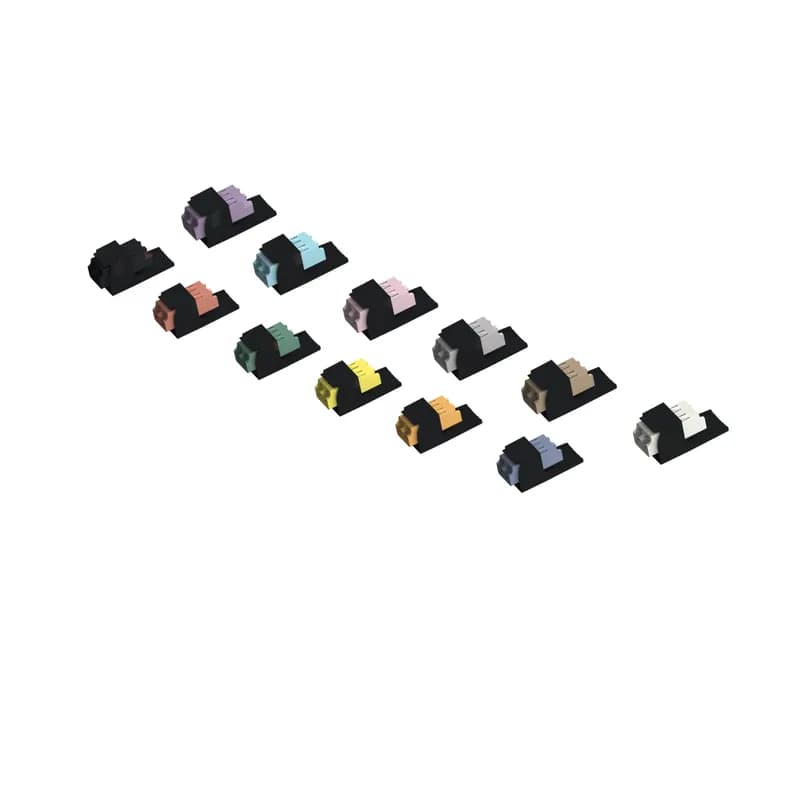

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a light brown fiber adapter along with an international white module and has zirconia split sleeves.
CMDLLBLBDLCZIW
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed L-Light Brown on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.
CMDLLBLCZBL
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed L-Light Brown fiber adapter along with a black module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.
CMDSLBLCZBL
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a light brown fiber adapter along with a black module and has zirconia split sleeves.
CMDLLBLCZBU
Module supplied with one LC (keyed L brown) SFF duplex fiber optic adapter with zirconia ceramic split sleeves, Blue.CMDLLBLCZEI
Module supplied with one LC (keyed L brown) SFF duplex fiber optic adapter with zirconia ceramic split sleeves, Electric Ivory.CMDLLBLCZAW
Module supplied with one LC (keyed L brown) SFF duplex fiber optic adapter with zirconia ceramic split sleeves, Arctic White.
CMDLLBLCZIW
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed L-Light Brown fiber adapter along with an international white module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.
CMDSBLLCZIW
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with an international white module and has zirconia split sleeves.
CMDSBLLCZBL
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a black fiber adapter along with a black module and has zirconia split sleeves.
CMDSRDLCZBL
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a red fiber adapter along with a black module and has zirconia split sleeves.
CMDHAQAQDLCZIW
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed H-Aqua on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.Frequently Asked Questions
What standards do LC fiber optic adapters meet?
LC fiber optic adapters are TIA/EIA-604 FOCIS-10 compatible and exceed TIA/EIA-568-B.3 requirements.
What material is used for the split sleeve?
The split sleeve material is Zirconia ceramic, which is required for singlemode applications.
What is the average insertion loss?
The average insertion loss for both multimode and singlemode is 0.1dB.
What is the return loss for singlemode?
Singlemode return loss is >40dB for SPC and >55dB for UPC connector polish performance.
What is the return loss for multimode?
Multimode return loss supports >20dB connector polish performance.
Where can Mini-Com adapter modules be used?
Mini-Com adapter modules are interchangeable within Mini-Com Outlets, Boxes, and Patch Panels.
What types of keyed adapters are available?
Adapters are available in Keyed to Keyed, Keyed to Non-keyed, and Standard (non-keyed to non-keyed) configurations.
What products are LC adapters compatible with?
LC Fiber Optic Adapters can be used with Mini-Com Modules, Patch Panels, and Surface Mount boxes.
What applications are LC adapters suitable for?
LC adapters are suitable for LAN, SAN, public networks, and fiber-to-the-desk applications.
How do LC adapters compare to SC adapters in density?
LC adapters with 1.25mm ferrules double the port density compared to SC adapters.
