Panduit CMDCGRGRDLCZBL - The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed C-Green on the user side and Non-keyed on the service side along with a black module and has zirconia split sleeves.
Panduit

CMDCGRGRDLCZBL

UPC: 613056861046

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsSpecification Sheet

Contact for Pricing

Minimum Qty: 5

Multiplier: 1

*Contact for lower quantities*

Overview

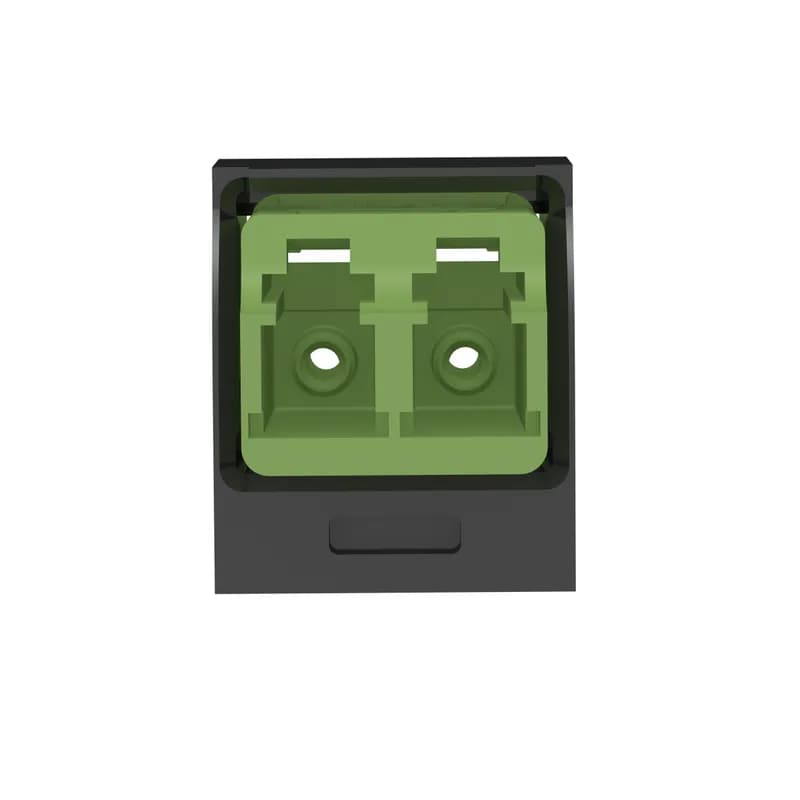

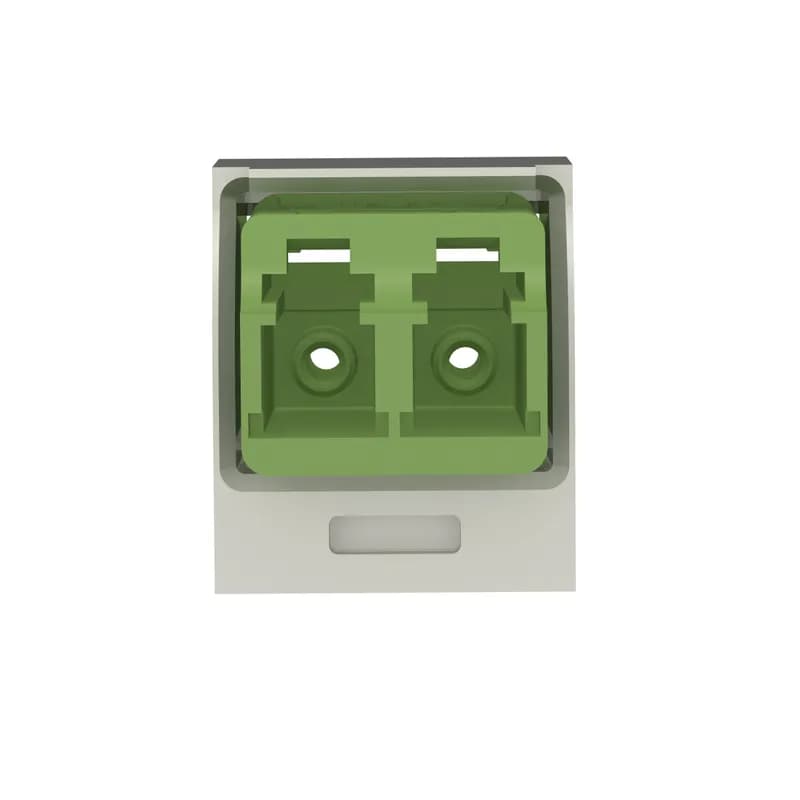

The Panduit Mini-Com Duplex LC Adapter (SKU: CMDCGRGRDLCZBL) is a Small Form Factor (SFF) adapter designed for efficient fiber optic connectivity. This adapter couples two LC duplex connectors within a single module space, optimizing density in network infrastructure. It features integrated panel retention clips for secure mounting and is TIA/EIA-605 FOCIS-10 compatible, ensuring broad interoperability with industry standards. The fiber adapter is specifically keyed 'C-Green' on the user side, providing clear identification and preventing misconnections, while the service side remains non-keyed for flexibility. The module itself is black, offering a discreet aesthetic. Internally, it utilizes zirconia split sleeves, a material known for its durability and precision in maintaining fiber alignment, crucial for signal integrity. Manufactured in the US, this adapter is built for reliable performance in various data communication environments. Its design focuses on simplifying fiber management and ensuring consistent, high-quality connections for your network backbone.
  • Couples two LC duplex connectors in one module space
  • Small Form Factor (SFF) design for density
  • Integrated panel retention clips for secure mounting
  • TIA/EIA-605 FOCIS-10 compatible
  • C-Green keyed user side, non-keyed service side fiber adapter with zirconia split sleeves

Specifications

Application
Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications.
Color*
Green
Fiber Type
OM4
Material
Zirconia Ceramic
Operating Temperature
140 F
Standard
RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements
Type
LC Keyed-NonKeyed Adapter Module
Package Dimensions (L x W x H)
5 IN x 3.5 IN x 1 IN
Package Weight (Imperial)
0.035 lbs

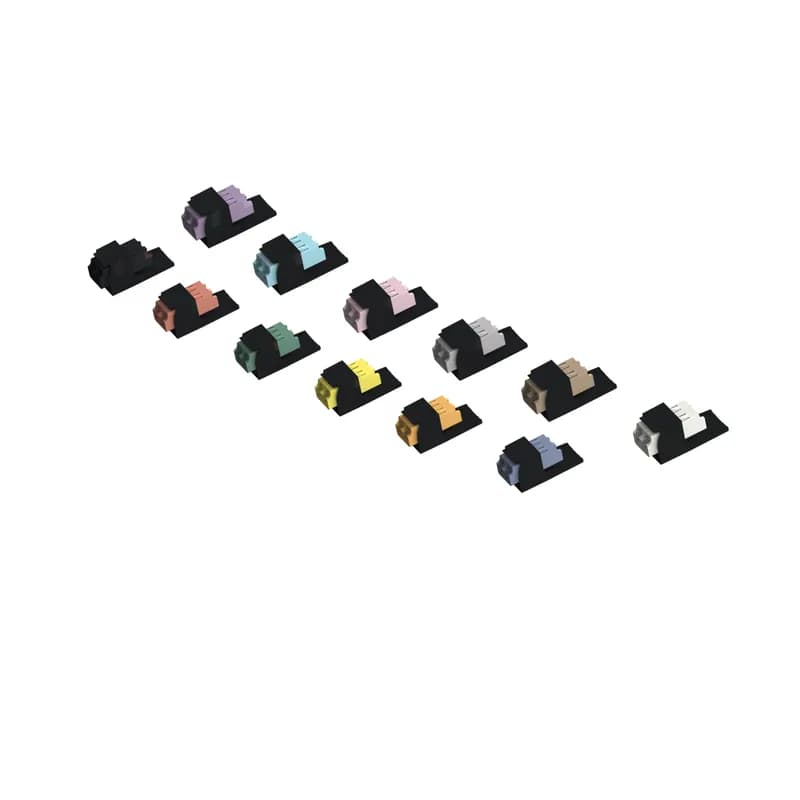

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a green fiber adapter along with an international white module and has zirconia split sleeves.

CMDSGRLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a green fiber adapter along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed C-Green on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.

CMDCGRGRDLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a fiber adapter that is Keyed C-Green on the user side and Non-keyed on the service side along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a green fiber adapter along with an eletric ivory module and has zirconia split sleeves.

CMDSGRLCZEI

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a green fiber adapter along with an eletric ivory module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a green fiber adapter along with a black module and has zirconia split sleeves.

CMDSGRLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a green fiber adapter along with a black module and has zirconia split sleeves.
Module supplied with one LC (keyed W mint) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.

CMDWMILCZBL

Module supplied with one LC (keyed W mint) SFF duplex fiber optic adapter with zirconia ceramic split sleeves.
The Mini-Com Multimode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features an apc/green SC simplex fiber adapter along with a black module and has zirconia split sleeves.

CMSAGSCZBL

The Mini-Com Multimode Simplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connectors in one module space and features an apc/green SC simplex fiber adapter along with a black module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features an APC green fiber adapter along with an international white module and has zirconia split sleeves.

CMDSAGLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features an APC green fiber adapter along with an international white module and has zirconia split sleeves.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed C-Green fiber adapter along with an international white module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.

CMDCGRLCZIW

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features a Keyed C-Green fiber adapter along with an international white module and has zirconia split sleeves. Keyed adapters are part of a keyed cabling systems that provides an additional layer of physical security, mating only with matching keyed components.

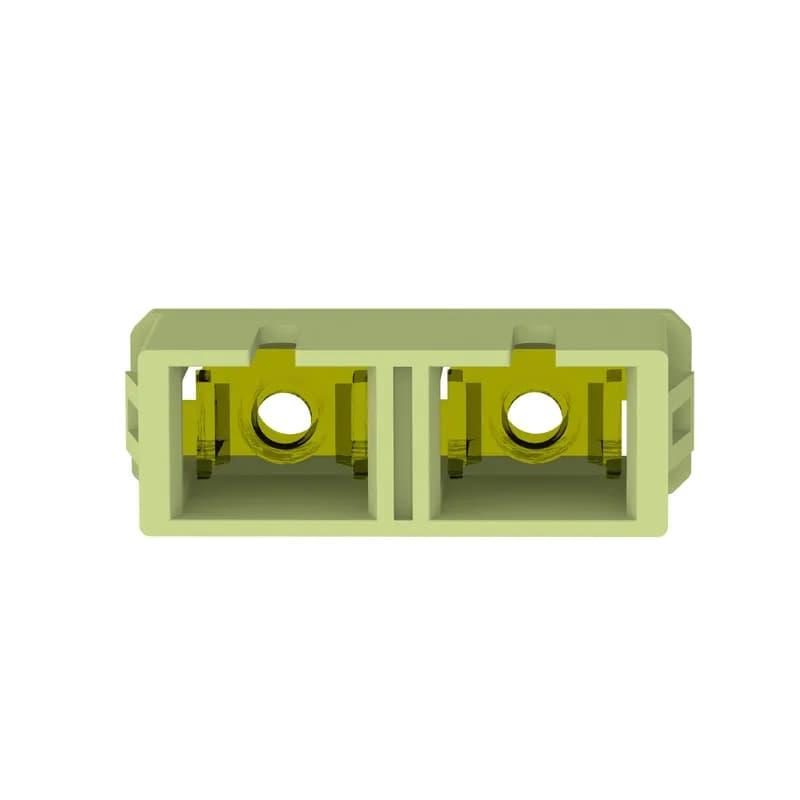

The SC duplex adapter connects two SC connectors in one module space and features a lime, multimode fiber adapter and has zirconia split sleeves. This part (ending in -L) is a pack of 50 adapters.

FADSCZLM-L

The SC duplex adapter connects two SC connectors in one module space and features a lime, multimode fiber adapter and has zirconia split sleeves. This part (ending in -L) is a pack of 50 adapters.
The SC simplex adapter connects two SC connectors in one module space and features a lime, multimode fiber adapter and has zirconia split sleeves. This part (ending in -L) is a pack of 50 adapters.

FASSCZLM-L

The SC simplex adapter connects two SC connectors in one module space and features a lime, multimode fiber adapter and has zirconia split sleeves. This part (ending in -L) is a pack of 50 adapters.
The SC/APC simplex adapter connects two SC/APC connector pairs in one module space and features an APC green, singlemode fiber adapter and has zirconia split sleeves. This part (ending in -L) is a pack of 50 adapters.

FASSCZAG-L

The SC/APC simplex adapter connects two SC/APC connector pairs in one module space and features an APC green, singlemode fiber adapter and has zirconia split sleeves. This part (ending in -L) is a pack of 50 adapters.
The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features an APC green fiber adapter along with a black module and has zirconia split sleeves.

CMDSAGLCZBL

The Mini-Com Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It couples two LC duplex connectors in one module space and features an APC green fiber adapter along with a black module and has zirconia split sleeves.

Frequently Asked Questions

What standards do LC fiber optic adapters meet?

LC fiber optic adapters are TIA/EIA-604 FOCIS-10 compatible and exceed TIA/EIA-568-B.3 requirements.

What material is used for the split sleeve?

The split sleeve material is Zirconia ceramic, which is required for singlemode applications.

What is the average insertion loss?

The average insertion loss for both multimode and singlemode is 0.1dB.

What is the return loss for singlemode?

Singlemode return loss is >40dB for SPC and >55dB for UPC connector polish performance.

What is the return loss for multimode?

Multimode return loss supports >20dB connector polish performance.

Where can Mini-Com adapter modules be used?

Mini-Com adapter modules are interchangeable within Mini-Com Outlets, Boxes, and Patch Panels.

What types of keyed adapters are available?

Adapters are available in Keyed to Keyed, Keyed to Non-keyed, and Standard (non-keyed to non-keyed) configurations.

What products are LC adapters compatible with?

LC Fiber Optic Adapters can be used with Mini-Com Modules, Patch Panels, and Surface Mount boxes.

What applications are LC adapters suitable for?

LC adapters are suitable for LAN, SAN, public networks, and fiber-to-the-desk applications.

How do LC adapters compare to SC adapters in density?

LC adapters with 1.25mm ferrules double the port density compared to SC adapters.
