Contact for Pricing
Overview
- Packaged solution for stranded copper conductors (Size 2/0)
- SBC2/0: Long barrel butt splice with internal wire stops and tin plating
- CVRSBC2/0: Two-hole long barrel with window lug and tin plating
- UL Listed and CSA Certified to 35 kV and 90°C
- Color-coded barrels for precise crimp die selection (Panduit and competitor dies)
Specifications
Standard | UL94V-0 flame rating for insulating cover, cULus Listed to UL 486A-486B |
Type | Mechanical Lug |
Voltage Rating | 35 kV |
Width | NA In. |
Package Dimensions (L x W x H) | 7 IN x 5 IN x 0.3 IN |
Package Weight (Imperial) | 0.08 lbs |

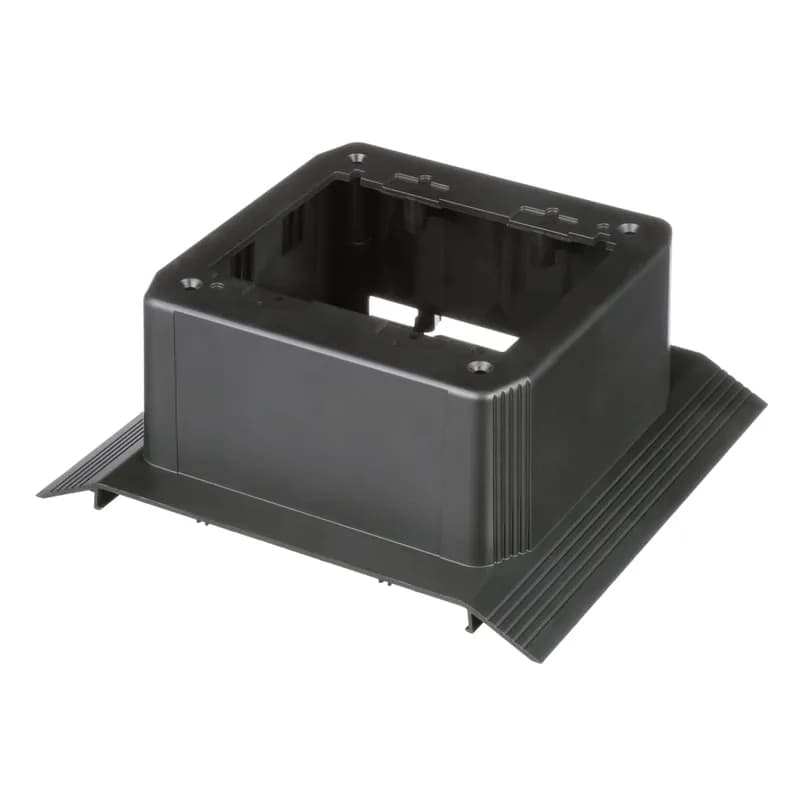

AFR4JB2SOS
The above floor raceway junction box is a fitting designed for use with the above floor raceway channel AFR4BCBL6. It is a double-gang box used to house any two combinations of outlets or switches. It is office slate.

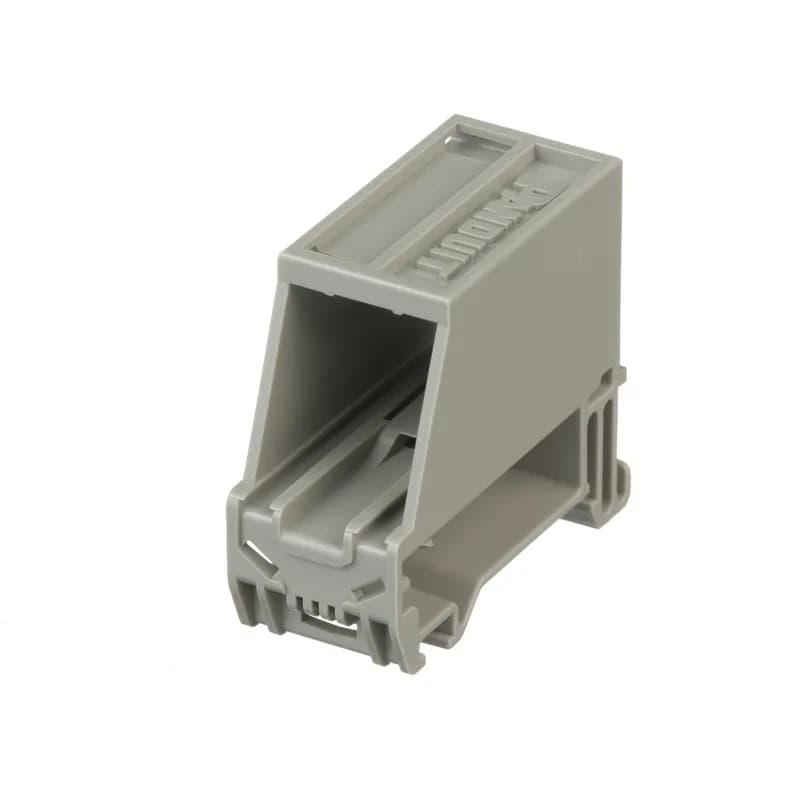

CADIN1IG
The Mini-Com DIN Rail Mount Adapter mounts to standard 35mm DIN rails and accepts any single port Mini-Com Module. It is international gray and includes a label and label cover.
AFR4CCOS
The above floor raceway coupler fitting joins multiple pieces of above floor raceway together, creating a continuous run of raceway. The structurally engineered design is ADA compliant, tamper resistant, and made of rigid PVC. It is designed for use with the AFR4BCOS6 channel and is Office Slate.

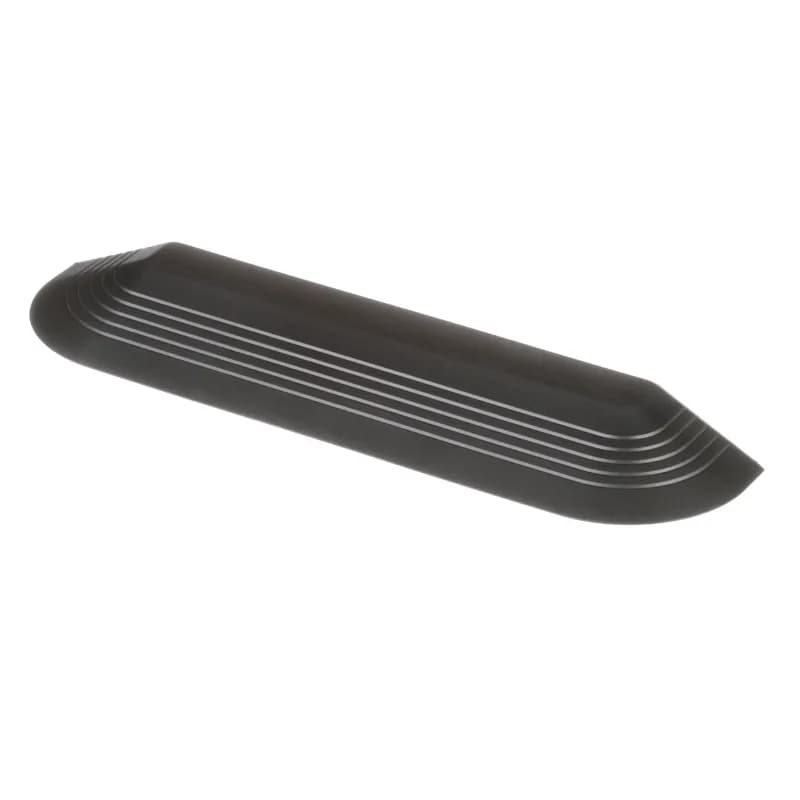

AFR4ECOS
The above floor raceway end cap fitting is used to cap the end of the raceway run. The structurally engineered design is ADA compliant, tamper resistant, and made of rigid PVC. It is designed for use with the AFR4BCOS6 channel and is office slate.

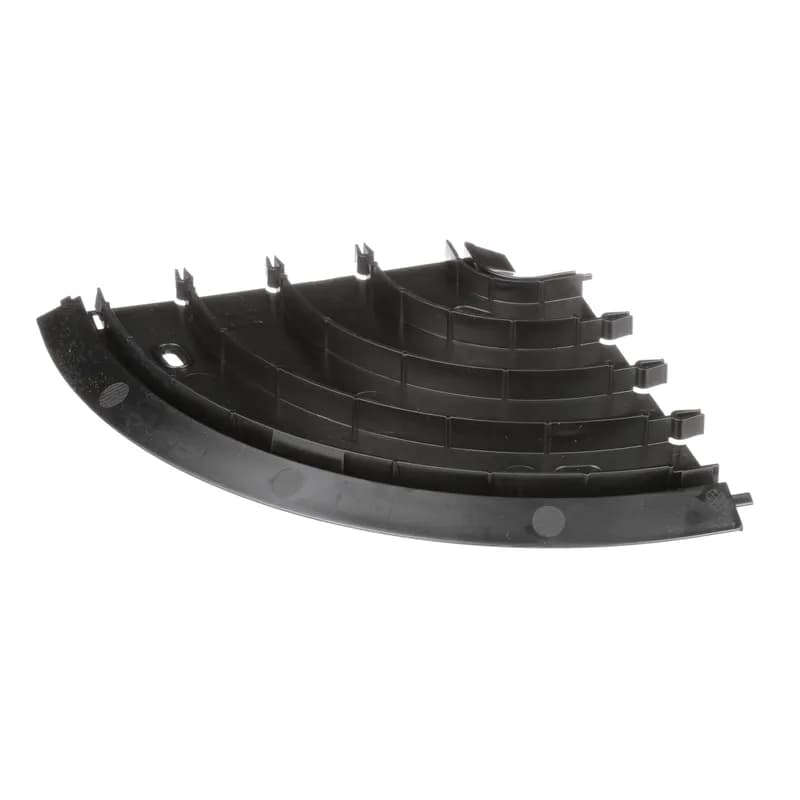

AFR4RAOS
The above floor raceway right angle fitting is designed for making right-angle turns from the above floor raceway channel AFR4BCBL6 while maintaining a minimum 1 inch bend radius. It features four channels for multiple runs of cables, is ADA Compliant and is office slate.

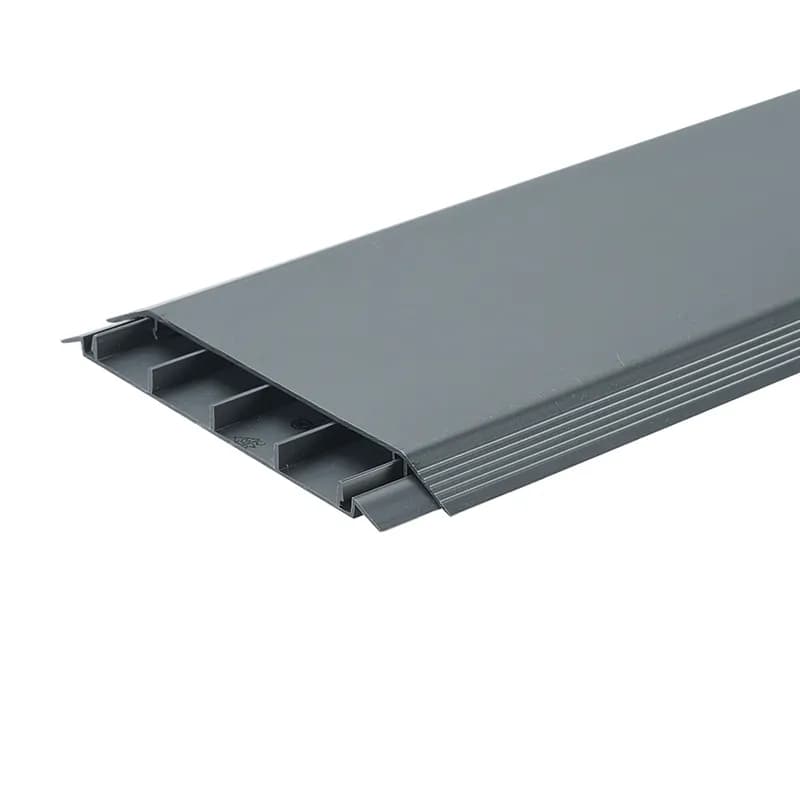

AFR4BCOS6
The above floor raceway is a non-metallic, 4 channel surface raceway used to route, protect, and conceal data, voice, video, fiber optic and power cabling over floors. The structurally engineered design is ADA compliant, tamper resistant and made of rigid PVC. It is 6 feet long and is Office Slate.

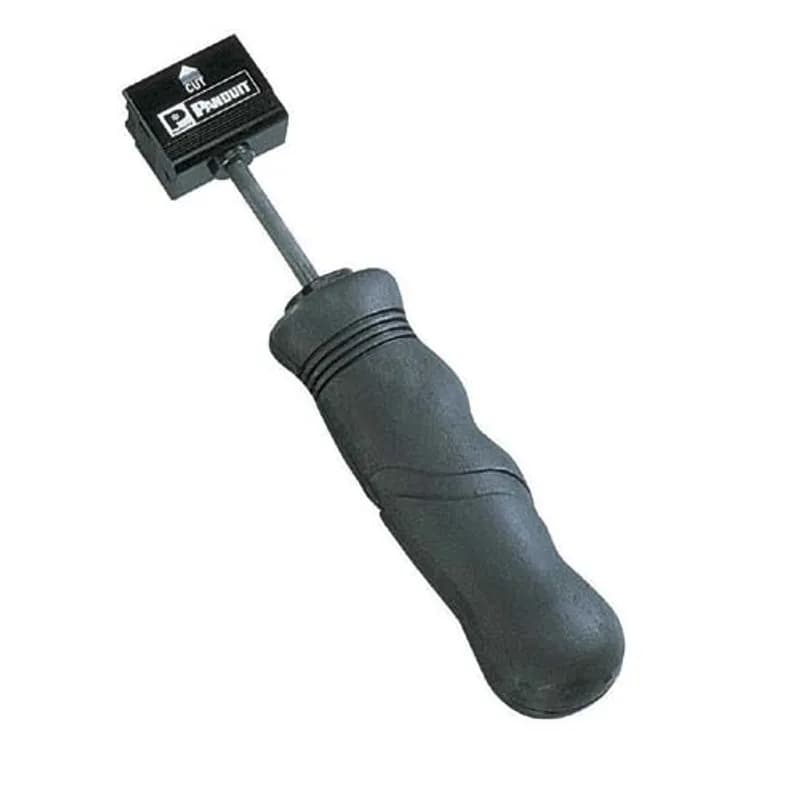

PDT110M
The Five Pair Punchdown Tool is for use with Pan-Punch 110-style Bases, Connectors and Systems.
PDH110M
The Replacement Head Assembly For Five Pair Punchdown Tool is for use with Pan-Punch 110-style Bases, Connectors and Systems.PDB110M
The Replacement Blade For Five Pair Punchdown Tool is for use with Pan-Punch 110-style Bases, Connectors and Systems.

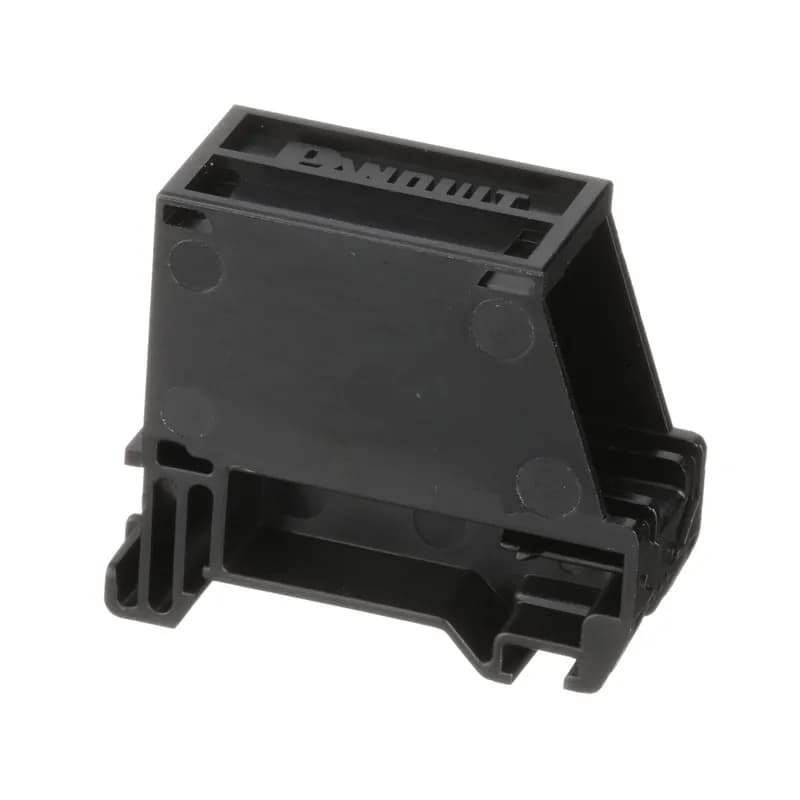

CADIN1BL
The Mini-Com DIN Rail Mount Adapter mounts to standard 35mm DIN rails and accepts any single port Mini-Com Module. It is black and includes a label and label cover.
AFR4CCIW
The above floor raceway coupler fitting joins multiple pieces of above floor raceway together, creating a continuous run of raceway. The structurally engineered design is ADA compliant, tamper resistant, and made of rigid PVC. It is designed for use with the AFR4BCIW6 channel and is international white.Frequently Asked Questions about Panduit
