Contact for Pricing
Minimum Qty: 10
Multiplier: 1
*Contact for lower quantities*
Overview
- Cat 6A UTP RJ45 Angled TG Jack Module
- Terminates 4-pair, 22-26 AWG twisted pair cable
- Improves cable routing in tight spaces
- 100% factory tested to exceed industry standards
- TG style termination eliminates need for termination tool
Specifications
Cable Entry | T568A/T568B |
Color | Electric Ivory |
Depth | 1.73 In. |
Model | Mini-Com |
Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS C |
Type | Jack Module |
Width | 0.62 In. |
Package Dimensions (L x W x H) | 4.5 IN x 3.5 IN x 0.5 IN |
Package Weight (Imperial) | 0.26 lbs |

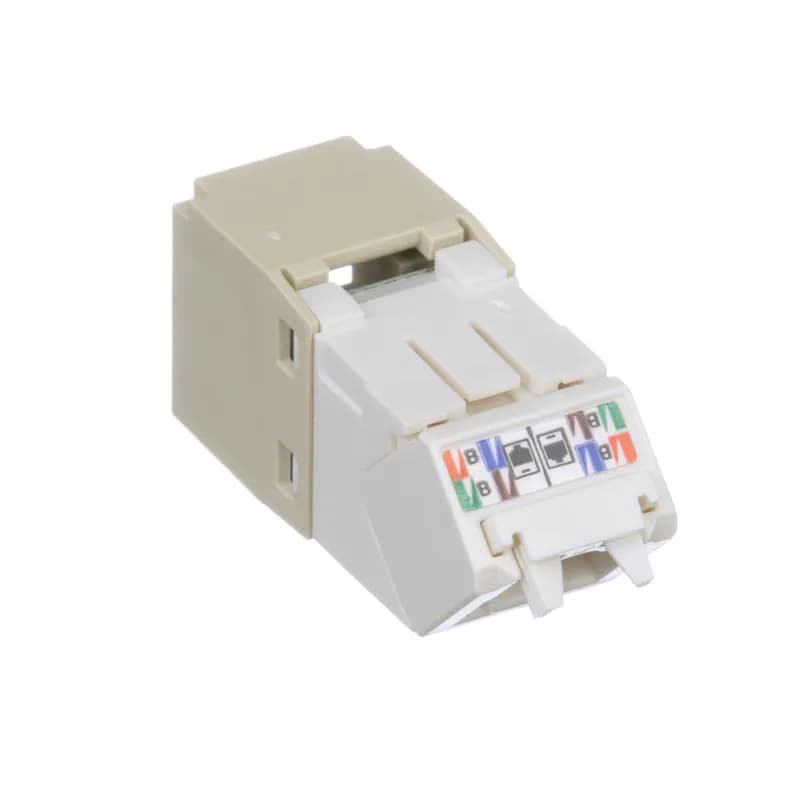

CJUD688TGEI
The Mini-Com Cat 6 UTP RJ45 Up/Down 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJLR688TGEI
The Mini-Com Cat 6 UTP RJ45 Left/Right 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

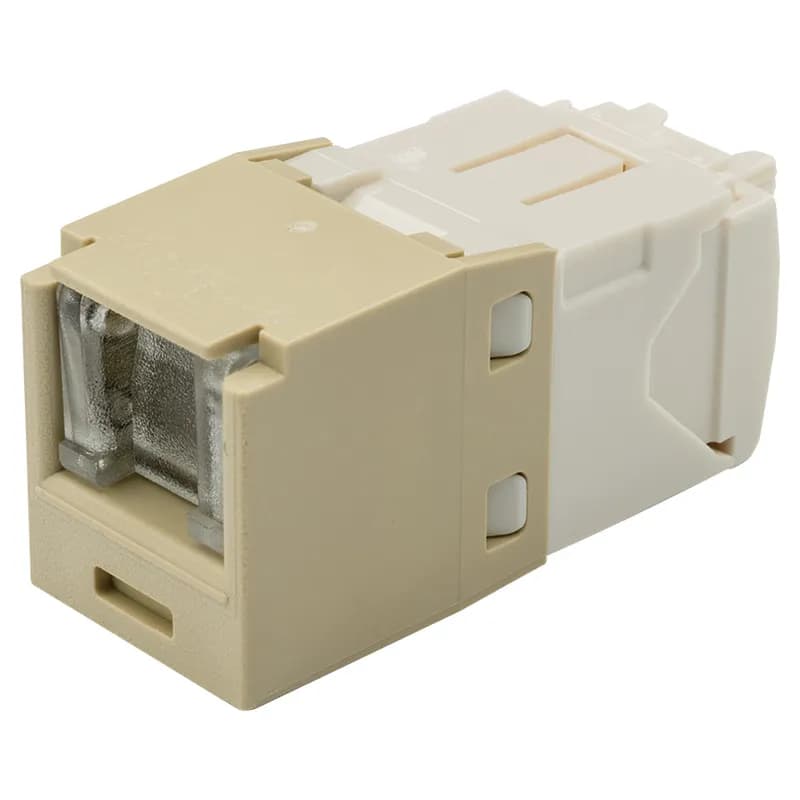

CJH688TGEI
The Mini-Com Cat 6 UTP RJ45 Spring-Shuttered TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. The integrated spring-shuttered door keeps dust and debris out of unmated RJ45 jack modules. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJ688TGEI-24
The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is electric ivory and includes 24 per package.

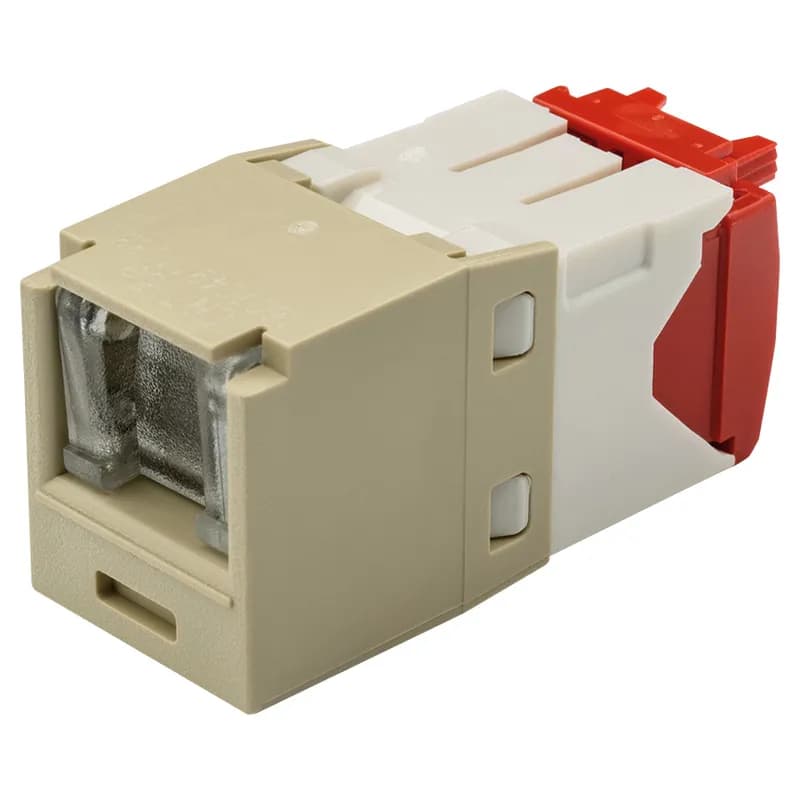

CJH5E88TGEI
The Mini-Com Cat 5e UTP RJ45 Spring-Shuttered TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. The integrated spring-shuttered door keeps dust and debris out of unmated RJ45 jack modules. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

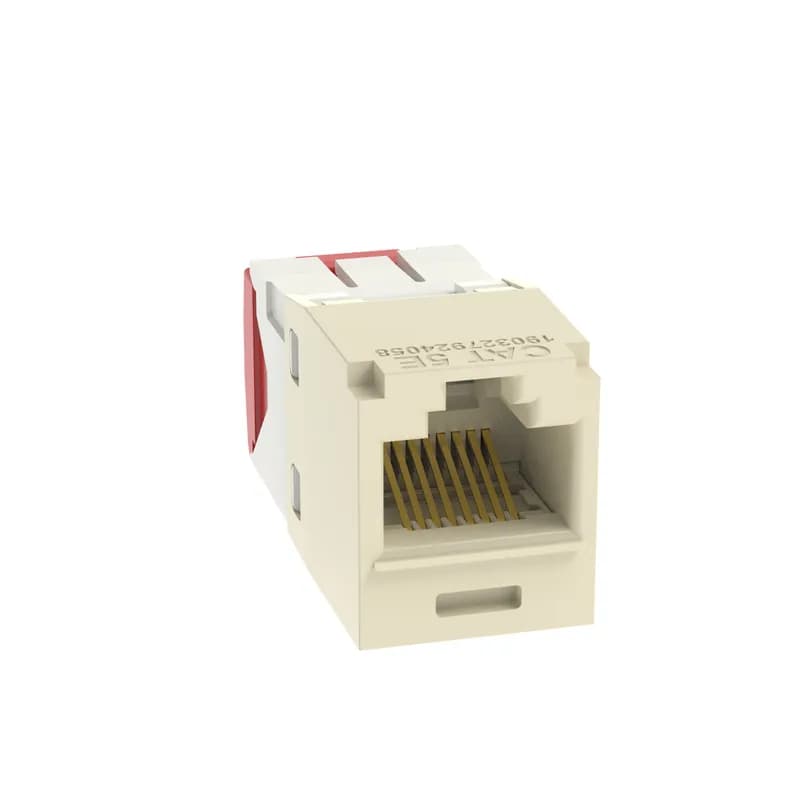

CJ5E88TGEI
The Mini-Com Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Electric Ivory.
CJ688TGEI
The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is electric ivory.Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
Does the module require a punchdown tool for installation?
No, the module does not require a punchdown tool for installation.
What standards does the module comply with?
The module complies with ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Standards.
Is the module RoHS compliant?
Yes, the module is RoHS compliant.
What cable types are compatible with the jack module?
The jack module is compatible with 22 AWG - 26 AWG solid or stranded cable.
What is the maximum cable length for certified performance?
The maximum cable length for certified performance is up to 100 meters.
What is the PoE support for this module?
The module supports Power over Ethernet (PoE) up to 100 watts.
What is the maximum overall cable diameter?
The maximum overall cable diameter is 0.2 in. to 0.33 in. (5.1mm - 8.4mm).
What is the certification for electrical performance?
Each jack module is 100% performance tested to ensure electrical performance requirements.
What is the durability rating for mating cycles?
The module is rated for over 2500 mating cycles.
How to Install the CJUDCAPIW-X Modular Jack
This guide provides step-by-step instructions for installing the CJUDCAPIW-X modular jack, including wiring and configuration.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Prepare the cable
Ensure the strain relief is fully retracted before inserting the cable. Cut the cable to the desired length and strip the insulation from the ends.
- Insert the cable into the wire cap
Bend the wires slightly to ease insertion into the wire cap. Ensure that the cable is fully inserted into the wire cap before proceeding.
- Maintain orientation
Keep the orientation of the wire cap consistent with the jack throughout the termination process. Follow the T568A or T568B wiring standard as required.
- Terminate the connection
Terminate the conductors according to the selected wiring standard. Ensure that the conductors are properly seated and secured within the wire cap.
- Verify the installation
Use a multimeter to test the connections for continuity and proper wiring. Ensure that all connections are secure and functioning correctly.
