Overview
- Terminates 4-pair, 22-26 AWG twisted pair cable
- 45° angled design improves cable routing in tight spaces
- TG style termination eliminates need for termination tool
- 100% factory tested to exceed industry standards
- Individually serialized for traceability; compatible with Mini-Com systems
Specifications
Cable Entry | T568A/T568B |
Color | International Gray |
Depth | 1.75 In. |
Model | Mini-Com |
Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS C |
Type | Jack Module |
Width | 0.71 In. |
Package Dimensions (L x W x H) | 4.5 IN x 3.5 IN x 0.5 IN |
Package Weight (Imperial) | 0.26 lbs |
CADIN1IG-S

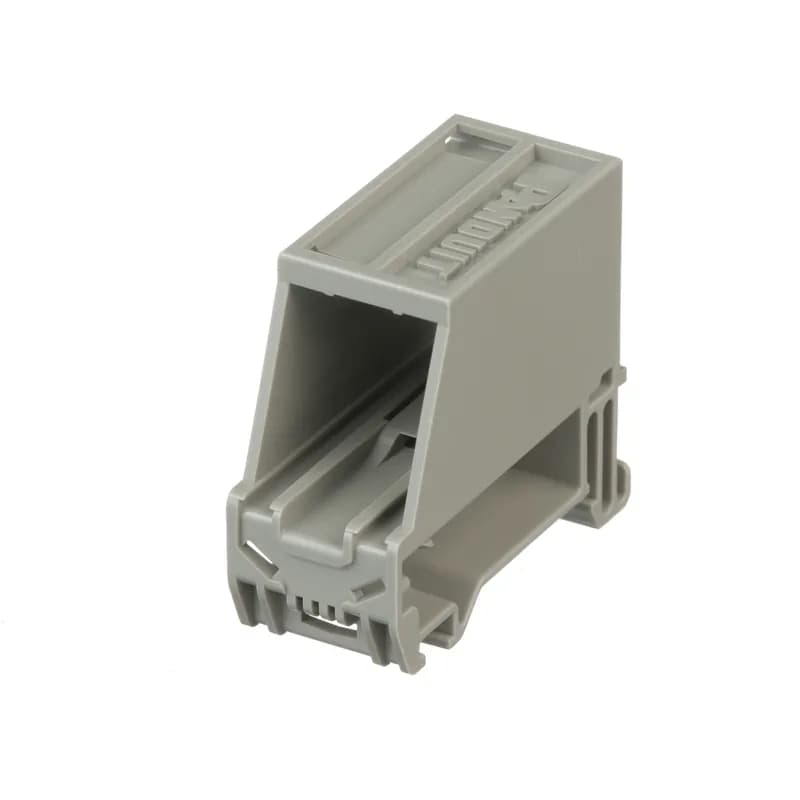

The shielded Mini-Com DIN Shielded Rail Mount Adapter mounts to a standard 35mm DIN rail. It accepts any single port Mini-Com Module which snap in and out for easy moves, adds, and changes. Color: International Gray
CJLR688TGIG
The Mini-Com Cat 6 UTP RJ45 Left/Right 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJUD688TGIG
The Mini-Com Cat 6 UTP RJ45 Up/Down 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJUD6X88TGIG
The Mini-Com Cat 6A UTP RJ45 Up/Down 45 Angled TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJT6X88TGIG
The Mini-Com Cat 6A UTP 28-30 AWG RJ45 TG Jack Module is designed to terminate 4-pair, 28-30 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJH6X88TGIG
The Mini-Com Cat 6A UTP RJ45 Spring-Shuttered TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. The integrated spring-shuttered door keeps dust and debris out of unmated RJ45 jack modules. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJ6X88TGIG
The Mini-Com Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is international gray.
CJ6X88TGIG-C
The Mini-Com Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
CJ6X88TGIG-24
The Mini-Com Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is international gray and includes 24 per package.Frequently Asked Questions
What is the operating temperature range?
The operating temperature range is 14°F to 167°F (-10°C to 75°C).
Does the module require a punchdown tool for installation?
No, the module does not require a punchdown tool for installation.
What standards does the module comply with?
The module complies with ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Standards.
Is the module RoHS compliant?
Yes, the module is RoHS compliant.
What cable types are compatible with the jack module?
The jack module is compatible with 22 AWG - 26 AWG solid or stranded cable.
What is the maximum cable length for certified performance?
The maximum cable length for certified performance is up to 100 meters.
What is the PoE support for this module?
The module supports Power over Ethernet (PoE) up to 100 watts.
What is the maximum overall cable diameter?
The maximum overall cable diameter is 0.2 in. to 0.33 in. (5.1mm - 8.4mm).
What is the certification for electrical performance?
Each jack module is 100% performance tested to ensure electrical performance requirements.
What is the durability rating for mating cycles?
The module is rated for over 2500 mating cycles.
