Panduit CD35-36SL-QY - Two-hole, copper, single barrel, straight floating tongue lug, slotted screw, #14 - #6 AWG, 3/16 (4.8mm) stud hole.
Panduit

CD35-36SL-QY

UPC: 074983921904

Documents & Media
Technical DrawingFull Engineering Drawing

Contact for Pricing

Minimum Qty: 50

Multiplier: 1

*Contact for lower quantities*

Overview

The Panduit CD35-36SL-QY is a high-quality, two-hole mechanical lug designed for reliable wire termination in electrical infrastructure applications. Manufactured by Panduit, this lug features a single barrel construction made from high-strength electrolytic copper, ensuring excellent electrical conductivity and mechanical performance. It is specifically engineered to accommodate a wide wire range, from #14 AWG to #6 AWG stranded copper conductors, minimizing inventory requirements for installers. The lug's straight floating tongue design, combined with a slotted screw, facilitates easy and secure connection to equipment with a 3/16" (4.8mm) stud hole. The barrel is serrated internally to provide superior wire pullout strength, guaranteeing a durable and long-lasting termination. The plated fillister head steel set screw ensures a high-strength, durable electrical contact between the conductor and the connector. This Panduit lug is cULus listed, indicating compliance with safety standards for use up to 600V and temperature rated to 90°C. Its robust construction and precise engineering make it suitable for various industrial and commercial electrical installations where dependable wire termination is critical. The CD35-36SL-QY is manufactured in the USA, underscoring a commitment to quality and domestic production. For optimal performance, ensure proper crimping with compatible tools and dies as specified by Panduit. The product's dimensions include a tongue width of 0.38" (9.6mm), tongue thickness of 0.05" (1.2mm), an overall length of 1.08" (27.4mm), and an overall height of 0.39" (9.9mm). The standard package quantity is 100 units.
  • High-strength electrolytic copper construction for premium electrical and mechanical performance.
  • Accommodates wire range of #14 - #6 AWG stranded copper conductors.
  • Features a 3/16" (4.8mm) stud hole and a straight floating tongue design.
  • Serrated barrel for superior wire pullout strength and durable electrical contact.
  • cULus listed for use up to 600V and temperature rated to 90°C.

Specifications

Amperage Rating
50 A
Conductor Range (Main/Primary)
#14 AWG - #6 AWG, (2) #10 AWG, (2) #12 AWG, (2) #14 AWG, (1) #10 AWG with (1) #12 AWG, (1) #12 AWG with (1) #14 AWG
Connection Type
Lug
Current Rating
#14 - #6 AWG
Material
Copper
Material
Other
Mounting Type
Two-Hole
Number Of Mounting Holes
NA
Number Of Ports
NA
Size
3/16 (4.8mm) stud hole
Type
Mechanical Connectors - Lugs
Voltage Rating
NA
Package Dimensions (L x W x H)
4.4 IN x 3.2 IN x 2.55 IN
Package Weight (Imperial)
0.775 lbs

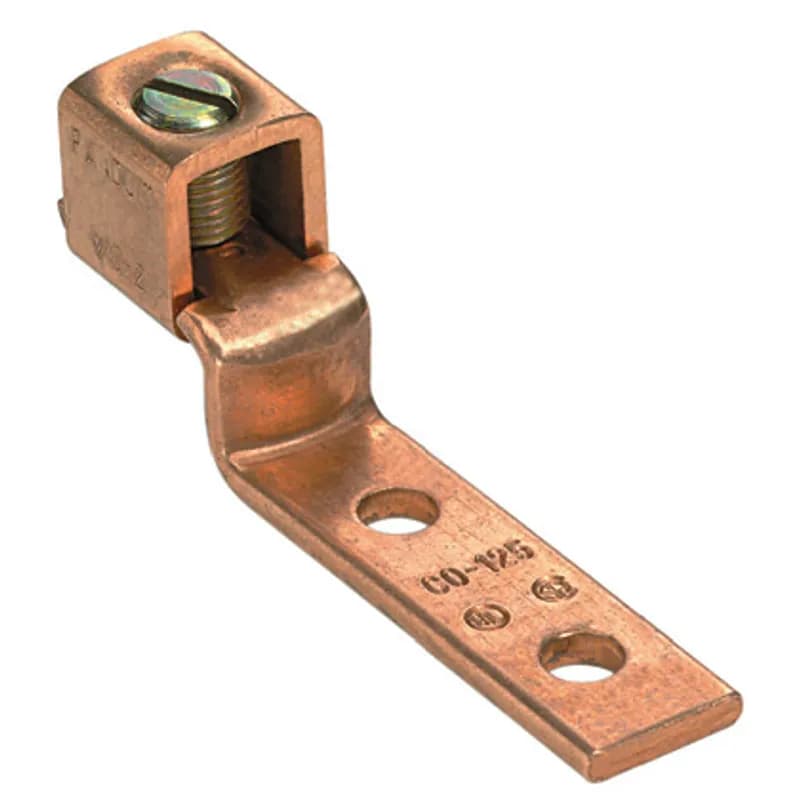

Two-hole, copper, single barrel, offset floating tongue lug, slotted screw, #8 - #2 AWG, 1/4 (6.4mm) stud hole.

CO70-14SL-QY

Two-hole, copper, single barrel, offset floating tongue lug, slotted screw, #8 - #2 AWG, 1/4 (6.4mm) stud hole.
Two-hole, aluminum, single barrel lug, type LAMB, NEMA hole sizes and spacing, 500 kcmil - 1000 kcmil, 1/2 (12.7mm) stud hole.

LAMLB1000-12-3

Two-hole, aluminum, single barrel lug, type LAMB, NEMA hole sizes and spacing, 500 kcmil - 1000 kcmil, 1/2 (12.7mm) stud hole.
One-hole, copper, single barrel, offset floating tongue lug, #14 - #10 AWG, 1/8 (3.2mm) stud hole.

CB25-18-CY

One-hole, copper, single barrel, offset floating tongue lug, #14 - #10 AWG, 1/8 (3.2mm) stud hole.
# 12 AWG Stranded 8", Flanged Spade Terminal for use with #10-32 screw , Stripped 5/8"

SGPS12-8FT-L2

# 12 AWG Stranded 8", Flanged Spade Terminal for use with #10-32 screw , Stripped 5/8"

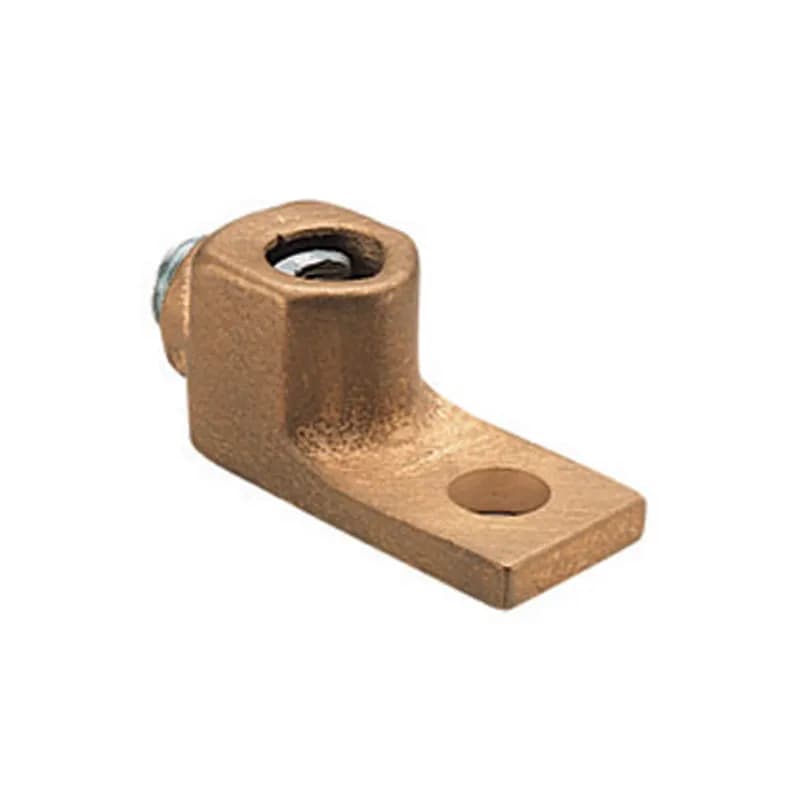

One-hole, copper, 90 single barrel lug, straight tongue, #4 SOL - #1 STR, 1/4 (6.4mm) stud hole.

HLA8-1-90-X

One-hole, copper, 90 single barrel lug, straight tongue, #4 SOL - #1 STR, 1/4 (6.4mm) stud hole.
Two-hole, copper, single barrel, straight tongue lug with internal pressure plate, #4 SOL - #1 STR, 1/4 (6.4mm) stud hole.

HL8-2-X

Two-hole, copper, single barrel, straight tongue lug with internal pressure plate, #4 SOL - #1 STR, 1/4 (6.4mm) stud hole.

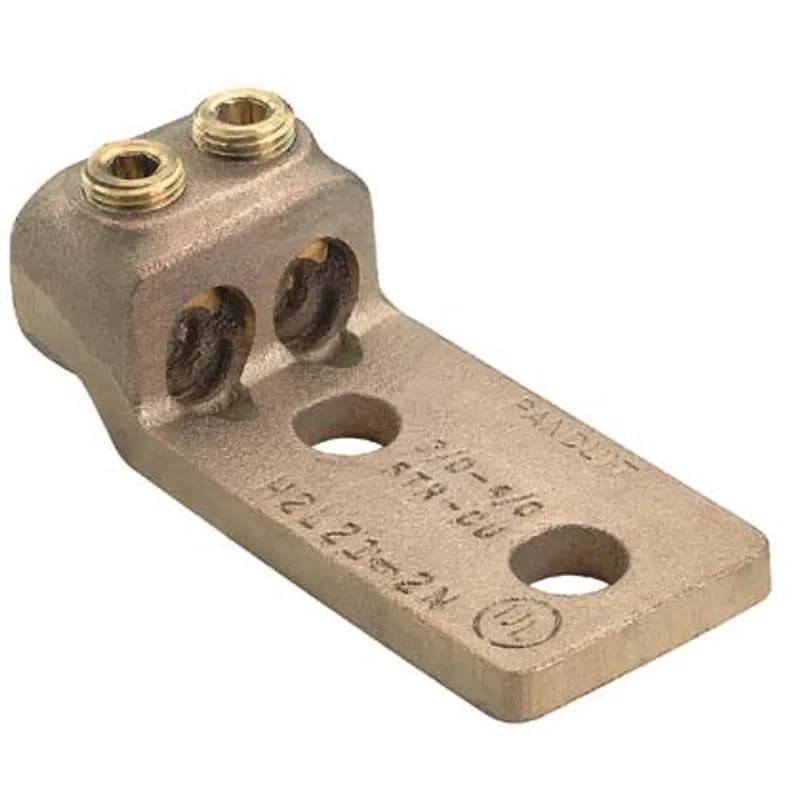

Two-hole, copper, two barrel lug, straight tongue, NEMA hole sizes and spacing, #1 STR - 2/0 STR, 1/2 (12.7mm) stud hole.

H2L13-2N-2

Two-hole, copper, two barrel lug, straight tongue, NEMA hole sizes and spacing, #1 STR - 2/0 STR, 1/2 (12.7mm) stud hole.
10 AWG Solid 9" GSH Screw, Stripped 1"

SGPL10-9S-L

10 AWG Solid 9" GSH Screw, Stripped 1"
Two-set screw splice with internal pressure plate, copper, type HC, #1 STR - 2/0 STR.

HC13-3

Two-set screw splice with internal pressure plate, copper, type HC, #1 STR - 2/0 STR.

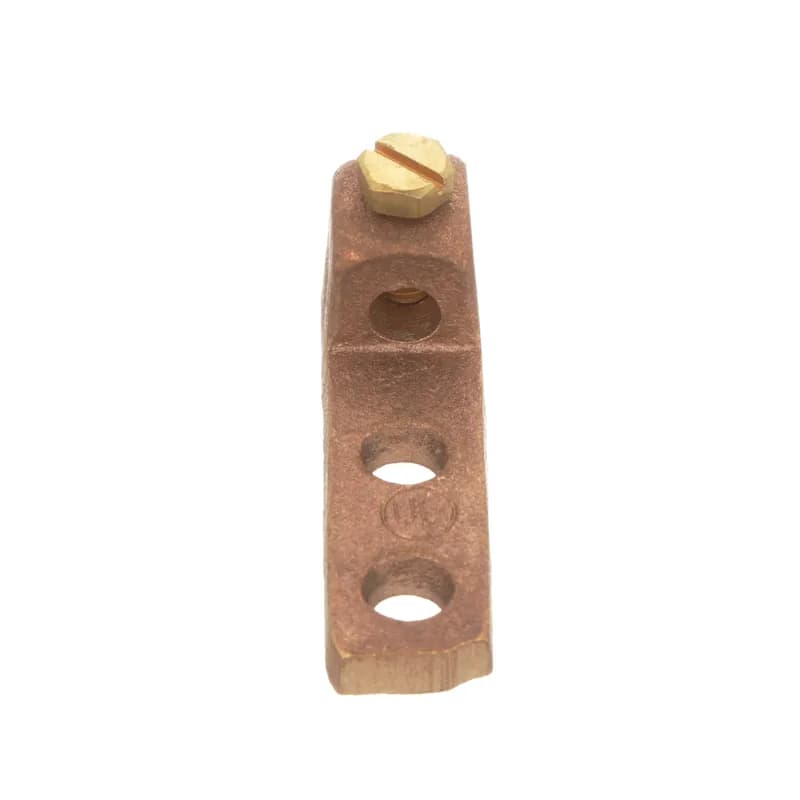

Two-hole, copper, single barrel, straight tongue lug with internal pressure plate, #14 SOL - #8 STR, 1/4 (6.4mm) stud hole.
