Contact for Pricing
Minimum Qty: 500
Multiplier: 100
*Contact for lower quantities*
Overview
- Heavy-duty fixed diameter clamp for secure wire, cable, and hose bundling.
- Nylon 6.6 construction for durability and weather resistance.
- #10 screw (M5) mounting method for robust attachment.
- Accommodates a maximum bundle diameter of 1.50 inches (38.1mm).
- Large mounting base for high bonding strength and releasable latch for easy adjustment.
Specifications
Application | Indoor/Outdoor |
Cable Size | 1.5 in |
Cable Size | 38.1 mm |
Cable Type | Cable Clamp |
Color | Black |
Connection Type | Cable Clamp |
Load | NA |
Material | Nylon 6.6 |
Material Quality | Nylon 6.6 |
Mounting | Screw-On |
Mounting Type | Screw |
Overall Height* | 1.6 In. |
Series | CCH |
Size | 1.50" (38.1mm) bundle |
Size | 1.50" (38.1mm) bundle, #10 screw (M5) |
Standard | UL Recognized E136577, RoHS Compliant |
Type | Cable Clamp |
Package Dimensions (L x W x H) | 14.25 IN x 8.9 IN x 9.5 IN |
Package Weight (Imperial) | 4.45 lbs |
BR2-1.5-X
Bundle retainer, 1/4" screw (M6), .2" (50.8mm) bundle, .1.59" (40.4mm) standoff height, glass filled nylon 6.6, black.
RAFCBI1-S6-C20
Panduit RAFCBI1-S6-C20 Right Angle Base Mounts support cables above the mounting surface. Mounts are 1.75 (44.4mm) in height and accept flat cables up to 1.0 (25.4mm) in width. For use in indoor environments and with #6 (M3) screws. Made of Nylon 6.6 are black in color and come in packages of 100.
RER.5-S6-X
Panduit RER.5-S6-X Harness Elastic Retainers with replaceable elastic band are part of the Quick-Build modular and reusable harness board system. Cable bundles are formed as individual wire are inserted into retainers and once bundles are formed, they can be easily removed. Suitable for 0.5 maximum bundle capacity and come in packages of 10.
CCH112-S10-C0
Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1.12" (28.5mm) bundle, black, bulk package.
ER1.25-E4-X

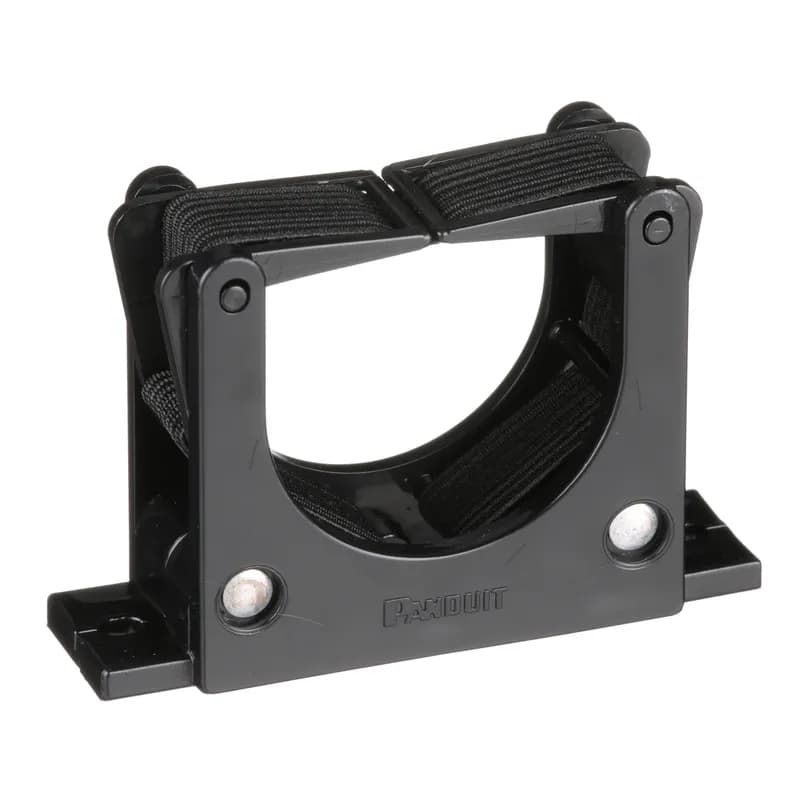

Panduit ER1.25-E4-X Elastic Harness Board Retainers aid in maintaining a uniform height for the harness. Cable bundles are formed as cable bundles are inserted, and once they are made, they can easily be removed. The Elastic Retainer is just part of the harness board accessories Panduit offers, enabling faster routing and forming of wires in harness fabrication. For use in indoor environments and with two #6 (M3) screws. Made of Nylon 6.6, are black in color and come in packages of 10.
CCH100-S10-C0
Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1" (25.4mm) bundle, black, standard package.
BR.5-E6-C
Bundle retainer, #6 screw (M3), .50" (12.7mm) bundle, 1.07" (27.2mm) standoff height, impact resistant nylon 6.6, black.
RER.75-S6-X
Panduit RER.75-S6-X Harness Elastic Retainers with replaceable elastic band are part of the Quick-Build modular and reusable harness board system. Cable bundles are formed as individual wire are inserted into retainers and once bundles are formed, they can be easily removed. Suitable for 0.75 maximum bundle capacity and come in packages of 10.
CCH87-S10-D0
Fixed diameter cable clamp, heavy duty, #10 screw (M5), .87" (22.1mm) bundle, black, bulk package.
BR.75-E6-C
Bundle retainer, #6 screw (M3), .75" (19.1mm) bundle, .95" (24.1mm) standoff height, impact resistant nylon 6.6, black.Frequently Asked Questions about Panduit
