Panduit BT1M-M39 - Dome-Top barb ty cable tie, miniature cross section, 4.0 (102mm) length, heat stabilized nylon 6.6, natural.
Panduit

BT1M-M39

UPC: 074983633845

Documents & Media
Technical BulletinTechnical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 10000

Multiplier: 1000

*Contact for lower quantities*

Overview

The Panduit BT1M-M39 is a miniature cross-section cable tie designed for reliable wire and cable management. Constructed from heat-stabilized nylon 6.6, this natural-colored tie offers enhanced durability and performance in environments subject to elevated temperatures. Its 4.0-inch (102mm) length makes it suitable for bundling smaller groups of wires and cables. The dome-top barb-ty head provides a secure locking mechanism, ensuring a tight and stable hold. This cable tie is manufactured in the USA, adhering to stringent quality standards. Its miniature size is ideal for applications where space is limited, offering efficient and organized cable routing. The heat-stabilized nylon 6.6 material ensures that the tie maintains its integrity and tensile strength even when exposed to heat, making it a dependable choice for various industrial and commercial installations. The natural color allows for easy identification and integration into existing cable management systems. Panduit's commitment to quality is reflected in the robust construction of the BT1M-M39, providing a secure and long-lasting solution for your bundling needs.
  • Miniature cross-section for compact applications
  • 4.0 inch (102mm) length for versatile bundling
  • Heat-stabilized nylon 6.6 for elevated temperature resistance
  • Dome-top barb-ty head for secure locking
  • Natural color for easy integration

Specifications

Application
High Temperature
Bundle Diameter, Maximum
0.9 in
Bundle Diameter, Maximum
22.86 mm
Bundle Diameter, Minimum
0.9 in
Bundle Diameter, Minimum
22.86 mm
Decorative Color
Natural
Length
4 in
Length
101.6 mm
Lock Mechanism
Locking
Material Quality
Nylon 6.6
Special Features
Indoor
Standard
UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
Tensile Strength
18 lb
Tensile Strength
80.064 N
Thickness
0.04 in
Type
Cable Tie
Width
NA in
Package Dimensions (L x W x H)
22.6 IN x 14.85 IN x 16.75 IN
Package Weight (Imperial)
35 lbs
The BT1M-C Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Miniature cross section, 4.0 (102mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.

BT1M-C

The BT1M-C Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Miniature cross section, 4.0 (102mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Dome-Top barb ty cable tie, miniature cross section, 4.0 (102mm) length, flame retardant nylon 6.6, natural (ivory).

BT1M-M69

Dome-Top barb ty cable tie, miniature cross section, 4.0 (102mm) length, flame retardant nylon 6.6, natural (ivory).
Sta-Strap cable tie box, releasable, miniature cross section, 4.0 (102mm) length, nylon 6.6, natural.

SST1M-MP

Sta-Strap cable tie box, releasable, miniature cross section, 4.0 (102mm) length, nylon 6.6, natural.

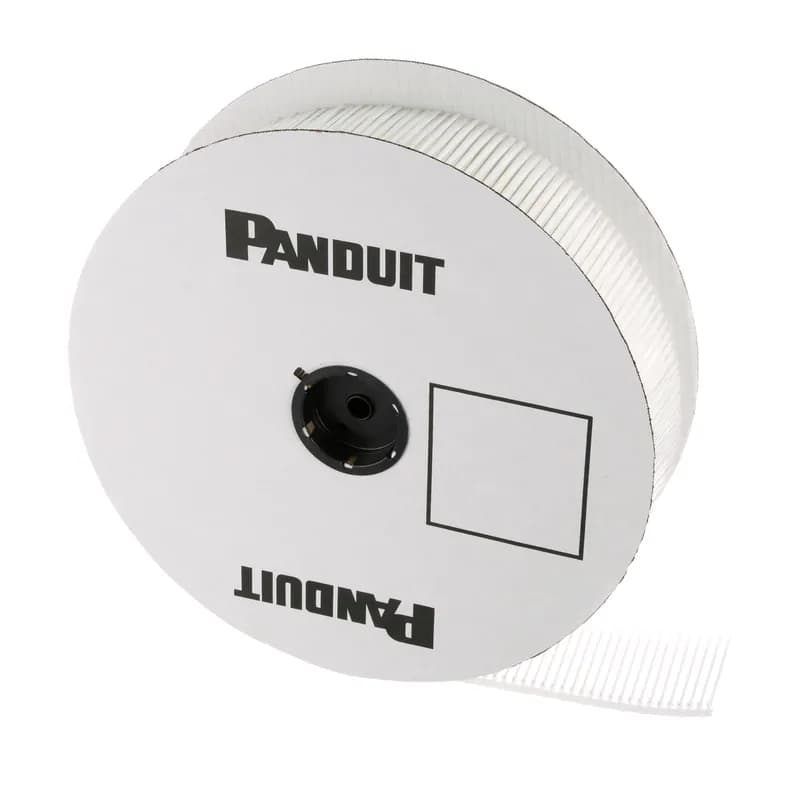

Panduit BT1M-XMR continuously molded barbed cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Exclusive stainless steel locking barb with high loop tensile strength provides higher reliability for demanding applications. Miniature cross section, 4 (102mm) cable ties for use with PAT1M4.0-BT Tool. Made of Nylon 6.6, are natural in color and come 5,000 ties per reel.

BT1M-XMR

Panduit BT1M-XMR continuously molded barbed cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Exclusive stainless steel locking barb with high loop tensile strength provides higher reliability for demanding applications. Miniature cross section, 4 (102mm) cable ties for use with PAT1M4.0-BT Tool. Made of Nylon 6.6, are natural in color and come 5,000 ties per reel.
The BT1M-M Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Miniature cross section, 4.0 (102mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.

BT1M-M

The BT1M-M Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Miniature cross section, 4.0 (102mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit SST1M-M Sta-Strap cable ties offer an exclusive two-piece design providing the lowest threading force in the industry. Paired with their small head height, these ties allow more efficient use of space in compact areas and through-panel applications. They are also releasable prior to final tensioning for bundle modifications. Miniature cross section, 4.0 (102mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.

SST1M-M

Panduit SST1M-M Sta-Strap cable ties offer an exclusive two-piece design providing the lowest threading force in the industry. Paired with their small head height, these ties allow more efficient use of space in compact areas and through-panel applications. They are also releasable prior to final tensioning for bundle modifications. Miniature cross section, 4.0 (102mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Sta-Strap cable tie, releasable, miniature cross section, 4.0 (102mm) length, nylon 6.6, natural, standard package.

SST1M-C

Sta-Strap cable tie, releasable, miniature cross section, 4.0 (102mm) length, nylon 6.6, natural, standard package.

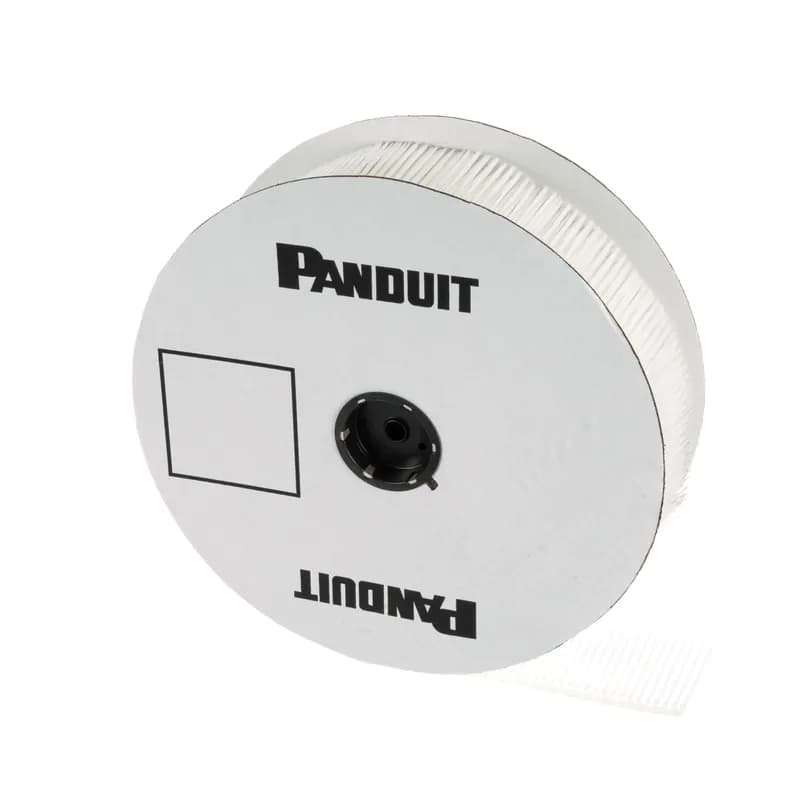

Panduit PLT1M-XMR continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0 (102mm) cable ties for use with PAT1M4.0 and PDM4.0 system. Made of Nylon 6.6, are natural in color and come 5,000 ties per reel.
