Panduit AST25-5-C100 - Panduit AST25-5-C100 Aerial Support Ties with integral 1/2 (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 2.5 (63.5mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.
Panduit

AST25-5-C100

UPC: 074983601059

Documents & Media
Technical DrawingFull Engineering DrawingInstallation InstructionsVideo Clip

Contact for Pricing

Minimum Qty: 500

Multiplier: 100

*Contact for lower quantities*

Overview

The Panduit AST25-5-C100 Aerial Support Tie, SKU AST25-5-C100, is engineered for robust outdoor cable management, specifically designed to attach coax or telephone cable to 1/4" (6.4mm) or 5/16" (7.9mm) support strands. This innovative tie forms an essential expansion loop, ensuring that equipment and cables are kept clear of pole hardware, thereby preventing damage and maintaining system integrity. Its one-piece construction features an integral 1/2" (12.7mm) spacer, a key design element that significantly reduces inventory costs by eliminating the need for separate spacers and bands. This integrated approach also leads to faster installation times, lowering overall installed costs. Constructed from weather-resistant polypropylene, the AST25-5-C100 is built to withstand harsh outdoor environments. The tie is black in color for discreet installation and comes in convenient packages of 100 units. A critical feature is its releasable and re-usable nature, offering flexibility during installation and maintenance. Furthermore, it requires no specialized installation tools, as it is designed for hand installation only. The AST25-5-C100 supports cable bundles up to 2.5" (63.5mm) in diameter, providing ample capacity for common telecommunications and data cabling. The minimum loop tensile strength is rated at 75 lbs (334 N), ensuring secure attachment even under tension. This product is manufactured in the USA, adhering to stringent quality standards. Key specifications include an overall length of 10.0" (254mm) and a maximum bundle diameter of 2.5" (64mm). The Panduit AST25-5-C100 is an efficient, cost-effective, and durable solution for aerial cable support applications.
  • Attaches coax/telephone cable to support strands, keeping cables clear of pole hardware.
  • Integral 1/2" (12.7mm) spacer reduces inventory and speeds installation.
  • Releasable and reusable, requiring no installation tools.
  • Constructed from weather-resistant polypropylene for outdoor environments.
  • Supports bundles up to 2.5" (63.5mm) in diameter.

Specifications

Application
(1) To Attach Coax or Telephone Cable to The 1/4 Inch (6.4Mm) or 5/16 Inch (7.9Mm) Support Strand to form The Expansion Loop and Keep Equipment and Cables Clear of Pole Hardware;Indoor/Outdoor
Cable Size
2.5
Cable Type
Aerial Support
Color
Black
Material
Polypropylene
Material Quality
Polypropylene
Operating Temperature, Maximum
239 F
Operating Temperature, Maximum
115 C
Operating Temperature, Minimum
239 F
Operating Temperature, Minimum
115 C
Series
AST25-5
Size
2.5" (63.5mm)
Special Features
Outdoor
Standard
RoHS Compliant
Type
Aerial Support Tie
Package Dimensions (L x W x H)
22.95 IN x 21.15 IN x 21.75 IN
Package Weight (Imperial)
18.2 lbs

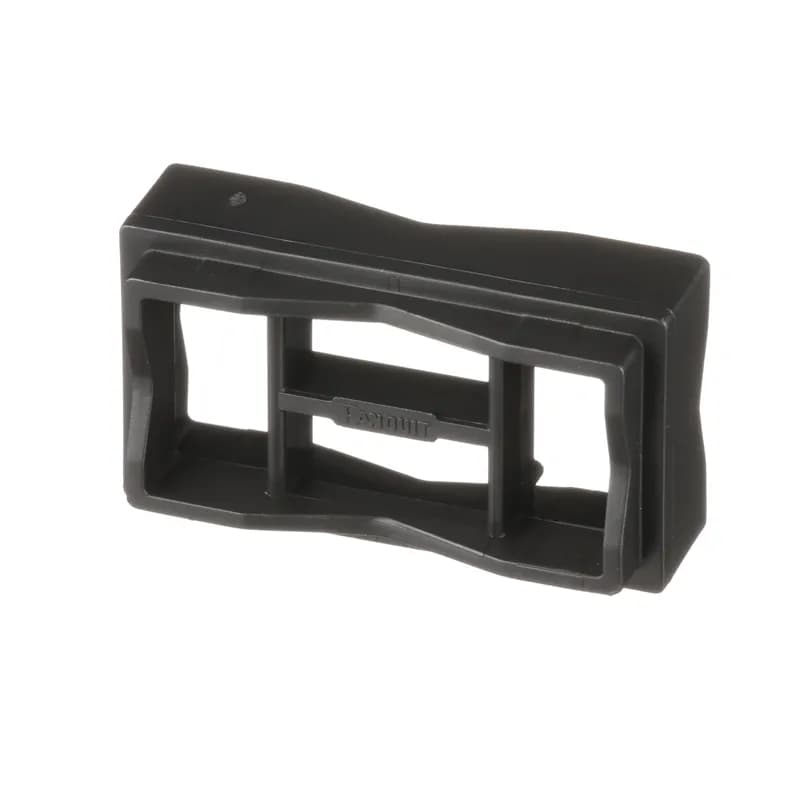

Panduit SACS50-T100 Stackable Aerial Cable Spacers are designed to snap into another to increase spacer heights by increments. Can be used in parallel or perpendicular applications. Are 2.08 x 1.16 x 0.51 (52.8 x 29.5 x 13.0 mm) in size and for use with Panduit Dura-Ty Cable Ties. Made of Weather Resistant Polypropylene and have high resistance to damage caused by UV light. For outdoor environments, are black in color and come in packages of 200.

SACS50-T100

Panduit SACS50-T100 Stackable Aerial Cable Spacers are designed to snap into another to increase spacer heights by increments. Can be used in parallel or perpendicular applications. Are 2.08 x 1.16 x 0.51 (52.8 x 29.5 x 13.0 mm) in size and for use with Panduit Dura-Ty Cable Ties. Made of Weather Resistant Polypropylene and have high resistance to damage caused by UV light. For outdoor environments, are black in color and come in packages of 200.
Panduit AST25-5-C100 Aerial Support Ties with integral 1/2 (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 2.0 (50.8mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.

AST20-5-C100

Panduit AST25-5-C100 Aerial Support Ties with integral 1/2 (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 2.0 (50.8mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.
Panduit AST15-5-C100 Aerial Support Ties with integral 1/2 (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 1.5 (38.1mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.

AST15-5-C100

Panduit AST15-5-C100 Aerial Support Ties with integral 1/2 (12.7mm) spacer for support strands are designed to keep equipment and cable clear of pole hardware. These ties and spacers together reduce inventory costs and allows for faster installation. They are releasable and re-usable, and do not require install tools. Supports bundles up to 1.5 (38.1mm) in diameter and is for use in outdoor environments. Made of weather-resistant polypropylene, is black in color and comes in packages of 100.
Panduit TM3S8-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #8 (M4) screw and Standard or Light-Heavy cross section cable ties. They are 0.614" (15.6mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.

TM3S8-C186

Panduit TM3S8-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #8 (M4) screw and Standard or Light-Heavy cross section cable ties. They are 0.614" (15.6mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.
Panduit TM2S8-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #8 (M4) screw and Miniature through Standard cross section cable ties. They are 0.422" (10.7mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.

TM2S8-C186

Panduit TM2S8-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #8 (M4) screw and Miniature through Standard cross section cable ties. They are 0.422" (10.7mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.

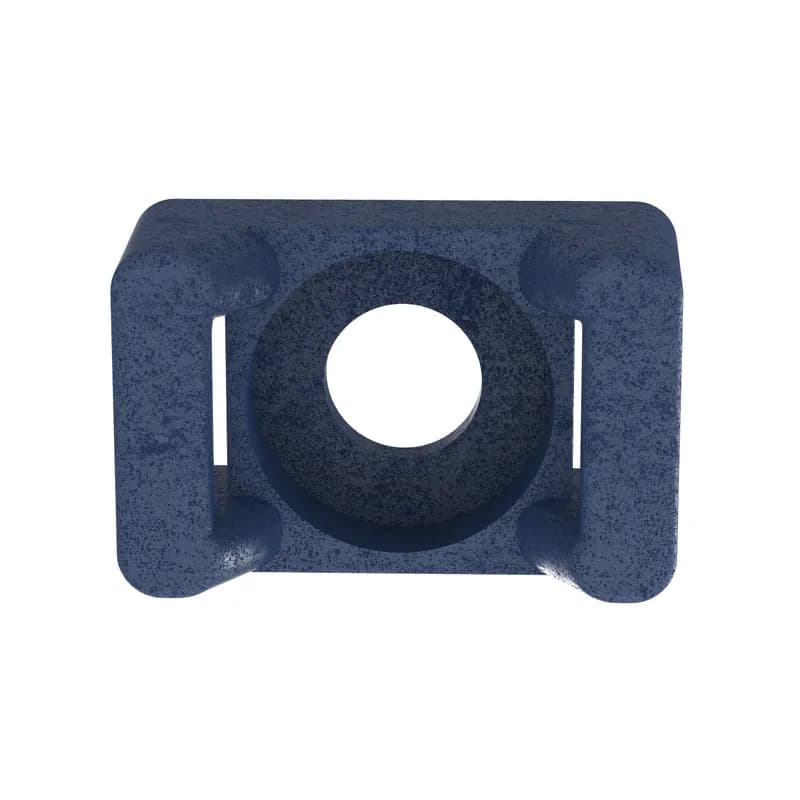

Panduit TM3S10-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #10 (M5) screw and Standard or Light-Heavy standard cross section cable ties. They are 0.614" (15.6mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.

TM3S10-C186

Panduit TM3S10-C186 Metal Detectable screw applied cable mounts allow identification by metal detection equipment to help meet food, beverage, and pharmaceutical safety standards. The mounts provide maximum stability and keep cables bundle close to mounting surface. For use with #10 (M5) screw and Standard or Light-Heavy standard cross section cable ties. They are 0.614" (15.6mm) wide and designed for indoor use. Made of Metal Detectable Polypropylene, are dark blue in color, and come in packages of 100.
Panduit TM3S8-M100 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. They are 0.61" (15.5 mm) wide and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Polypropylene, for outdoor use with high resistance to UV light, are black in color and come in packages of 1000.

TM3S8-M100

Panduit TM3S8-M100 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. They are 0.61" (15.5 mm) wide and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Weather Resistant Polypropylene, for outdoor use with high resistance to UV light, are black in color and come in packages of 1000.
Panduit TMEH-S10-C100 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #10 (M5) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.

TMEH-S10-C100

Panduit TMEH-S10-C100 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #10 (M5) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
The cable tie mount in black is applied with a #8 (M4) screw and is 0.61" (15.5 mm) wide. It is made of weather-resistant polypropylene for outdoor environments. It comes in packages of 100.

TM3S8-C100

The cable tie mount in black is applied with a #8 (M4) screw and is 0.61" (15.5 mm) wide. It is made of weather-resistant polypropylene for outdoor environments. It comes in packages of 100.

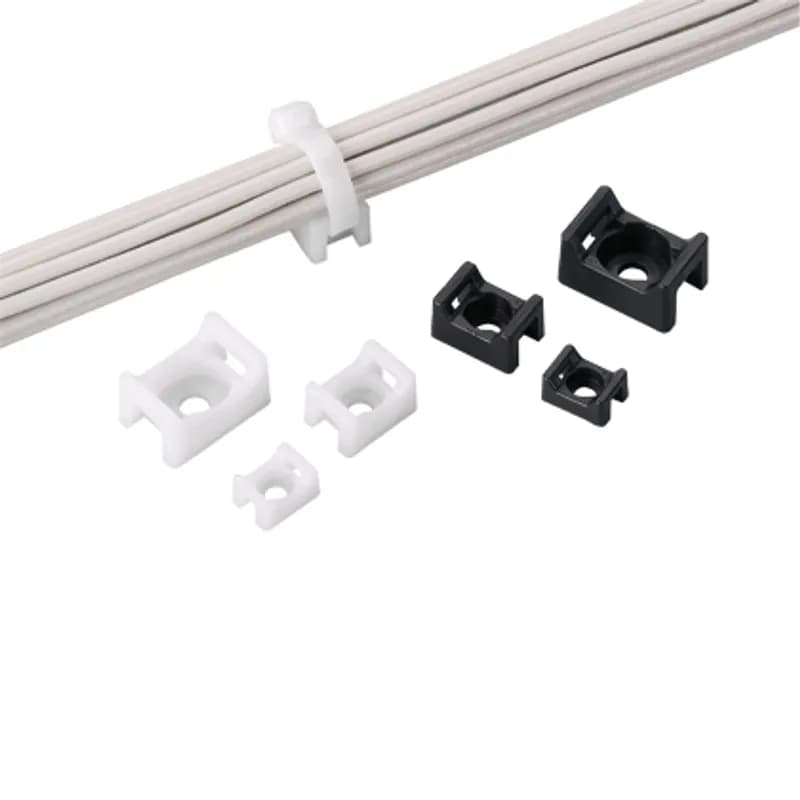

The cable tie mount in black is applied with a #8 (M4) screw and is 0.43" (10.9 mm) wide. It is made of weather-resistant polypropylene for outdoor environments. It comes in packages of 100.

TM2S8-C100

The cable tie mount in black is applied with a #8 (M4) screw and is 0.43" (10.9 mm) wide. It is made of weather-resistant polypropylene for outdoor environments. It comes in packages of 100.
The cable tie mount in black is applied with a #8 (M4) screw and is 0.43" (10.9 mm) wide. It is made of weather-resistant polypropylene for outdoor environments. It comes in packages of 1000.

TM2S8-M100

The cable tie mount in black is applied with a #8 (M4) screw and is 0.43" (10.9 mm) wide. It is made of weather-resistant polypropylene for outdoor environments. It comes in packages of 1000.
The extra heavy cable tie mount in green is applied with a #10 (M5) screw. It is made of polypropylene for indoor environments. It comes in packages of 100.

TMEH-S10-C109

The extra heavy cable tie mount in green is applied with a #10 (M5) screw. It is made of polypropylene for indoor environments. It comes in packages of 100.

How to Install the AST25-5-C100 Aerial Support Tie

This guide provides step-by-step instructions for installing the AST25-5-C100 Aerial Support Tie securely onto a support strand.

Estimated time: 15m

Tools needed:

Pliers, Screwdriver

Supplies needed:

Aerial Support Tie (AST25-5-C100), Cable

  1. Snap the tie onto the support strand

    Position the groove portion of the aerial support tie onto the support strand and snap it into place.

  2. Position the cable

    Place the cable against the tie spacer and thread the tail of the tie through the slot in the head.

  3. Tighten the tie

    Push upwards on the body of the tie until it is snug, then use pliers to tighten it completely utilizing the tension steps on the tie.

  4. Cut the tip if necessary

    If releasability is not required, cut off the tip of the tie after installation.

  5. Release the tie if needed

    To release the tie, use a screwdriver to push the locking tab towards the support strand.
