Panduit ABM112-AT-C0 - Panduit s ABM112-AT-C0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 100.
Panduit

ABM112-AT-C0

UPC: 074983281138

Documents & Media
Technical DrawingFull Engineering DrawingVideo Clip

Contact for Pricing

Minimum Qty: 500

Multiplier: 100

*Contact for lower quantities*

Overview

Panduit ABM112-AT-C0 4-way acrylic-based adhesive backed cable tie mounts deliver fast, reliable cable management for outdoor and high-temperature environments. Constructed from weather-resistant Nylon 6.6, these mounts withstand prolonged exposure to UV, moisture, and extreme temperatures, ensuring long-term performance without degradation. Each mount measures 1.12" x 1.12" (28.6mm x 28.6mm) and features a four-way tie slot design, accommodating miniature, intermediate, and standard cable ties for versatile application across industrial, commercial, and utility installations. Supplied in strips of two and packaged in quantities of 100, the ABM112-AT-C0 simplifies bulk procurement and streamlines inventory management. The high-strength acrylic adhesive backing ensures immediate bonding to smooth surfaces, reducing installation time and labor costs while maintaining secure cable retention. Ideal for telecommunications, data centers, power distribution, and outdoor infrastructure, these mounts provide a cost-effective solution for organizing cables in demanding conditions where durability and ease of use are critical.
  • 4-way tie slot design fits miniature, intermediate, and standard cable ties
  • Weather-resistant Nylon 6.6 construction for outdoor and high-temperature use
  • High-strength acrylic adhesive backing for secure, long-lasting installation
  • Compact 1.12" x 1.12" (28.6mm x 28.6mm) footprint for space-efficient mounting
  • Supplied in strips of 2, packaged 100 per box for bulk efficiency

Specifications

Application
Indoor/Outdoor;Used with Miniature, Intermediate, and Standard Cables Ties
Cable Size
NA
Cable Type
Cable Tie Mount
Color
Black
Insulation
Polyamide (PA)
Material Quality
Nylon 6.6
Mounting
Adhesive Tape
Operating Temperature, Maximum
180 F
Operating Temperature, Maximum
82.2222 C
Operating Temperature, Minimum
180 F
Operating Temperature, Minimum
82.2222 C
Screw Holes
#6 (M3)
Screw Size
#6 (M3)
Standard
CE Compliant, UL Recognized, RoHS Compliant
Temperature Range
-20 F - 180 F (-35 C - 82 C)
Temperature Range
-20°F - 180°F (-35°C - 82°C)
Type
Cable Tie Mount
Used With Cable Ties*
M, I, S
Package Dimensions (L x W x H)
10.95 IN x 9.2 IN x 7.3 IN
Package Weight (Imperial)
3.7 lbs
Panduit s ABM112-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 500.

ABM112-AT-D0

Panduit s ABM112-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1.12" x 1.12" (28.6mm x 28.6mm), supplied in strips of 2, are black in color and come in packages of 500.
Panduit s ABM100-AT-C0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.

ABM100-AT-C0

Panduit s ABM100-AT-C0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 100.
Panduit s ABM100-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 500.

ABM100-AT-D0

Panduit s ABM100-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for outdoor, high-temperature environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 500.
Panduit s ABM4H-AT-T0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for outdoor, high-temperature environments. They are 2.0" x 2.0" (50.8mm x 50.8mm), supplied in strips of 2, are black in color and come in packages of 200.

ABM4H-AT-T0

Panduit s ABM4H-AT-T0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for outdoor, high-temperature environments. They are 2.0" x 2.0" (50.8mm x 50.8mm), supplied in strips of 2, are black in color and come in packages of 200.
Panduit s ABM3H-AT-T0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for outdoor, high-temperature environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are black in color and come in packages of 200.

ABM3H-AT-T0

Panduit s ABM3H-AT-T0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for outdoor, high-temperature environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are black in color and come in packages of 200.
Panduit s ABM1M-AT-M0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature cable ties and are designed for outdoor, high-temperature environments. They are 0.50" x 0.50" (12.7mm x 12.7mm), supplied in strips of 2, are black in color and come in packages of 1000.

ABM1M-AT-M0

Panduit s ABM1M-AT-M0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature cable ties and are designed for outdoor, high-temperature environments. They are 0.50" x 0.50" (12.7mm x 12.7mm), supplied in strips of 2, are black in color and come in packages of 1000.
Panduit s ABM100-A-D20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 500.

ABM100-A-D20

Panduit s ABM100-A-D20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designed for indoor environments. They are 1" x 1" (25.4mm x 25.4mm), supplied in strips of 2, are black in color and come in packages of 500.
Panduit s ABM3H-A-L20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are black in color and come in packages of 50.

ABM3H-A-L20

Panduit s ABM3H-A-L20 4-way rubber-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Nylon 6.6 and can be used with miniature, intermediate, standard, light-heavy, heavy, and hook and loop mount cable ties. These mounts are designed for indoor environments. They are 1.5" x 1.5" (38.1mm x 38.1mm), supplied in strips of 2, are black in color and come in packages of 50.

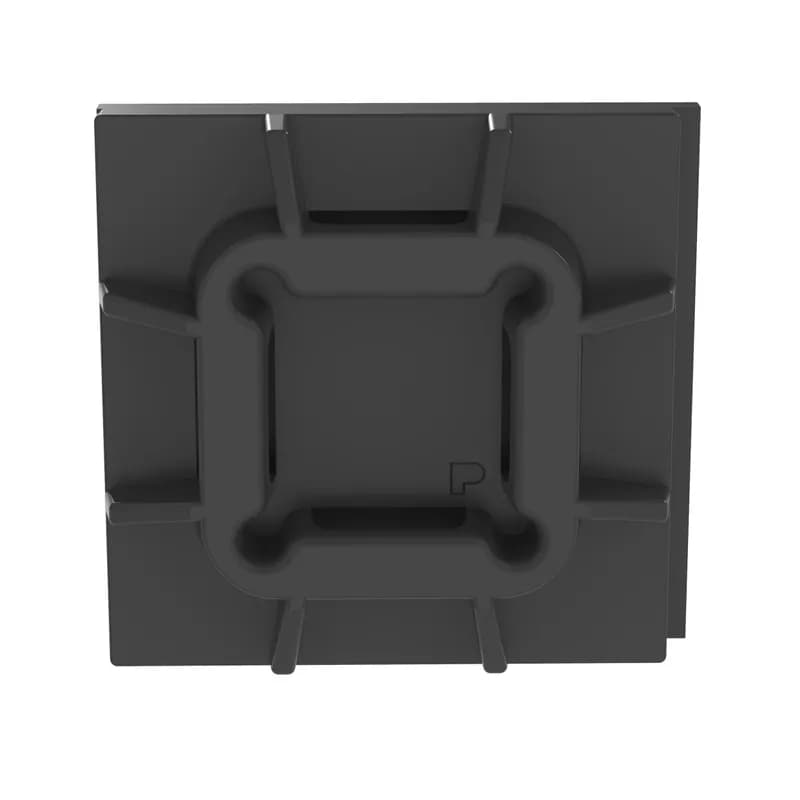

The SGABM20-AT-C0 super grip acrylic-based adhesive backed cable tie mounts are made of weather resistant Nylon 6.6 and are for use with miniature and intermediate Super-Grip cross-section cable ties. Designed for outdoor use, especially in high-temperature environments. They measure 0.75" x 0.75" (19.1mm x 19.1mm), supplied in strips of 2, are black in color and come in packages of 100.
