Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- Superior Design WarriorWrap outperforms the competition with strong adhesion, elasticity and breaking strength, all independently UL tested and certified
- Incredible Strength Insulate buried, submerged or overhead cables up to 1000V with the superior adhesion and dielectric strength of this insulating mastic pad with vinyl backing
- Bonds Quickly The self-fusing design conforms to any irregular shape while the strong mastic adhesive forms a secure and moisture-resistant bond for outdoor use
- Temperature Resistant Rated for 266 degrees F (130 C) environments, resists UV rays and is impermeable to ozone, water, soil or corrosive chemicals
- Range of Uses Durable enough for protecting buried low voltage connections and devices, terminations, overhead connectors, duct seal or cable end seals in outdoor environments
Specifications
Application | For encapsulating and protecting direct buried low voltage connections and devices, terminations, overhead connectors, duct seals, and cable end seals. Ideal for covering molded joints on CN cables. |
Backing Material | NSI |
Color | Black |
Length | 4 IN |
Material | Vinyl, Mastic |
Maximum Voltage | 1,000 V |
Resists | UV |
Size | L=4.00 IN - W=6.50 IN |
Special Features | Vinyl Backing, UV Resistant, High Dielectric Strength, superior adhesion to metal, cable insulations and jackets, excludes moisture and may be direct buried or submerged |
Temperature Range | 130 C, 266 F |
Thickness | 133 MILS |
Type | Vinyl Mastic Pad |
UV Resistance | Yes |
Warranty | 1 Year |
Width | 6.5 IN |
Package Dimensions (L x W x H) | 4 IN x 6.5 IN x 0.133 IN |
Package Dimensions (L x W x H) | 10.16 cm x 16.51 cm x 3.3782 mm |
Package Weight (Imperial) | 0.070 L |
Package Weight (Metric) | 0.032 kg |
WW-VMR-40
WarriorWrap WW-VMR-40 Gray Insulating Vinyl Mastic Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1.33in thick, 4 inch wide, 10ft long and is made from temperature-stable materials. The self-bonding design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for protecting buried low voltage connections and devices, terminations, overhead connectors, duct seal or cable end seals in outdoor environments.
WW-MSR-375
WarriorWrap WW-MSR-375 Gray Mastic Insulating and Sealing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 5mil thick, 3.75 inch wide, 10ft long and is made from temperature-stable materials. The self-amalgamating design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. WarriorWrap is an excellent choice for the insulating and moisture sealing splices and terminations of solid dielectric cable or ductwork in outdoor environments, especially when jacketed with vinyl tape.

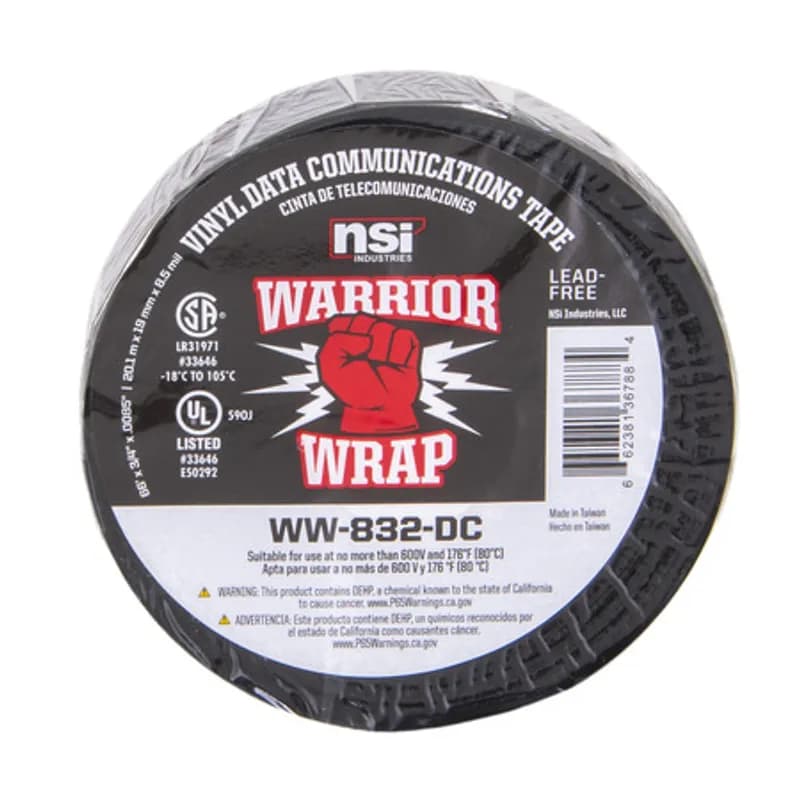

WW-832-DC
WarriorWrap WW-832-DC Black Vinyl Heavy Duty Data Communications Tape is strong enough for professional environments and highly resistant to abrasion and corrosion. This tape is 8.5mil thick, 3/4in wide, 66ft long and has a max temperature rating of 220 degrees F. The strong adhesion helps stick to uneven surfaces. Top breaking strength and elasticity make WarriorWrap an excellent choice for any requirement of the data comm industry.

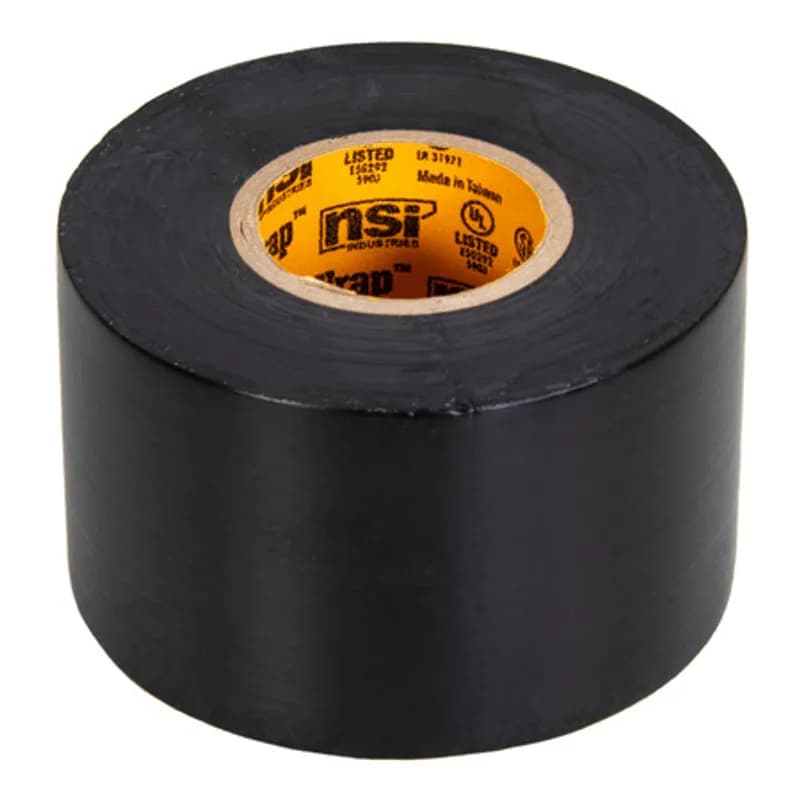

WW-732-15
WarriorWrap WW-732-15 Black Vinyl Professional-Quality Electrical Tape is strong enough for demanding environments and highly resistant to abrasion and corrosion. This tape is 7mil thick, an extra-wide 1.5in in width, 44ft long and has a max temperature rating of 220 degrees F. The strong adhesion helps stick to uneven surfaces and keeps the backing in place. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.

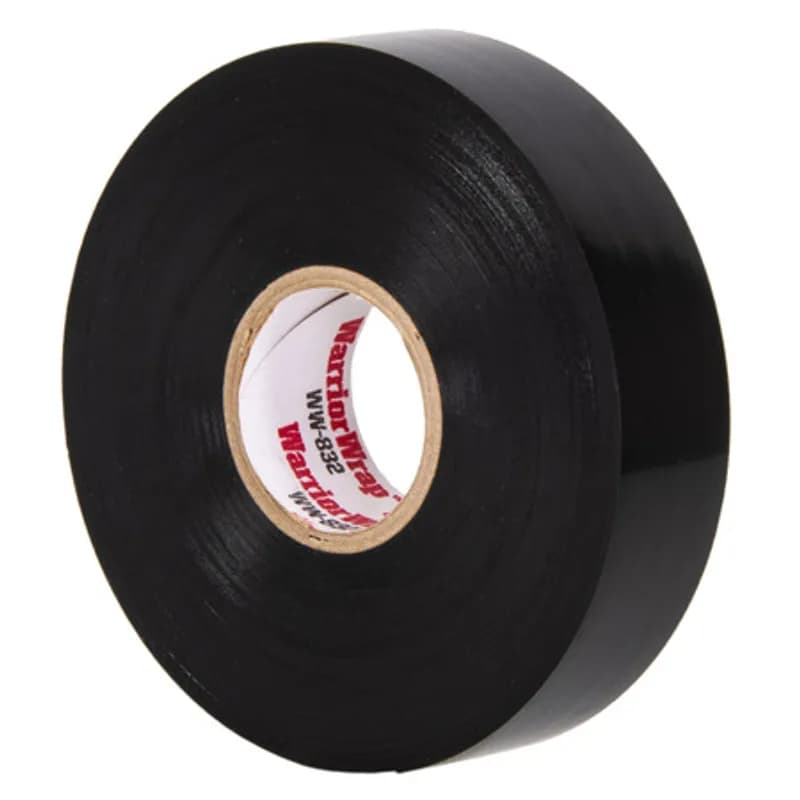

WW-832
WarriorWrap WW-832 Black Vinyl Heavy Duty Electrical Tape is strong enough for professional environments and highly resistant to abrasion and corrosion. This tape is 8.5mil thick, 66ft long and has a max temperature rating of 220 degrees F. The strong adhesion helps stick to uneven surfaces. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.

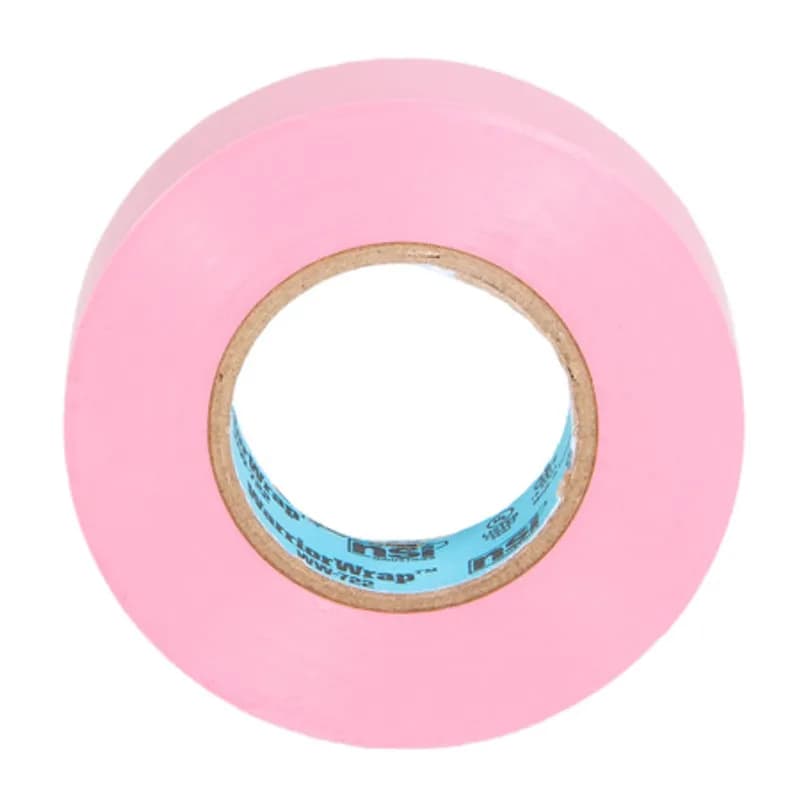

WW-722-PK
WarriorWrap WW-722-PK Pink Vinyl Professional Electrical Tape is strong enough for demanding environments and highly resistant to abrasion and corrosion. This tape is 7mil thick, 60ft long and has a max temperature rating of 176 degrees. The strong adhesion helps stick to uneven surfaces and keeps the backing in place. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.

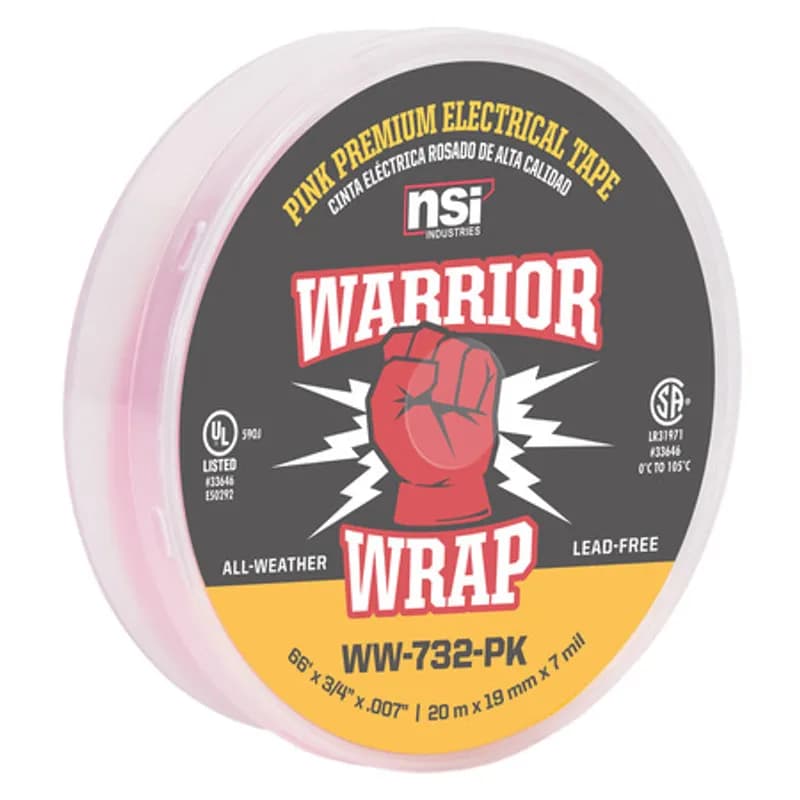

WW-732-PK
WarriorWrap WW-732-PK Pink Vinyl Professional-Quality Electrical Tape is strong enough for demanding environments and highly resistant to abrasion and corrosion. This tape is 7mil thick, 66ft long and has a max temperature rating of 220 degrees F. The strong adhesion helps stick to uneven surfaces and keeps the backing in place. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.
WW-716
WarriorWrap WW-716 Black Vinyl General Use Electrical Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, 60ft long and has a max temperature rating of 176 degrees. The strong adhesion helps stick to uneven surfaces and keeps the backing in place. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.
WW-722
WarriorWrap WW-722 Black Vinyl Professional Electrical Tape is strong enough for demanding environments and highly resistant to abrasion and corrosion. This tape is 7mil thick, 60ft long and has a max temperature rating of 176 degrees. The strong adhesion helps stick to uneven surfaces and keeps the backing in place. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.
WW-732
WarriorWrap WW-732 Black Vinyl Professional-Quality Electrical Tape is strong enough for demanding environments and highly resistant to abrasion and corrosion. This tape is 7mil thick, 66ft long and has a max temperature rating of 220 degrees F. The strong adhesion helps stick to uneven surfaces and keeps the backing in place. Top breaking strength and elasticity make WarriorWrap an excellent choice for splicing, insulating or marking wires.Frequently Asked Questions
What is the maximum operating voltage?
The WW-VMP-65 can handle up to 1000 volts.
What is the continuous operating temperature?
The continuous operating temperature is 194°F (90°C).
What is the emergency overload temperature?
The emergency overload temperature is 266°F (130°C).
Is WW-VMP-65 UV resistant?
Yes, WW-VMP-65 is resistant to UV rays.
What materials are used in WW-VMP-65?
The WW-VMP-65 features a vinyl backing and mastic adhesive.
Can WW-VMP-65 be used for direct burial?
Yes, it can be directly buried or submerged.
What is the thickness of WW-VMP-65?
The thickness of WW-VMP-65 is 129.13 mils.
What is the dielectric strength of WW-VMP-65?
The dielectric strength is 508 V/mil.
How should WW-VMP-65 be stored?
Store in original packaging, horizontally, between 5ºC and 35ºC.
What is the shelf life of WW-VMP-65?
The shelf life is 60 months from the date of manufacture.
