NSI Industries WW-SC-75 - WarriorWrap WW-SC-75 Gray Rubber-Based Semi-Conducting Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 15ft long and is made from temperature-stable materials. The self-amalgamating tape has no adhesive but is self-bonding and conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for high voltage splices or terminations, shielding bus and overhead connections, filling indents in compression connectors or rebuilding strand shielding.
NSI Industries

WW-SC-75

UPC: 662381365804

Documents & Media
Specification Sheet

Contact for Pricing

Overview

The NSI Industries WW-SC-75 WarriorWrap is a professional-grade, rubber-based semi-conducting tape engineered for demanding electrical applications. Measuring 30 mil thick, 0.75 inches wide, and 15 feet long, this tape is constructed from temperature-stable materials, ensuring reliable performance in challenging environments. Its self-amalgamating properties mean it bonds to itself without adhesive, creating a strong, waterproof, and electrically insulating layer. This characteristic makes it ideal for high-voltage splices and terminations, where it can be wrapped under tension to form a homogeneous mass. The tape's ability to conform to irregular shapes is crucial for applications like filling indents in compression connectors or rebuilding strand shielding, ensuring complete coverage and protection. WarriorWrap offers exceptional breaking strength, elongation, and elasticity, allowing it to expand and contract with load cycling without compromising integrity. This makes it a superior choice for power cables and other critical electrical connections. Experience the robust performance and reliability of NSI Industries' WarriorWrap, designed to deliver professional results on the first attempt, every time. SKU: WW-SC-75.
  • Superior Design WarriorWrap outperforms the competition with strong adhesion, elasticity and breaking strength, all independently UL tested and certified
  • Unsupported Construction This conducting tape is designed to expand or contract due to load cycling, making it ideal for use on power cables or any extruded dielectric cable insulations
  • Self-Amalgamating This ethylene propylene rubber tape features no adhesive but is self-bonding when wrapped under tension, forming a solid mass within minutes of application
  • Electrostatic Shielding Forms a strong, seamless, rubbery, waterproof and electrically insulating layer when wrapped, overperforming on difficult jobs
  • Range of Uses Perfect for high voltage splices or terminations, shielding bus and overhead connections, filling indents in compression connectors or rebuilding strand shielding

Specifications

Backing Material
NSI
Length
15 FT
Resists
UV
Temperature Range
130 C, 266 F
Tensile Strength
290 PSI
Thickness
30 MILS
UV Resistance
Yes
Warranty
1 Year
Width
0.75 in
Package Dimensions (L x W x H)
15 FT x 0.75 IN x 0.03 IN
Package Dimensions (L x W x H)
4.572 m x 19.05 mm x 0.762 mm
Package Weight (Imperial)
0.119 L
Package Weight (Metric)
0.054 kg
WarriorWrap WW-RMR-20 Gray Mastic High Temperature Insulating Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 65mil thick, 2 inch wide, 10ft long and is made from temperature-stable materials. The self-amalgamating design conforms to irregular shapes with a self-bonding mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. WarriorWrap is an excellent choice for insulating and moisture sealing splices and terminations on solid dielectric cable in high-temperature applications up to 2kV.

WW-RMR-20

WarriorWrap WW-RMR-20 Gray Mastic High Temperature Insulating Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 65mil thick, 2 inch wide, 10ft long and is made from temperature-stable materials. The self-amalgamating design conforms to irregular shapes with a self-bonding mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. WarriorWrap is an excellent choice for insulating and moisture sealing splices and terminations on solid dielectric cable in high-temperature applications up to 2kV.
WarriorWrap WW-GC-75 White Woven Fiberglass Cloth Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, .75 inches wide, 66ft long and has a woven fiberglass design backed with a thermosetting rubber-based adhesive. Top breaking strength, high operating temperature and fire resistance make WarriorWrap an excellent choice for insulating or protecting motor leads, hot spots, switches, controls, solid dielectric cable, WWARC, Arc or fire proofing tape where strong adhesion is required.

WW-GC-75

WarriorWrap WW-GC-75 White Woven Fiberglass Cloth Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, .75 inches wide, 66ft long and has a woven fiberglass design backed with a thermosetting rubber-based adhesive. Top breaking strength, high operating temperature and fire resistance make WarriorWrap an excellent choice for insulating or protecting motor leads, hot spots, switches, controls, solid dielectric cable, WWARC, Arc or fire proofing tape where strong adhesion is required.
WarriorWrap WW-SH-10 Gray Tinned Copper-Knit Shielding Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1 inch wide, 15ft long and is made from copper wire with a diameter of 5.12 mil. The tinned all-copper design is knitted for excellent conformability and doesn’t have any adhesive to make it faster and easier to apply. This tape is an excellent choice applications that require postiive metallic shielding.

WW-SH-10

WarriorWrap WW-SH-10 Gray Tinned Copper-Knit Shielding Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1 inch wide, 15ft long and is made from copper wire with a diameter of 5.12 mil. The tinned all-copper design is knitted for excellent conformability and doesn’t have any adhesive to make it faster and easier to apply. This tape is an excellent choice applications that require postiive metallic shielding.
3/4 in. width, Rubber material, Black, 22 ft. length, 1 per pack

RT34BLK

3/4 in. width, Rubber material, Black, 22 ft. length, 1 per pack
WarriorWrap WW-EF-15 Self-Amalgamating Electrical Filler Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1/8in thick, 1.5 inches wide, 5ft long and has a self-amalgamating, butyl-based mastic design. The strong adhesion helps stick to uneven surfaces and the tape has a non-oxidizing design that will not corrode copper or aluminum. Top breaking strength and elasticity make WarriorWrap an excellent choice for encapsulating and protecting all types of connections and devices up to 600V.

WW-EF-15

WarriorWrap WW-EF-15 Self-Amalgamating Electrical Filler Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1/8in thick, 1.5 inches wide, 5ft long and has a self-amalgamating, butyl-based mastic design. The strong adhesion helps stick to uneven surfaces and the tape has a non-oxidizing design that will not corrode copper or aluminum. Top breaking strength and elasticity make WarriorWrap an excellent choice for encapsulating and protecting all types of connections and devices up to 600V.
Friction Tape, 60 ft. length, 3/4 in. width, Black, 1 per pack

FT34BLK

Friction Tape, 60 ft. length, 3/4 in. width, Black, 1 per pack

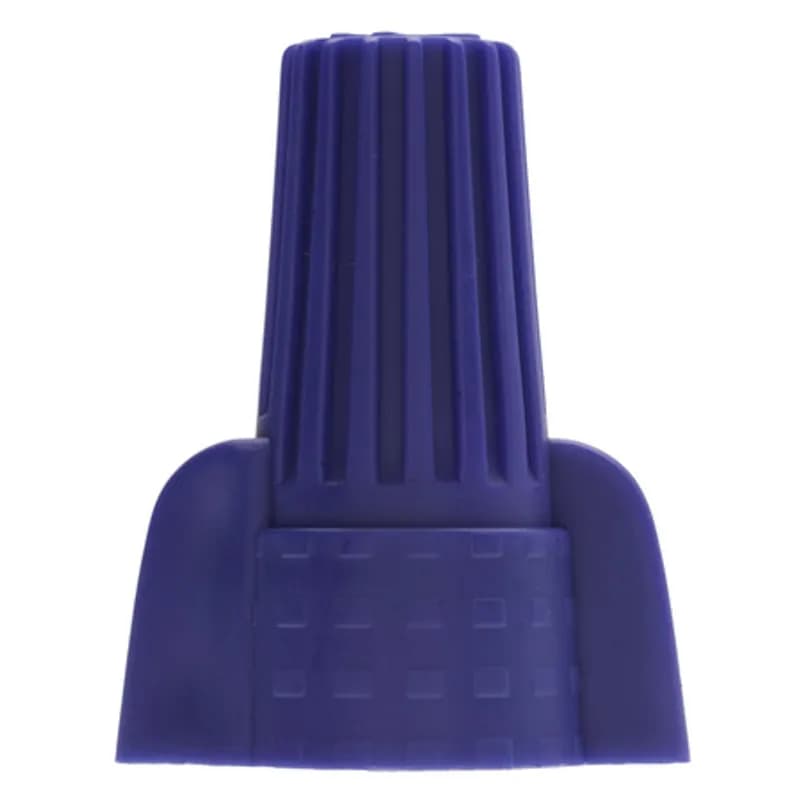

The Easy-Twist WWC-B-B-NL 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â

WWC-B-B-NL

The Easy-Twist WWC-B-B-NL 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
The Easy-Twist WWC-Y-B-NL 500-Count Bag of Yellow Winged Wire Connectors are designed for use on copper wires in the 18-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires

WWC-Y-B-NL

The Easy-Twist WWC-Y-B-NL 500-Count Bag of Yellow Winged Wire Connectors are designed for use on copper wires in the 18-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires
The Easy-Twist WWC-T-B-NL 500-Count Bag of Tan Winged Wire Connectors are designed for use on copper wires in the 22-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.

WWC-T-B-NL

The Easy-Twist WWC-T-B-NL 500-Count Bag of Tan Winged Wire Connectors are designed for use on copper wires in the 22-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
The Easy-Twist WWC-R-B-NL 500-Count Bag of Red Winged Wire Connectors are designed for use on copper wires in the 22-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.

WWC-R-B-NL

The Easy-Twist WWC-R-B-NL 500-Count Bag of Red Winged Wire Connectors are designed for use on copper wires in the 22-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
WarriorWrap WW-ARC-30 Gray Fire-Retardant Arc Proofing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 20ft long and has an unsupported, linerless design. When exposed to fire, the adhesive expands to create a char buildup which acts as a heat shield and flame barrier. The strong adhesion helps stick to uneven surfaces and provides comfortability when wrapping cables. Top breaking strength and elasticity make WarriorWrap an excellent choice in many professional applications.

WW-ARC-30

WarriorWrap WW-ARC-30 Gray Fire-Retardant Arc Proofing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 20ft long and has an unsupported, linerless design. When exposed to fire, the adhesive expands to create a char buildup which acts as a heat shield and flame barrier. The strong adhesion helps stick to uneven surfaces and provides comfortability when wrapping cables. Top breaking strength and elasticity make WarriorWrap an excellent choice in many professional applications.
WarriorWrap WW-VMR-40 Gray Insulating Vinyl Mastic Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1.33in thick, 4 inch wide, 10ft long and is made from temperature-stable materials. The self-bonding design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for protecting buried low voltage connections and devices, terminations, overhead connectors, duct seal or cable end seals in outdoor environments.

WW-VMR-40

WarriorWrap WW-VMR-40 Gray Insulating Vinyl Mastic Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1.33in thick, 4 inch wide, 10ft long and is made from temperature-stable materials. The self-bonding design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for protecting buried low voltage connections and devices, terminations, overhead connectors, duct seal or cable end seals in outdoor environments.

Frequently Asked Questions

What is the operating temperature range?

The continuous operating temperature is 194°F (90°C) and overload temperature is 266°F (130°C).

Is WW-SC-75 UV resistant?

Yes, WW-SC-75 has UV resistance and passes visual tests.

What is the primary use of WW-SC-75?

It is used for electrostatic shielding on high voltage splices and terminations.

What color is the WW-SC-75 tape?

The WW-SC-75 tape is black.

What materials is the WW-SC-75 made from?

The WW-SC-75 is made from ethylene propylene rubber.

What are the recommended storage conditions?

Store in original packaging, horizontally, under cover, and at temperatures between 5ºC and 35ºC.

What is the thickness of WW-SC-75?

The thickness of WW-SC-75 is 30 mils.

What is the breaking strength of WW-SC-75?

The breaking strength is 290 psi.

What is the elongation at break for WW-SC-75?

The elongation at break is 750%.

What is the volume resistivity of WW-SC-75?

The volume resistivity is 870 Ω.cm at 73.4°F and 50% RH.
