NSI Industries WW-RMR-20 - WarriorWrap WW-RMR-20 Gray Mastic High Temperature Insulating Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 65mil thick, 2 inch wide, 10ft long and is made from temperature-stable materials. The self-amalgamating design conforms to irregular shapes with a self-bonding mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. WarriorWrap is an excellent choice for insulating and moisture sealing splices and terminations on solid dielectric cable in high-temperature applications up to 2kV.
NSI Industries

WW-RMR-20

UPC: 662381365651

Documents & Media
Specification Sheet

Contact for Pricing

Overview

Its Warrior Time. At NSI, we put our 45 years of experience in the electrical industry into WarriorWrap, electrical tape strong enough to rise to any challenge.That quality starts with strong adhesion to stick to uneven surfaces. But that’s not all—it also features the best breaking strength around and unmatched elasticity. Insulating mastic provides superior adhesion and dielectric strength through the combination of an ethylene propylene rubber (EPR) backing and a strong mastic adhesive. Use this tape to seal and insulate electrical connections in demanding outdoor environments, such as buried, submerged, or overhead cables. The temperature-stable materials are rated for operating temperatures up to 266 degrees F and voltages up to 2000V. Beyond that, the rubber backing is incredible resilient, resisting moisture, UV rays, ozone, water, dirt and corrosive chemicals, all of which make this tape perfect for outdoor use. The mastic adhesive sticks to metal, other cable insulation or jackets without any problem, making it a valuable tool for insulating or padding any cable. Experience next-generation professional tape, with a comprehensive lineup that gets the job done right the first time, every time.
  • Superior Design WarriorWrap outperforms the competition with strong adhesion, elasticity and breaking strength, all independently UL tested and certified
  • Incredible Strength Insulate and seal splices or terminations up to 2000V with the superior adhesion and dielectric strength of this insulating mastic tape with EPR backing
  • Bonds Quickly The self-fusing design conforms to any irregular shape while the strong mastic adhesive forms a secure and moisture-resistant bond for outdoor use
  • Temperature Resistant Rated for 266 degrees F (130 C) environments, resists UV rays and is impermeable to ozone, water, soil or corrosive chemicals
  • Range of Uses Durable enough for use on solid dielectric cables, insulating and moisture-sealing splices, bus bar insulation or even corrosion protection in outdoor environments

Specifications

Backing Material
NSI
Length
10 ft
Maximum Voltage
2 kv
Resists
UV, Moisture, Corrosion, Chemicals
Temperature Range
130 C, 266 F
Thickness
65 MILS
UV Resistance
Yes
Warranty
1 Year
Width
2 IN
Package Dimensions (L x W x H)
10 FT x 2 IN x 0.065 IN
Package Dimensions (L x W x H)
3.048 m x 5.08 cm x 1.651 mm
Package Weight (Imperial)
0.417 L
Package Weight (Metric)
0.189 kg
WarriorWrap WW-MSR-375 Gray Mastic Insulating and Sealing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 5mil thick, 3.75 inch wide, 10ft long and is made from temperature-stable materials. The self-amalgamating design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. WarriorWrap is an excellent choice for the insulating and moisture sealing splices and terminations of solid dielectric cable or ductwork in outdoor environments, especially when jacketed with vinyl tape.

WW-MSR-375

WarriorWrap WW-MSR-375 Gray Mastic Insulating and Sealing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 5mil thick, 3.75 inch wide, 10ft long and is made from temperature-stable materials. The self-amalgamating design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. WarriorWrap is an excellent choice for the insulating and moisture sealing splices and terminations of solid dielectric cable or ductwork in outdoor environments, especially when jacketed with vinyl tape.
WarriorWrap WW-VMR-40 Gray Insulating Vinyl Mastic Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1.33in thick, 4 inch wide, 10ft long and is made from temperature-stable materials. The self-bonding design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for protecting buried low voltage connections and devices, terminations, overhead connectors, duct seal or cable end seals in outdoor environments.

WW-VMR-40

WarriorWrap WW-VMR-40 Gray Insulating Vinyl Mastic Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1.33in thick, 4 inch wide, 10ft long and is made from temperature-stable materials. The self-bonding design conforms to irregular shapes with a mastic adhesive that forms a secure and moisture-resistant bond for outdoor use. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for protecting buried low voltage connections and devices, terminations, overhead connectors, duct seal or cable end seals in outdoor environments.
WarriorWrap WW-EF-15 Self-Amalgamating Electrical Filler Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1/8in thick, 1.5 inches wide, 5ft long and has a self-amalgamating, butyl-based mastic design. The strong adhesion helps stick to uneven surfaces and the tape has a non-oxidizing design that will not corrode copper or aluminum. Top breaking strength and elasticity make WarriorWrap an excellent choice for encapsulating and protecting all types of connections and devices up to 600V.

WW-EF-15

WarriorWrap WW-EF-15 Self-Amalgamating Electrical Filler Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1/8in thick, 1.5 inches wide, 5ft long and has a self-amalgamating, butyl-based mastic design. The strong adhesion helps stick to uneven surfaces and the tape has a non-oxidizing design that will not corrode copper or aluminum. Top breaking strength and elasticity make WarriorWrap an excellent choice for encapsulating and protecting all types of connections and devices up to 600V.
WarriorWrap WW-SC-75 Gray Rubber-Based Semi-Conducting Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 15ft long and is made from temperature-stable materials. The self-amalgamating tape has no adhesive but is self-bonding and conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for high voltage splices or terminations, shielding bus and overhead connections, filling indents in compression connectors or rebuilding strand shielding.

WW-SC-75

WarriorWrap WW-SC-75 Gray Rubber-Based Semi-Conducting Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, .75 inch wide, 15ft long and is made from temperature-stable materials. The self-amalgamating tape has no adhesive but is self-bonding and conforms to irregular shapes. Top breaking strength, elongation and elasticity make WarriorWrap an excellent choice for high voltage splices or terminations, shielding bus and overhead connections, filling indents in compression connectors or rebuilding strand shielding.
WarriorWrap WW-GC-75 White Woven Fiberglass Cloth Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, .75 inches wide, 66ft long and has a woven fiberglass design backed with a thermosetting rubber-based adhesive. Top breaking strength, high operating temperature and fire resistance make WarriorWrap an excellent choice for insulating or protecting motor leads, hot spots, switches, controls, solid dielectric cable, WWARC, Arc or fire proofing tape where strong adhesion is required.

WW-GC-75

WarriorWrap WW-GC-75 White Woven Fiberglass Cloth Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, .75 inches wide, 66ft long and has a woven fiberglass design backed with a thermosetting rubber-based adhesive. Top breaking strength, high operating temperature and fire resistance make WarriorWrap an excellent choice for insulating or protecting motor leads, hot spots, switches, controls, solid dielectric cable, WWARC, Arc or fire proofing tape where strong adhesion is required.

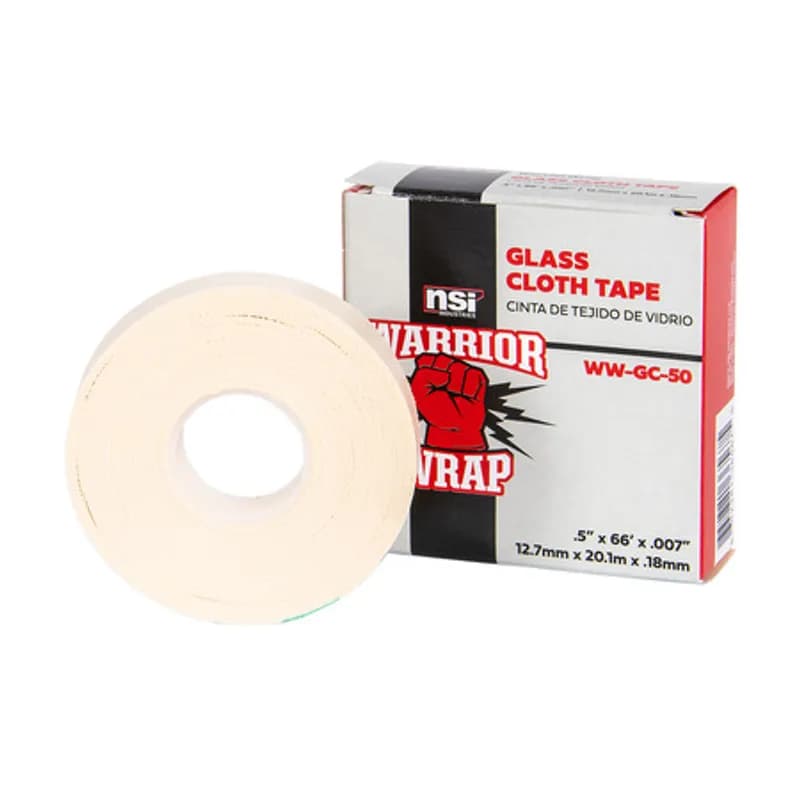

WarriorWrap WW-GC-50 White Woven Fiberglass Cloth Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, .5 inches wide, 66ft long and has a woven fiberglass design backed with a thermosetting rubber-based adhesive. Top breaking strength, high operating temperature and fire resistance make WarriorWrap an excellent choice for insulating or protecting motor leads, hot spots, switches, controls, solid dielectric cable, WWARC, Arc or fire proofing tape where strong adhesion is required.

WW-GC-50

WarriorWrap WW-GC-50 White Woven Fiberglass Cloth Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 7mil thick, .5 inches wide, 66ft long and has a woven fiberglass design backed with a thermosetting rubber-based adhesive. Top breaking strength, high operating temperature and fire resistance make WarriorWrap an excellent choice for insulating or protecting motor leads, hot spots, switches, controls, solid dielectric cable, WWARC, Arc or fire proofing tape where strong adhesion is required.
The Easy-Twist WWC-B-B-NL 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â

WWC-B-B-NL

The Easy-Twist WWC-B-B-NL 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
The Easy-Twist WWC-Y-B-NL 500-Count Bag of Yellow Winged Wire Connectors are designed for use on copper wires in the 18-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires

WWC-Y-B-NL

The Easy-Twist WWC-Y-B-NL 500-Count Bag of Yellow Winged Wire Connectors are designed for use on copper wires in the 18-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires
The Easy-Twist WWC-T-B-NL 500-Count Bag of Tan Winged Wire Connectors are designed for use on copper wires in the 22-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.

WWC-T-B-NL

The Easy-Twist WWC-T-B-NL 500-Count Bag of Tan Winged Wire Connectors are designed for use on copper wires in the 22-10 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
The Easy-Twist WWC-R-B-NL 500-Count Bag of Red Winged Wire Connectors are designed for use on copper wires in the 22-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.

WWC-R-B-NL

The Easy-Twist WWC-R-B-NL 500-Count Bag of Red Winged Wire Connectors are designed for use on copper wires in the 22-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
WarriorWrap WW-SH-10 Gray Tinned Copper-Knit Shielding Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1 inch wide, 15ft long and is made from copper wire with a diameter of 5.12 mil. The tinned all-copper design is knitted for excellent conformability and doesn’t have any adhesive to make it faster and easier to apply. This tape is an excellent choice applications that require postiive metallic shielding.

WW-SH-10

WarriorWrap WW-SH-10 Gray Tinned Copper-Knit Shielding Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 1 inch wide, 15ft long and is made from copper wire with a diameter of 5.12 mil. The tinned all-copper design is knitted for excellent conformability and doesn’t have any adhesive to make it faster and easier to apply. This tape is an excellent choice applications that require postiive metallic shielding.
WarriorWrap WW-ARC-30 Gray Fire-Retardant Arc Proofing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 20ft long and has an unsupported, linerless design. When exposed to fire, the adhesive expands to create a char buildup which acts as a heat shield and flame barrier. The strong adhesion helps stick to uneven surfaces and provides comfortability when wrapping cables. Top breaking strength and elasticity make WarriorWrap an excellent choice in many professional applications.

WW-ARC-30

WarriorWrap WW-ARC-30 Gray Fire-Retardant Arc Proofing Tape is strong enough for professional environments and gets the job done right the first time, every time. This tape is 30mil thick, 20ft long and has an unsupported, linerless design. When exposed to fire, the adhesive expands to create a char buildup which acts as a heat shield and flame barrier. The strong adhesion helps stick to uneven surfaces and provides comfortability when wrapping cables. Top breaking strength and elasticity make WarriorWrap an excellent choice in many professional applications.

Frequently Asked Questions

What is the maximum operating voltage?

The WW-RMR-20 is rated for primary insulation up to 2kV.

What is the continuous operating temperature?

The continuous operating temperature is 194°F (90°C).

What is the emergency overload temperature?

The emergency overload temperature is 266°F (130°C).

Is the tape UV resistant?

Yes, the WW-RMR-20 is UV resistant.

Can the tape be used for direct burial?

Yes, the tape is suitable for direct burial and overhead applications.

What materials are used in the tape?

The tape consists of an EPR rubber backing and a mastic adhesive.

How should the tape be stored?

Store the tape in its original packaging, horizontally, under cover, and at temperatures between 5ºC and 35ºC.

What is the thickness of the tape?

The thickness of the WW-RMR-20 is 65 mils.

What are the recommended uses for this tape?

It is recommended for insulating and moisture-sealing splices and terminations on solid dielectric cable.

What is the shelf life of the product?

The shelf life of the WW-RMR-20 is 60 months from the date of manufacture.
