NSI Industries W62-1 - Aluminum Service Wedge Clamp for 2 - 6 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.
NSI Industries

W62-1

UPC: 662381082800

Contact for Pricing

Overview

The NSI Industries W62-1 is a robust Aluminum Service Wedge Clamp engineered for the reliable dead-ending of self-supporting drop wire. This connector is designed to significantly save conductor material, allowing the drop wire to be cut to the precise required length. Its versatile design permits attachment to a bare neutral conductor at any point along the span, offering unparalleled flexibility in installation. Adjustments to drop wire sag are easily managed, ensuring optimal system tension and performance. The W62-1 is constructed to effectively grip a variety of conductor types, including ACSR, AAAC, and standard aluminum conductors, making it a versatile solution for diverse overhead electrical applications. Manufactured by NSI Industries, this clamp boasts a temperature rating of 90°C and is rated for 600V, with a maximum rating of 2000V per UL486B. It is UL486A/B Listed as a wire connector, assuring compliance with stringent safety and performance standards. The W62-1 is made in the USA and is ideal for service entrance applications where secure and adjustable dead-ending is critical. Its compact dimensions (Length: 12.000", Width: 2.375") and robust construction ensure long-term reliability in demanding utility environments. Each unit is sold individually, with a standard carton quantity of 12.
  • Designed for dead-ending self-supporting drop wire.
  • Saves conductor by allowing precise cut to length.
  • Attaches to bare neutral at any point in the span.
  • Facilitates easy adjustment of drop wire sag.
  • Grips ACSR, AAAC, and aluminum conductors.

Specifications

Application
Dead Ending Self Supporting Drop Wire
Cable Size
2-6(ACSR) - 1 STR-6 SOL(Aluminum)
Color
Aluminum
Finish
Aluminum
Material
Aluminum
Size
L=12 - Diameter=2.375 IN
Size
2 - 6 ACSR
Special Features
Saves Conductor - Drop Wire May Be Cut To Exact Length
Type
Wedge Clamps
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
6.75 IN x 3.25 IN x 1 IN
Package Dimensions (L x W x H)
17.145 cm x 8.255 cm x 25.4 mm
Package Weight (Imperial)
0.170 L
Package Weight (Metric)
0.077 kg
Aluminum Service Flex Wedge Clamp for 2 - 6 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.

W62-1FC

Aluminum Service Flex Wedge Clamp for 2 - 6 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.

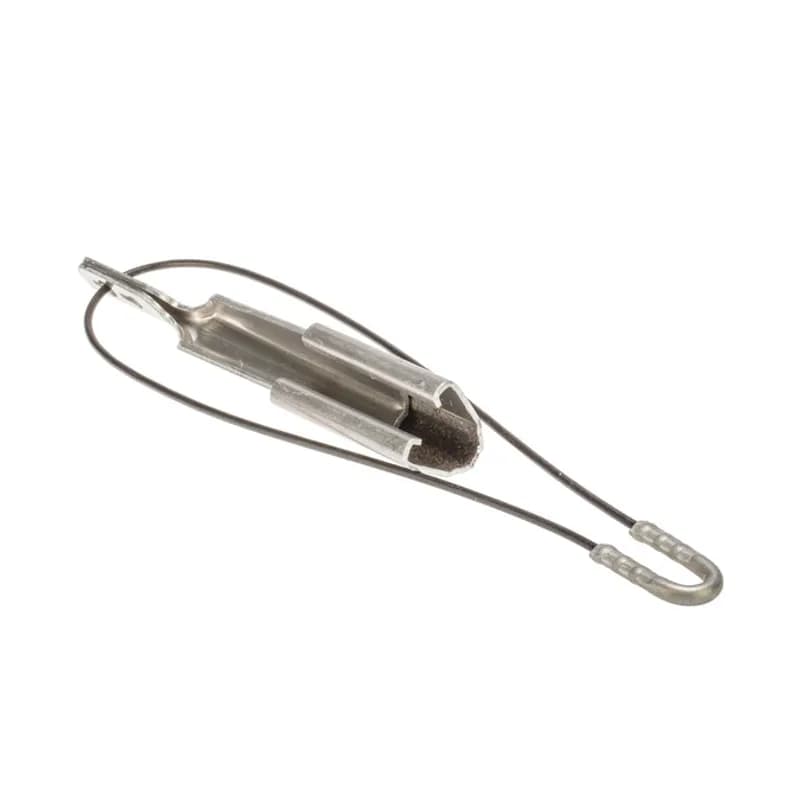

Aluminum Service Flex Wedge Clamp for 1/0 - 4 ACSR - 1 Count Aluminum Service Wedge Clamps are used for dead-ending self supporting drop wire. Saves conductor- drop wire may be cut to exact length. Can be attached to bare neutral in any point in the span. Adjustment in drop wire sag are easily made. Grips ACSR, AAAC or aluminum conductor. Temperature rating 90 degrees C. Rated for 600V (2000V max. per UL486B). UL486A/B Listed Wire Connector.
