NSI Industries
W402B
UPC: 786261350046
Contact for Pricing
Overview
- 7-day mechanical dial with 14 trippers (2 pairs/day)
- 40A rating at 208-277VAC, 60Hz
- 4PST configuration for independent 4-circuit control
- Minimum ON/OFF settings: 1hr ON / 2hr OFF
- Skip-a-day function and manual override with auto-resume
Specifications
Action | 4PST |
Application | NSI |
Base | Screw |
Connection Type | #8-#14 AWG |
Contact Rating | 208-277 VAC |
Current Rating | 40A |
Enclosure | NEMA 1 Metal Indoor |
Environmental Conditions | -40 to 165 F |
Frequency | 60Hz |
Frequency Rating | 60 Hz |
Initiation | Contact |
Material | Metal |
Mounting | Screw Mount |
Mounting Type | Indoor Enclosure |
Nema Rating | NEMA 1 |
Number Of Pins | 7 Pair |
Number Of Poles | 3 |
Operating Temperature | -40 to 165 F |
Phase | Single Phase |
Poles | 4PST |
Size | L=4.687 - H=7.937 - W=2.937 IN |
Special Features | 4PST 120 VAC 7 Day Time Switch With Manual Override |
Standard | UL-CSA |
Timing Range | 7 Day |
Type | 7 Day Time Switch |
Voltage Rating | 208-277V |
Voltage Rating | 208-277VAC |
Package Dimensions (L x W x H) | 3.25 IN x 7.625 IN x 11.875 IN |
Package Dimensions (L x W x H) | 8.255 cm x 19.3675 cm x 30.1625 cm |
Package Weight (Imperial) | 6.004 L |
Package Weight (Metric) | 2.723 kg |
LC200
Tork 2 Zone SPDT Lighting Control Use to control two different outdoor lighting circuits utilizing one photocell. Sign lighting can turn ON at one ambient light level while parking lot lighting turns ON at a different light level. APPLICATIONS: 24 Hour Convenience Stores Open Wall Parking Structures Large Canopies Building Perimeters Atriums FEATURES: INPUT VOLTAGE: 120/240/277VAC, 50/60Hz OUTPUT CONTACTS: SPDT NO. OF ZONES: 2 Zones TERMINAL RANGE: Relay #12AWG- input power terminals #14-#22AWG- TOD/sensor terminals accept #18-#22AWG. POWER CONSUMPTION: 5VA Maximum OPERATING TEMPERATURE: - 40 degrees to +140 degrees F (-40 degrees C to +60 degrees C) PHOTOSENSOR INPUT: EPC1 Included. DUAL OUTPUTS: With independent turn-ON adjustment for Stage 1 and Stage 2. LIGHT LEVEL ACTIVATION: Turn ON is user settable from 2 to 100 footcandle- Independent light level adjustment for each zone. Turn OFF is a maximum of 2 times turn ON level. Built-in delay ON of 30 seconds to avoid reaction to lightning or headlights. SWITCHED INPUT: Can be used with a time switch for photocell ON of two different lighting circuits at different ambient light levels, then time-of-day OFF. ENCLOSURE: Metal Indoor NEMA 1 with lockable hasp. MANUFACTURER: Tork, UPC: 786261821119 CONTACT RATINGS: GENERAL PURPOSE: 120/240 VAC NO: 20A NC: 10A 277 VAC NO: 12A BALLAST: 120 VAC NO: 20A NC: 10A 240/277 VAC NO: 6A NC: 3A TUNGSTEN: 120/240/277 VAC NO: 5A NC: 3A PILOT DUTY: 120/240 VAC NO: 470VA NC: 275VA 277 VAC NO: 690VA

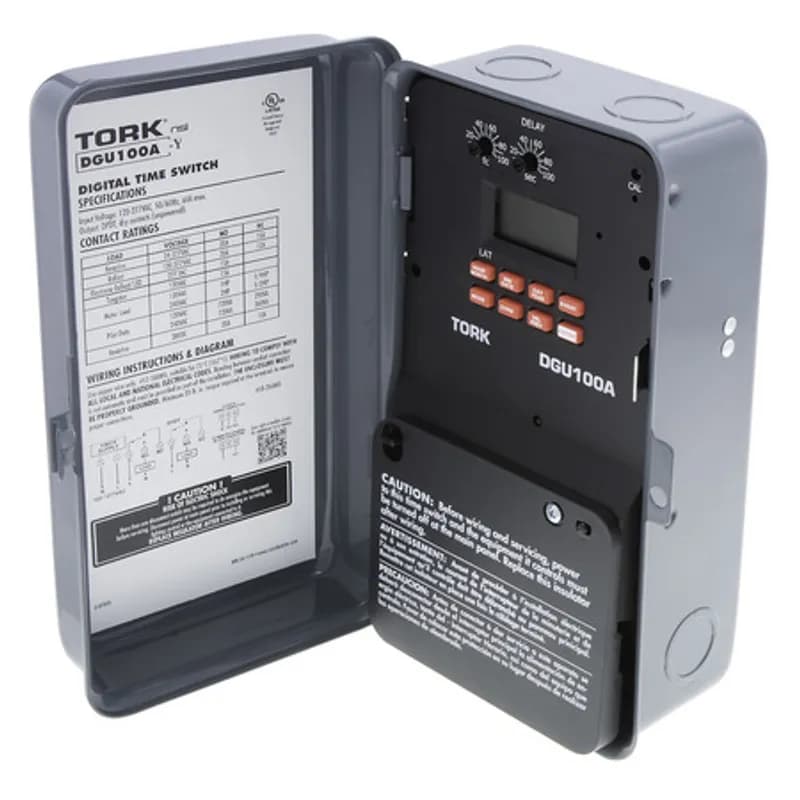

DGU100A-Y
