NSI Industries
TA880-N5
UPC: 786261960153
Contact for Pricing
Overview
- 120 VAC input voltage
- 96 dB sound output at 10 feet
- 15 candela visual alert
- Low current draw of 0.115 A
- 4" square surface mounting
- cULus certified for safety and reliability
Specifications
Application | Industrial Signal |
Color | White |
Color | Dawn Mist |
Connection Type | Low current draw wiring |
Connection Type | Separate horn wiring |
Current Rating | 0.115 A |
Dimensions | L=5.312 - H=5.312 - D=.687 IN |
Frequency | 50/60 Hz |
Loudness | 96 db At 10 Feet |
Material | Thermoplastic |
Mounting | Indoor-Outdoor Box |
Mounting Type | 4" square surface mounting |
Mounting Type | Surface Mounting |
Operating Voltage | 120 VAC |
Poles | 2 Channel |
Series | Tork |
Series | TA880 |
Size | 4" Square |
Special Features | High Performance High Sound Output With Low Current Draw |
Standard | cULus |
Tone | Mechanical Sound |
Type | Mechanical Strobe Horn |
Voltage Rating | 120 VAC |
Package Dimensions (L x W x H) | 2.25 IN x 4 IN x 4 IN |
Package Dimensions (L x W x H) | 5.715 cm x 10.16 cm x 10.16 cm |
Package Weight (Imperial) | 2.000 L |
Package Weight (Metric) | 0.907 kg |

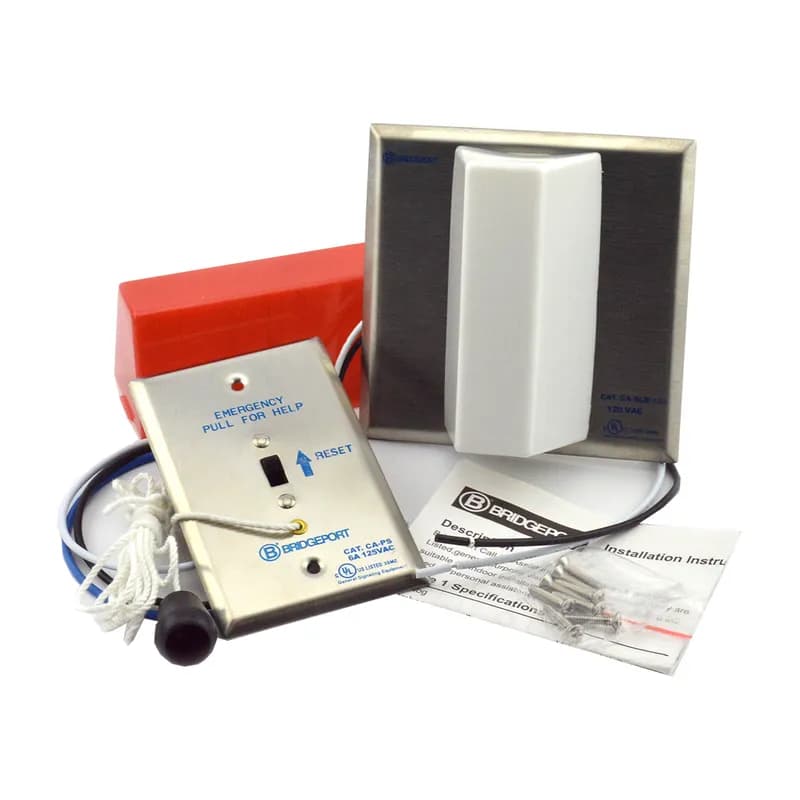

CA-101-120
Call for Assistance 120 VAC Dome Light with Buzzer, Red and White Lens, Activation Switch and Transformer
Frequently Asked Questions
What is the sound output of the NSI TA880-N5 horn?
The NSI TA880-N5 horn provides a sound output of 96 dB at 10 feet.
What is the candela rating for the strobe on the TA880-N5?
The strobe on the NSI TA880-N5 has a candela rating of 15.
What is the input voltage for the NSI TA880-N5 horn/strobe?
The NSI TA880-N5 horn/strobe operates on 120 VAC.
What is the current draw of the TA880-N5 unit?
The NSI TA880-N5 has a low current draw of 0.115 amps.
How is the NSI TA880-N5 mounted?
The NSI TA880-N5 is designed for 4" square surface mounting.
Can the NSI TA880-N5 be used outdoors?
For outdoor use, the NSI TA880-N5 unit must be mounted in a TA-WBBF outdoor backbox.
What certifications does the TA880-N5 have?
The NSI TA880-N5 is cULus certified.
How to Install the NSI TA880-N5 Horn/Strobe
Step-by-step guide for mounting and wiring the NSI TA880-N5 horn/strobe unit.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Wire connectors
Supplies needed:
Mounting screws, Appropriate gauge wire, TA-WBBF outdoor backbox (if applicable)
- Prepare Mounting Location
Ensure the mounting surface is clean and level. If installing outdoors, first mount the TA-WBBF outdoor backbox according to its instructions.
- Mount the Unit
Align the NSI TA880-N5 with the 4" square mounting box or the installed backbox. Secure the unit using appropriate mounting screws.
- Wire the Unit
Connect the power supply wires to the appropriate terminals on the unit. The horn can be wired separately for installation flexibility. Refer to the wiring diagram in the product manual for specific connections.
- Test the Unit
After wiring is complete, restore power and test both the horn and strobe functions to ensure proper operation.
