NSI Industries SS410 - Interval Timer 24Hr 24V White
NSI Industries

SS410

UPC: 786261140333

Documents & Media
Technical BulletinSpecification Sheet

Contact for Pricing

Overview

Tork Digital Interval Timer 3-Way APPLICATIONS: Offices, Meeting Rooms, Energy Code Timed Override, Exhaust Fans, Equipment Rooms, Closets, Storage Spaces. Multiple circuits with power packs- low voltage for class 2 wiring. FEATURES: COLOR: White (single gang decorator wall plate included) ENERGY CODE PRESET: 2 hour timing for Title 24 and IECC (default) 4 hour timing for ASHRAE 90.1 (with quick dip switch adjustment) PROGRAMMABLE: 5 minutes to 25 hour: 5 minute steps from 5 minutes to 1 hour 10 minute steps from 1 to 4 hours 30 minute steps from 4 to 12 hours 1 hour steps from 12 to 24 hours SCROLL LOCK: Limits user adjustment to a maximum equal to the preset time. FLASH WARNING: Optional one second flicker turns load OFF/ON 2 minutes end of time cycle BEEPER WARNING: Optional beep with sound every 15 seconds during last 2 minutes of the time cycle TAMPER RESISTANT: Wall plate locks access to dip switch adjustments THREE-WAY & MULTI-WAY: Three-way compatible with existing switch. Multi-way requires momentary switches at the additional locations. Maximum distance 100 feet DISPLAY: Backlit LCD Display WIRING: No neutral required. CONTACT RATINGS: VOLTAGE: 24VDC or 24VAC 50/60 Hz RATING: 1A Max MINIMUM LOAD: 1 ma @ 5V WIRE SIZE: #18 AWG OPERATING TEMPERATURE: 32 degrees F to + 104 degrees F (0 degrees C to + 40 degrees C)

    Specifications

    Action
    SPDT
    Application
    NSI
    Contact Configuration
    SPDT
    Contact Rating
    24 VDC/24 VAC
    Enclosure
    Single Gang Wall Plate
    Environmental Conditions
    32 to +104 F
    Frequency Rating
    50-60 Hz
    Mounting
    Single Gang Wall Plate
    Number Of Poles
    1
    Operating Temperature
    32 to +104 F
    Operating Temperature, Maximum
    104 F
    Operating Temperature, Maximum
    40 C
    Operating Temperature, Minimum
    32 F
    Phase
    Single Phase
    Size
    H=5.00 - W=3.00 IN
    Special Features
    Energy Code Presets-Scroll Lock-Flash, Beeper Warnings-Tamper Resistant
    Standard
    cULus
    Timing Range
    24 Hour
    Type
    Digital Auto Off In Wall Timer
    Package Dimensions (L x W x H)
    1.685 IN x 1.295 IN x 2.664 IN
    Package Dimensions (L x W x H)
    4.2799 cm x 3.2893 cm x 6.7666 cm
    Package Weight (Imperial)
    0.392 L
    Package Weight (Metric)
    0.178 kg
    The TORK C512H 12-Hour Spring-Wound In-Wall Twist Timer with a commercial-style metal faceplate is designed to control a variety of indoor appliances, motors and lights. Automate factories, offices or other buildings to save energy and money using the simple twist knob and reliable mechanical timekeeping. Fits into a standard electrical box for in-wall mounting. Designed for SPDT switch type on indoor loads such as ventilation fans, lighting, HVAC systems, motors, pumps or air compressors.

    C512H

    The TORK C512H 12-Hour Spring-Wound In-Wall Twist Timer with a commercial-style metal faceplate is designed to control a variety of indoor appliances, motors and lights. Automate factories, offices or other buildings to save energy and money using the simple twist knob and reliable mechanical timekeeping. Fits into a standard electrical box for in-wall mounting. Designed for SPDT switch type on indoor loads such as ventilation fans, lighting, HVAC systems, motors, pumps or air compressors.
    The TORK A512HW 12-Hour Spring-Wound In-Wall Twist Timer is designed to control a variety of indoor appliances and lights. Automate your home or office to save energy and money using the simple twist knob and reliable mechanical timekeeping. Features a time range of 30 minutes to 6 hours and fits into a standard electrical box for in-wall mounting. Designed for indoor loads such as lights, whole house fans, air compressors, water heaters or motors.

    A512HW

    The TORK A512HW 12-Hour Spring-Wound In-Wall Twist Timer is designed to control a variety of indoor appliances and lights. Automate your home or office to save energy and money using the simple twist knob and reliable mechanical timekeeping. Features a time range of 30 minutes to 6 hours and fits into a standard electrical box for in-wall mounting. Designed for indoor loads such as lights, whole house fans, air compressors, water heaters or motors.
    The TORK A506HW 6-Hour Spring-Wound In-Wall Twist Timer is designed to control a variety of indoor appliances and lights. Automate your home or office to save energy and money using the simple twist knob and reliable mechanical timekeeping. Features a time range of 30 minutes to 6 hours, plus it fits into a standard electrical box for in-wall mounting. Designed for indoor loads such as lights, whole house fans, air compressors, water heaters or motors.

    A506HW

    The TORK A506HW 6-Hour Spring-Wound In-Wall Twist Timer is designed to control a variety of indoor appliances and lights. Automate your home or office to save energy and money using the simple twist knob and reliable mechanical timekeeping. Features a time range of 30 minutes to 6 hours, plus it fits into a standard electrical box for in-wall mounting. Designed for indoor loads such as lights, whole house fans, air compressors, water heaters or motors.
    Mechanical Time Switch White

    701B

    Mechanical Time Switch White
    The TORK DGLC200A-NC 24-Hour/7-Day SunSet Astronomic Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features two output channels with automatic voltage detection. Designed for commercial applications including signage, window lights, security or parking lot lights and warehouses.

    DGLC200A-NC

    The TORK DGLC200A-NC 24-Hour/7-Day SunSet Astronomic Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features two output channels with automatic voltage detection. Designed for commercial applications including signage, window lights, security or parking lot lights and warehouses.
    The TORK EWZ120 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface to activate lights or signage. Features one SPDT output channel with automatic voltage detection. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

    EWZ120

    The TORK EWZ120 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface to activate lights or signage. Features one SPDT output channel with automatic voltage detection. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
    The TORK EWZ201C 7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to turn on lights or signage when the ambient light level drops below a customizable threshold. Use the software interface to choose between 2 variable SPST channels or 1 DPST channel. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

    EWZ201C

    The TORK EWZ201C 7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to turn on lights or signage when the ambient light level drops below a customizable threshold. Use the software interface to choose between 2 variable SPST channels or 1 DPST channel. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
    The TORK DLC400BP SunSet 365-Day Astronomic Digital Timer is designed for providing total control over 4 different output channels in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four output channel, different settings for holidays and seasons and a 6-month battery backup. Designed for commercial applications including lighting, HVAC equipment, signage, store windows and security or parking lot lights.

    DLC400BP

    The TORK DLC400BP SunSet 365-Day Astronomic Digital Timer is designed for providing total control over 4 different output channels in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four output channel, different settings for holidays and seasons and a 6-month battery backup. Designed for commercial applications including lighting, HVAC equipment, signage, store windows and security or parking lot lights.
    365 Day Astro Digital Timer 2CH

    DZS200BP

    365 Day Astro Digital Timer 2CH
    The TORK DMZ100B 365/7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

    DWZ100B

    The TORK DMZ100B 365/7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
    The TORK 642E 24-Hour Heavy-Duty Digital Plug-In Lighting and Appliance Timer features 2 grounded outlets and a clear raintight cover for the digital screen and programming buttons. Automate your home or office using up to 20 On/Off cycles in the daily or weekly scheduling modes. Designed for applications including landscape or holiday lights and small outdoor appliances.

    642E

    The TORK 642E 24-Hour Heavy-Duty Digital Plug-In Lighting and Appliance Timer features 2 grounded outlets and a clear raintight cover for the digital screen and programming buttons. Automate your home or office using up to 20 On/Off cycles in the daily or weekly scheduling modes. Designed for applications including landscape or holiday lights and small outdoor appliances.

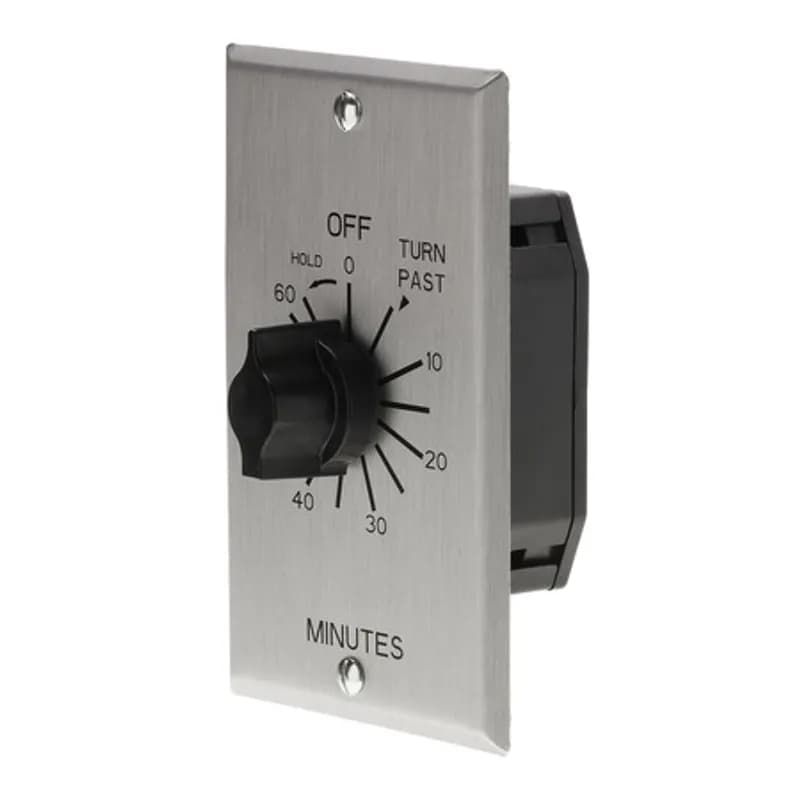

    The TORK C560MH 60-Minute Spring-Wound In-Wall Twist Timer with a commercial-style metal faceplate is designed to control a variety of indoor appliances, motors and lights. Automate factories, offices or other buildings to save energy and money using the simple twist knob and reliable mechanical timekeeping. Features a HOLD setting to keep power on and fits into a standard electrical box for in-wall mounting. Designed for SPDT switch type on indoor loads such as ventilation fans, lighting, HVAC systems, motors, pumps or air compressors.
