Overview

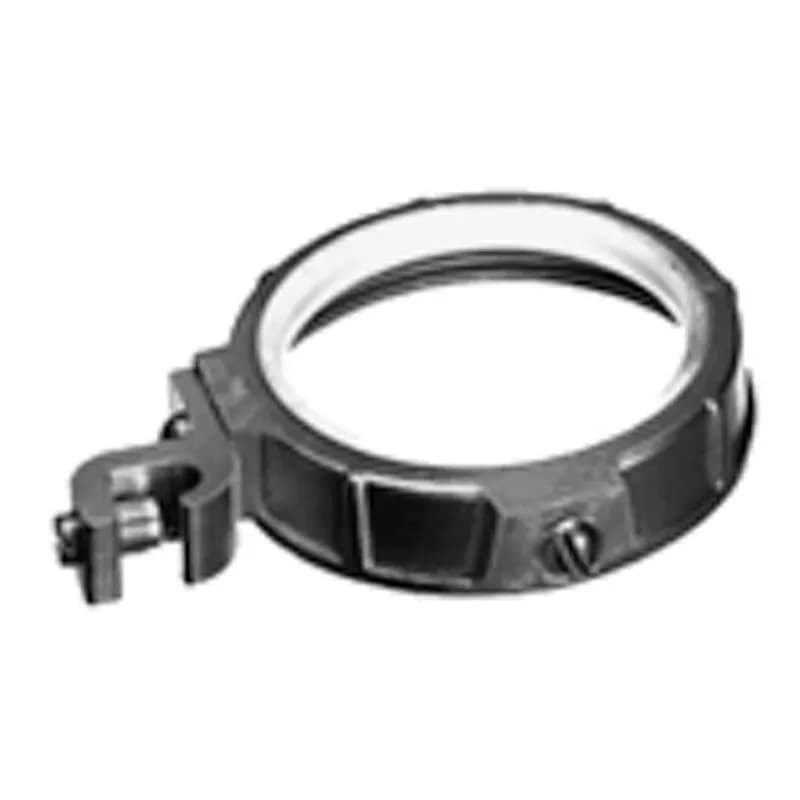

- 4-inch zinc die cast insulated grounding split bushing
- Accommodates 14 AWG to 1/0 AWG CU/AL wire range
- 150°C rated insulator reduces wire abrasion
- Split design for post-wire-pull installation
- Integral grounding lug for secure connection
Specifications
Application | Used in situations where wires have already been pulled through Rigid/IMC conduit, and an insulated bushing is required. Rated 150 Degree C. cULus listed. Patented. Now featuring UV Stabilized Insulators and Stainless Steel Hardware, perfect for solar and other outdoor installations! |
Color | Grey with Black Insulator |
Finish | Ball burnish |
Material | Zinc alloy |
Size | 4 IN |
Special Features | Grounding Lug Wire Capacity #6 - 250MCM |
Standard | cULus |
Temperature Rating | 150?°C |
Trade Size | 4 in |
Type | Split |
Package Weight (Imperial) | 0.562 L |
Package Weight (Metric) | 0.255 kg |
Frequently Asked Questions
What is the standard package quantity for the SGB-390CL?
The standard package quantity for the SGB-390CL is 20 units.
What are the dimensions of the SGB-390CL?
Dimension A is 2.99 in, B is 4.25 in, C is 0.73 in, D is 3.87 in, and E is 5.00 in.
What is the trade size of the SGB-390CL bushing?
The trade size of the SGB-390CL bushing is 4 inches.
What are the key certifications for the SGB-390CL?
It is CULus Listed and complies with Federal Specification A-A-50553, NEMA Standard FB-1, and UL Standard UL-514B.
What material is the SGB-390CL made from?
The SGB-390CL is made from Zinc Alloy.
Is the SGB-390CL suitable for outdoor installations?
Yes, it features UV Stabilized Insulators and Stainless Steel Hardware, making it perfect for solar and other outdoor installations.
What is the maximum temperature rating for the SGB-390CL?
The SGB-390CL is rated for a maximum temperature of 150 degrees C.
What is the primary application of the SGB-390CL?
It is used when wires have already been pulled through Rigid/IMC conduit or EMT Fittings, and an insulated grounding bushing is required.
Is the SGB-390CL suitable for outdoor installations?
Yes, it features UV Stabilized Insulators and Stainless Steel Hardware, making it perfect for solar and other outdoor installations.
What is the standard package quantity for the SGB-390CL?
The standard package quantity for the SGB-390CL is 20 units.
How to Install the Mighty-BOND™ Split Grounding/Bonding Bushing
This guide details the installation of the Mighty-BOND™ Split Grounding/Bonding Bushing, a UL Listed component for threaded Rigid or Intermediate Metal Conduit and fittings. Its unique split design allows for installation after conductors have been pulled, ensuring compliance with NEC Articles 250.64, 250.92, 344.46, and 300.4(G).
Estimated time: 15m
Tools needed:
Screwdriver
Supplies needed:
Grounding or bonding conductor
- Position the Bushing
Open the Mighty-Bond™ split bushing and carefully place it around the existing conductors. Position the bushing onto the threaded end of the Rigid Metal Conduit (RMC), Intermediate Metal Conduit (IMC), or fitting.
- Close and Align the Bushing
Ensure the set screw is backed out sufficiently. Close the Mighty-Bond™ bushing halves fully around the threaded conduit or fitting. Align the bushing to easily access the set screw, grounding lug, and hinge screw. Verify the bushing is seated as far down on the conduit or fitting threads as possible.
- Secure the Bushing
First, tighten the hinge screw. Then, tighten the set screw. If applicable, tighten the enclosure bonding screw. Ensure all these screws are tightened to the UL Torque requirement of 35 in-lb.
- Connect the Grounding Conductor
Insert the appropriately sized grounding or bonding conductor into the bushing's lug. Tighten the lug screw according to the UL Recommended torque specifications: 35 in-lb for 10-14 AWG Copper/10-12 AWG Aluminum, 40 in-lb for 8 AWG, 45 in-lb for 4-6 AWG, and 50 in-lb for 2/0-3 AWG.
