NSI Industries RSF-5004 - Festoon Cable Connector, alum, 1-1/2" NPT, cable range 1.13 x .22
NSI Industries

RSF-5004

UPC: 785411103280

Contact for Pricing

Overview

The NSI Industries RSF-5004 Festoon Cable Connector is designed for secure and reliable cable management in industrial settings. Constructed from durable aluminum, this connector ensures longevity and resistance to environmental factors. It features a 1-1/2 inch NPT threaded connection, providing a standard and robust interface for integration into existing systems. The connector is specifically engineered to accommodate a cable range of 1.13 inches by 0.22 inches, offering a precise fit for specified cable dimensions. This precise sizing is crucial for maintaining cable integrity and preventing strain or damage, which is essential for continuous operation in demanding applications. The RSF-5004 is an integral component for maintaining organized and protected cable runs, particularly in overhead or moving applications where festoon systems are employed. Its aluminum construction offers a good balance of strength and weight, making installation manageable while ensuring dependable performance. The 1-1/2" NPT fitting simplifies the connection process, allowing for quick and secure attachment to conduit or enclosures. This connector is vital for ensuring electrical safety and operational efficiency by properly terminating and protecting flexible cables used in automated machinery, material handling systems, and other industrial automation scenarios.
  • Durable aluminum construction for industrial environments
  • 1-1/2 inch NPT threaded connection for standard integration
  • Accommodates cable range of 1.13" x 0.22" for precise fit
  • Ensures secure and reliable cable management
  • Ideal for festoon cable systems in industrial automation

Specifications

Environmental Conditions
Flammability: UL 94V-2
Material
Aluminum
Material Quality
Aluminum
Operating Temperature, Maximum
250 F
Operating Temperature, Maximum
121.1111 °C
Operating Temperature, Minimum
-40 F
Operating Temperature, Minimum
-40 °C
Series
RSF
Size
1-1/2" NPT
Temperature Rating
-40 to 121 Deg C C
Package Dimensions (L x W x H)
2.53 IN x 2.47 IN x 1.84 IN
Package Dimensions (L x W x H)
6.4262 cm x 6.2738 cm x 4.6736 cm
Package Weight (Imperial)
0.135 L
Package Weight (Metric)
0.061 kg
Cord Grip, alum, 3-1/2" NPT, cable range 3.335 - 3.530

RSR-1153

Cord Grip, alum, 3-1/2" NPT, cable range 3.335 - 3.530

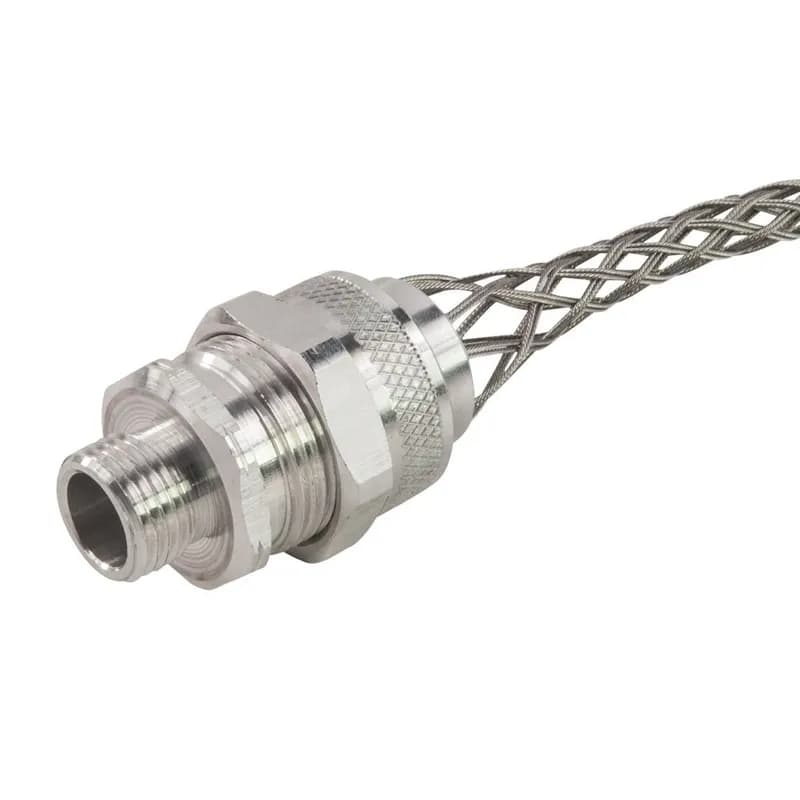

Cord Grip with ISO Metric thread, alum, M25, cable range .562 - .625 with mesh

RSM-25210-E

Cord Grip with ISO Metric thread, alum, M25, cable range .562 - .625 with mesh

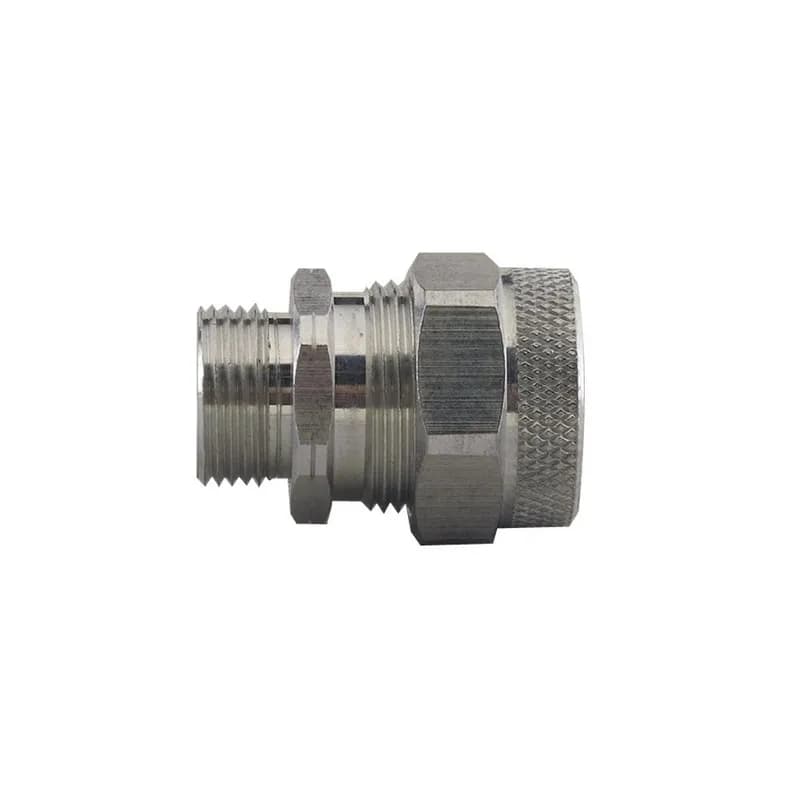

Cord Grip with ISO Metric thread, alum, M16, cable range .188 - .250, Form Size 2

RSM-16104

Cord Grip with ISO Metric thread, alum, M16, cable range .188 - .250, Form Size 2

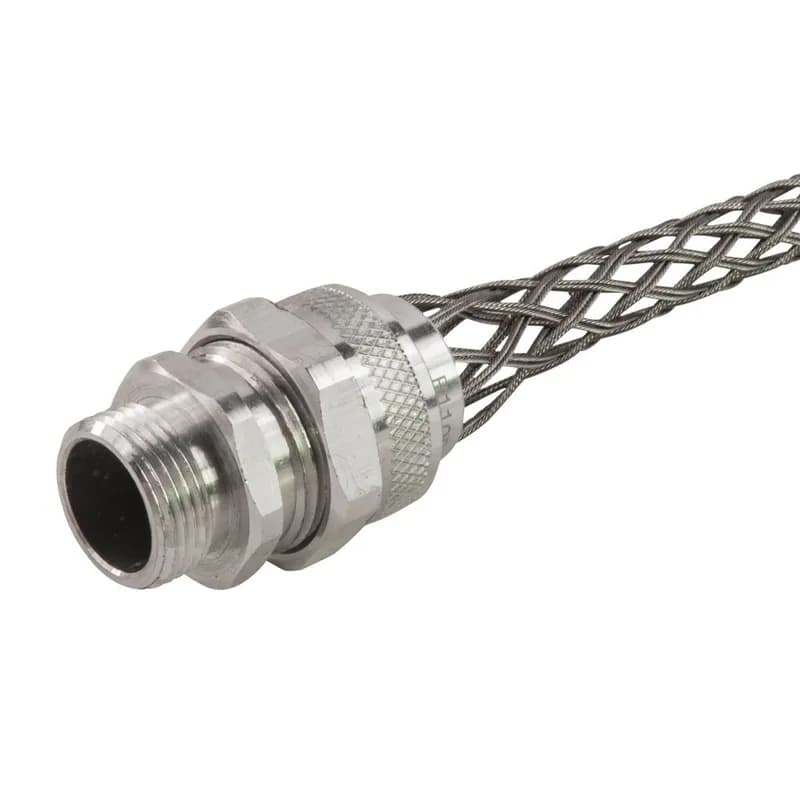

Cord Grip with PG thread, alum, PG21, cable range .688 - .812 with mesh

RPG-21313-E

Cord Grip with PG thread, alum, PG21, cable range .688 - .812 with mesh

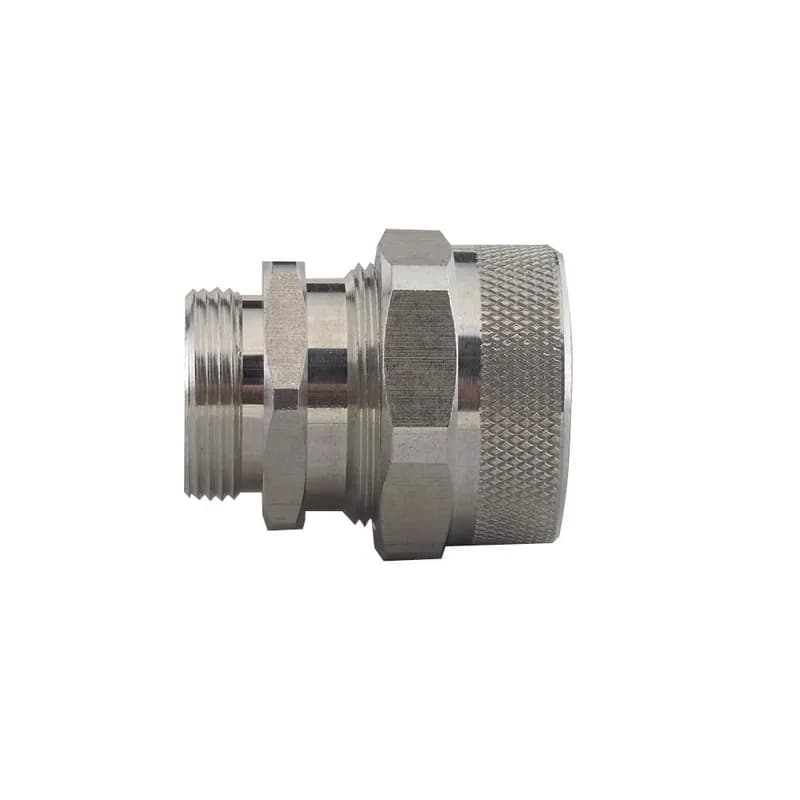

Cord Grip with PG thread, alum, PG42, cable range 1.250 - 1.375

RPG-42622

Cord Grip with PG thread, alum, PG42, cable range 1.250 - 1.375

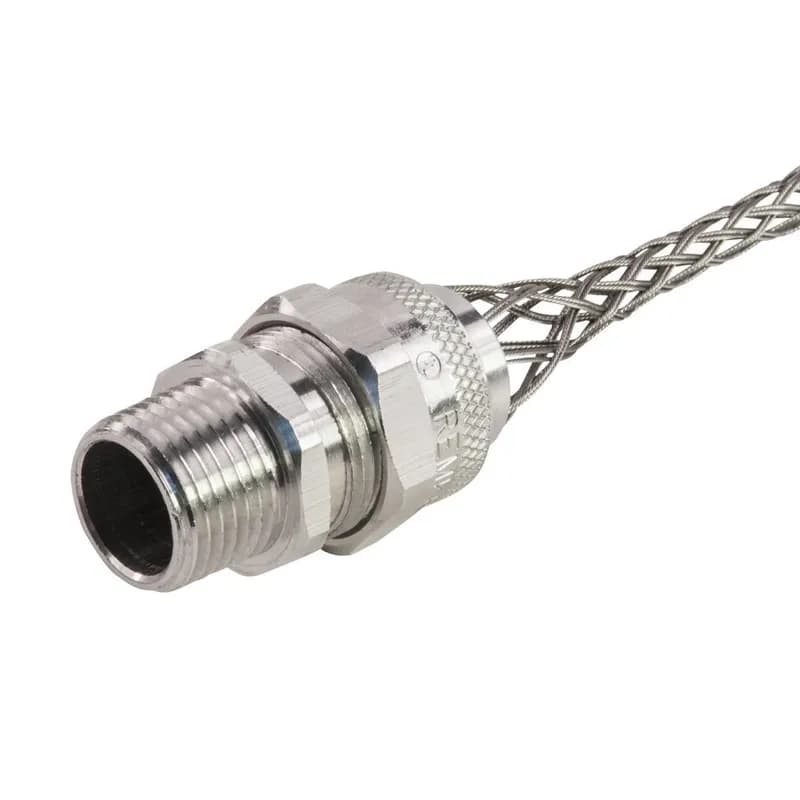

Cord Grip, alum, 1-1/4" NPT, cable range 1.00 - 1.125 with mesh

RSR-418-E

Cord Grip, alum, 1-1/4" NPT, cable range 1.00 - 1.125 with mesh
Cord Grip with ISO Metric thread, alum, M16, cable range .312 - .375, Form Size 1

RSM-161006

Cord Grip with ISO Metric thread, alum, M16, cable range .312 - .375, Form Size 1
Festoon Cable Connector, alum, 2" NPT, cable range 1.50 x .469

RSF-6013

Festoon Cable Connector, alum, 2" NPT, cable range 1.50 x .469

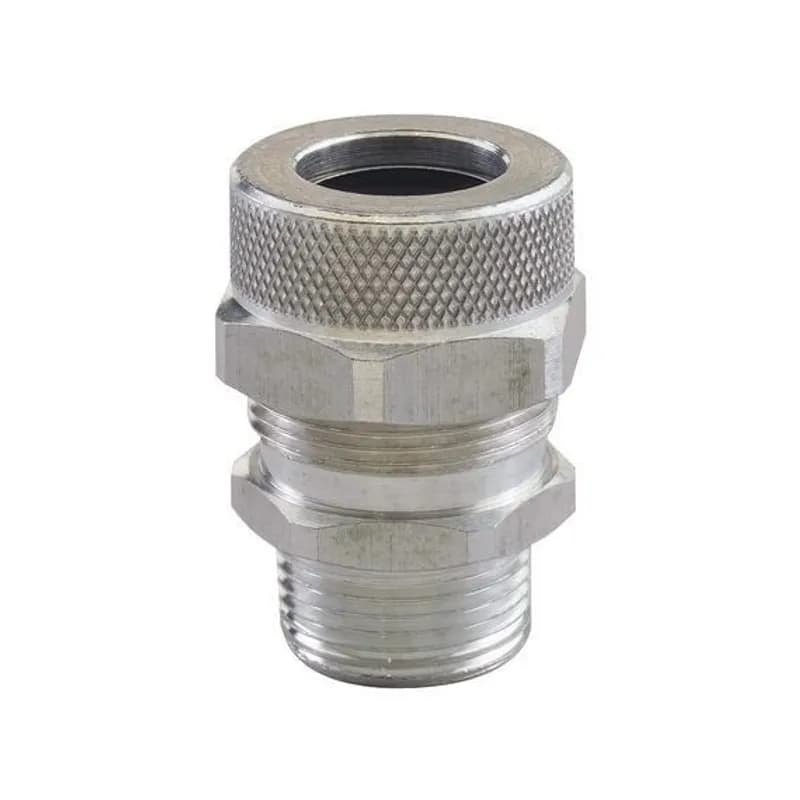

Cord Grip, alum, 3/4" NPT, cable range .250 - .312

RSR-2105

Cord Grip, alum, 3/4" NPT, cable range .250 - .312

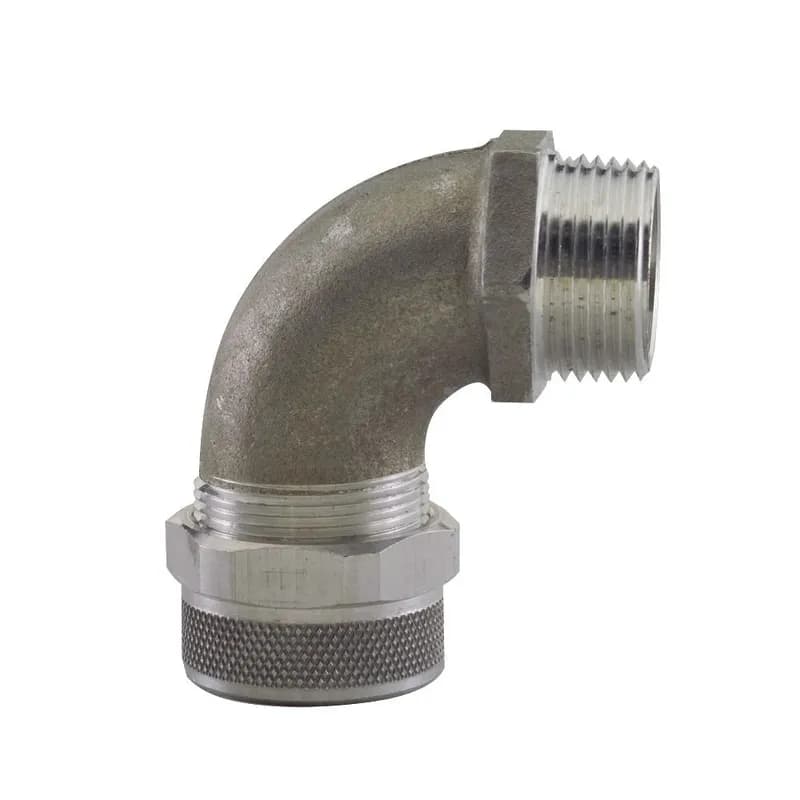

Cord Grip, alum, 90 deg, 2" NPT, cable range 1.250 - 1.375
