NSI Industries R6-56N-BULK - 6 AWG Nylon Insulated Ring 5/16" Stud - 250 Per Pack
NSI Industries

R6-56N-BULK

UPC: 662381681874

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

NSI Industries R6-56N-BULK is a 6 AWG nylon insulated ring terminal featuring a 5/16" stud size. This terminal is constructed from electro tin-plated copper with a brazed seam, ensuring reliable conductivity and durability. The easy-entry nylon insulation provides a secure connection that cannot be disconnected without completely removing the screw, enhancing safety. It is rated for 600V and a maximum insulation temperature of 105°C (221°F), meeting UL 94 HB flammability standards. The metal insulation grip sleeve crimps to the wire insulation, offering crucial protection and strain relief for the crimp joint, especially in high vibration applications. Internal barrel serrations are designed to maximize wire contact and tensile strength. This bulk pack contains 250 units, making it an economical choice for large-scale installations. Ideal for electrical connections requiring secure and robust termination in demanding environments. Manufacturer: NSI Industries. SKU: R6-56N-BULK. UNSPSC Code: 39121447.
  • 6 AWG wire range
  • 5/16" stud size
  • Nylon insulation for 600V and 105°C operation
  • Electro tin-plated copper with brazed seam
  • Metal insulation grip sleeve for strain relief and vibration resistance

Specifications

Application
Wire Termination
Color
Blue
Environmental Conditions
105° C
Material
Nylon
Material
Nylon Insulation
Number Of Terminals
1
Size
6 AWG
Special Features
Nylon Insulated Ring Terminal 6 AWG - 250 Pack
Standard
cULus
Terminal Size
5/16 IN
Type
Nylon Insulated Ring Terminal
Voltage Rating
600 V
Warranty
1 Year
Wire Size
6 AWG
Package Dimensions (L x W x H)
1.355 IN x 0.64 IN x 0.184 IN
Package Dimensions (L x W x H)
3.4417 cm x 16.256 mm x 4.6736 mm
Package Weight (Imperial)
0.218 L
Package Weight (Metric)
0.099 kg
6 AWG Nylon Insulated Ring 5/16" Stud - 15 Per Pack

R6-56N

6 AWG Nylon Insulated Ring 5/16" Stud - 15 Per Pack
6 AWG Nylon Insulated Ring 1/4" Stud - 15 Per Pack

R6-14N

6 AWG Nylon Insulated Ring 1/4" Stud - 15 Per Pack
6 AWG Nylon Insulated Ring 1/2" Stud, 15 Per Pack

R6-50N

6 AWG Nylon Insulated Ring 1/2" Stud, 15 Per Pack
6 AWG Nylon Insulated Ring 3/8" Stud, 15 Per Pack

R6-38N

6 AWG Nylon Insulated Ring 3/8" Stud, 15 Per Pack
6 AWG Bare Ring # 10 Stud, 15/Pack

R6-10

6 AWG Bare Ring # 10 Stud, 15/Pack
16-14 AWG Nylon Insulated Female Disc .110X.020 Tab, 100/Pack

F16-110-2N

16-14 AWG Nylon Insulated Female Disc .110X.020 Tab, 100/Pack
FULly Nylon Insulated Female Disconnects, 50/Pack

IF16-250-3N-IG

FULly Nylon Insulated Female Disconnects, 50/Pack

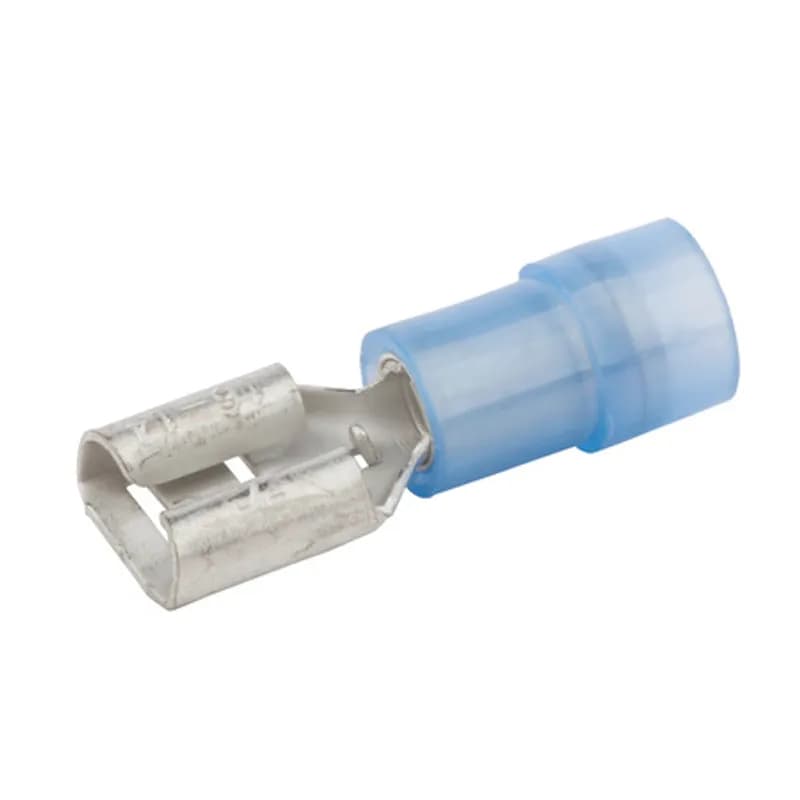

16-14 AWG Nylon Insulated Female Disc .250X.032 Tab, Bulk

F16-250-3N-BULK

16-14 AWG Nylon Insulated Female Disc .250X.032 Tab, Bulk
16-14 AWG Nylon Insulated Ring 3/8" Stud, 50 Per Pack

R16-38N

16-14 AWG Nylon Insulated Ring 3/8" Stud, 50 Per Pack
16-14 AWG, .250 x .030 Tab Fully Insulated Female Nylon, 50/Pack

IF16-250-3N

16-14 AWG, .250 x .030 Tab Fully Insulated Female Nylon, 50/Pack
16-14 AWG Nylon Insulated Ring 1/4"Stud - 100 Per Pack

R16-14N

16-14 AWG Nylon Insulated Ring 1/4"Stud - 100 Per Pack

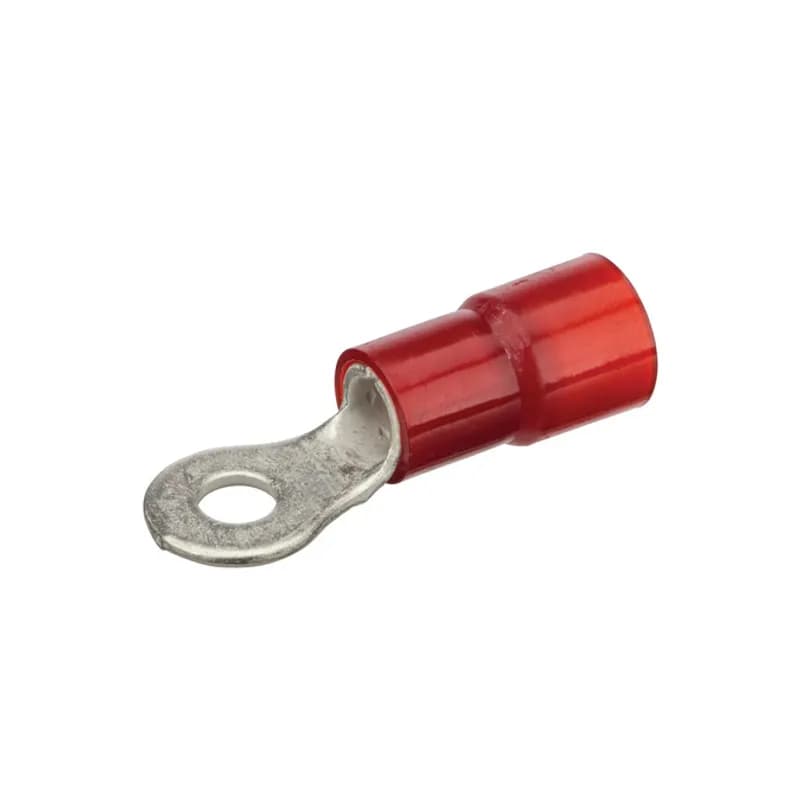

8 AWG Nylon Insulated Ring #10 Stud, 25 Per Pack
