NSI Industries P22-250-3V-BULK - 22-18 AWG Vinyl Insulated Piggyback, 1,000 Per Pack
NSI Industries

P22-250-3V-BULK

UPC: 662381303806


Documents & Media
Technical Bulletin

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Overview

The NSI Industries P22-250-3V-BULK is a bulk pack of 1,000 vinyl-insulated piggyback connectors designed for electrical wiring applications. These connectors are specifically engineered to accommodate wire gauges from 22 to 18 AWG, providing a secure and reliable connection point. The piggyback design allows for a secondary connection to be made without interrupting the primary circuit, making it ideal for daisy-chaining or adding branch circuits. The vinyl insulation offers a standard level of electrical protection and durability for general-purpose use. This bulk packaging is cost-effective for projects requiring a significant number of connectors, ensuring availability and reducing the need for frequent reordering. The SKU P22-250-3V-BULK signifies its specific configuration and packaging quantity. These connectors are a fundamental component in various electrical installations where reliable, temporary, or secondary connections are required. The material composition and insulation type are critical for ensuring safe and efficient electrical conductivity and preventing short circuits. The 22-18 AWG size range makes them versatile for use with common control wiring, low-voltage systems, and other applications within this gauge specification.
  • 22-18 AWG wire gauge compatibility
  • Durable vinyl insulation
  • Piggyback connector design for secondary connections
  • Bulk pack of 1,000 units
  • Manufactured by NSI Industries

Specifications

Application
Wire Termination
Color
Red
Environmental Conditions
75° C
Material
Vinyl Insulation
Number Of Terminals
1
Special Features
Vinyl Insulated Piggyback 22-18 AWG - 1,000 Pack
Standard
cULus
Terminal Size
.250 x .032 IN
Type
Vinyl Insulated Piggyback
Voltage Rating
300 V
Warranty
1 Year
Wire Size
22-18 AWG
Package Dimensions (L x W x H)
0.826 IN x 0.259 IN x 0.036 IN
Package Dimensions (L x W x H)
20.9804 mm x 6.5786 mm x 0.9144 mm
Package Weight (Imperial)
0.134 L
Package Weight (Metric)
0.061 kg
22-18 AWG Vinyl Insulated Ring 3/8" Stud, 100 Per Pack

R22-38V

22-18 AWG Vinyl Insulated Ring 3/8" Stud, 100 Per Pack
22-18 AWG Vinyl Insulated Spade #8 Stud, 100 Per Pack

S22-8V

22-18 AWG Vinyl Insulated Spade #8 Stud, 100 Per Pack
22-18 AWG Vinyl Insulated Butt Splice, Bulk

B22-V-BULK

22-18 AWG Vinyl Insulated Butt Splice, Bulk
22-18 AWG Vinyl Insulated Pin Terminal, 100/Pack

PT-22V

22-18 AWG Vinyl Insulated Pin Terminal, 100/Pack
22-18 AWG Vinyl Insulated Spade #4 Stud, 100 Per Pack

S22-4V

22-18 AWG Vinyl Insulated Spade #4 Stud, 100 Per Pack
22-18 AWG Vinyl Insulated Spade 1/4"Stud, 100 Per Pack

S22-14V

22-18 AWG Vinyl Insulated Spade 1/4"Stud, 100 Per Pack
22-18 AWG Vinyl Insulated Pin Terminal, 1,000 Per Pack

PT-22V-BULK

22-18 AWG Vinyl Insulated Pin Terminal, 1,000 Per Pack
22-18 AWG Vinyl Insulated Spade #6 Stud, 100 Per Pack

S22-6V

22-18 AWG Vinyl Insulated Spade #6 Stud, 100 Per Pack
22-18 AWG Vinyl Insulated Female Disc .187X.032 Tab, 100 Per Pack

F22-187-3V

22-18 AWG Vinyl Insulated Female Disc .187X.032 Tab, 100 Per Pack

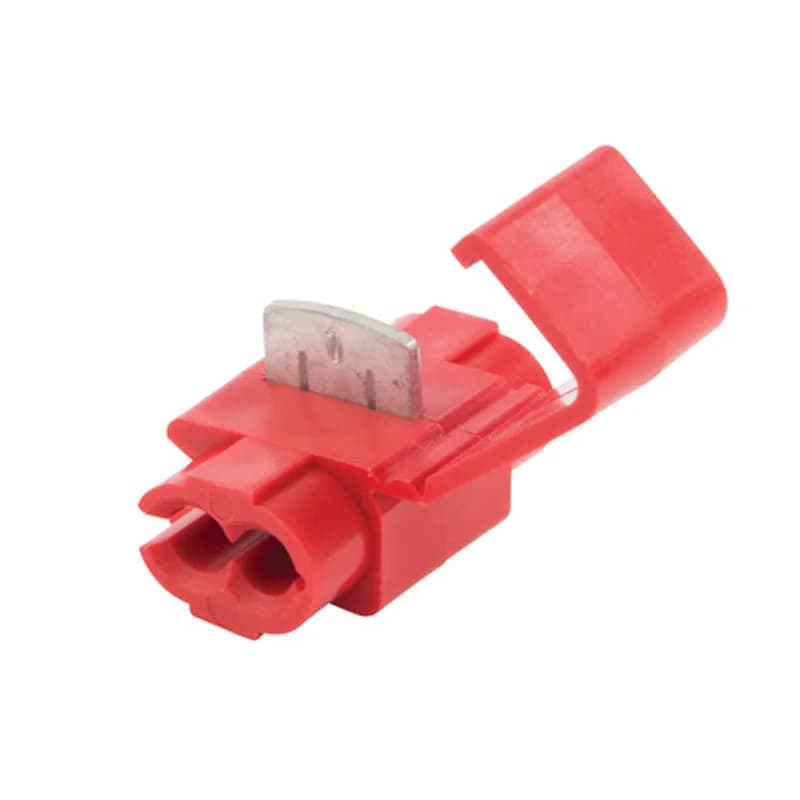

22-18 AWG Plier Tap Conn, 25/Pack
