NSI Industries NPDB-24-500-1 - 100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 4 x 4/0-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
NSI Industries

NPDB-24-500-1

UPC: 662381367655

Documents & Media
BrochureTechnical BulletinSpecification Sheet

Contact for Pricing

Overview

NSI Industries NPDB-24-500-1 is a 100kA short circuit current rated power distribution block designed for high-current industrial applications. This unit features 2 x 500 MCM-4 AWG line terminals and 4 x 4/0-6 AWG load terminals, constructed from Valox Nylon 6/6 for superior dielectric strength and Lexan 500R Polycarbonate panels and covers for enhanced impact resistance and finger safety. The connector is made from high-conductivity 6061-T6 aluminum alloy with electro-tin plating for optimal current flow and corrosion resistance. The NPDB-24-500-1 is modular—each block can operate independently or combine with others to form multi-block sets. It is also DIN rail mountable with an integrated locking mechanism for secure installation and easy removal. The compact design and durable materials make it ideal for panelboard, switchgear, and industrial control panel applications where reliable power distribution and short-circuit protection are critical.
  • 100kA short circuit current rating for high-fault applications
  • 2 x 500 MCM-4 AWG line terminals and 4 x 4/0-6 AWG load terminals
  • Valox Nylon 6/6 housing with Lexan 500R Polycarbonate finger-safe panels and covers
  • High-conductivity 6061-T6 electro-tin plated aluminum alloy connector
  • DIN rail mountable with built-in locking mechanism for secure installation

Specifications

Amperage Rating
760A
Application
NSI
Color
Blue
Color
Black Base-Clear Panels and Covers
Color
Black
Connection Type
Screw Terminal
Current Rating
100 kA
Material
Valox Nylon 6/6, Lexan 500R Polycarbonate, 6061-T6 Electro-Tin Plated aluminum alloy
Material
6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
Mounting
Slotted Holes in Base, 35mm DIN Rail w/Locking Feature
Mounting Type
Din Rail Mountable with built-in locking mechanism
Number Of Terminals
6
Poles
6
Series
NPDB
Size
L=5.800 - W=2.750 - H=3.750 IN
Size
2 x 500 MCM-4 AWG Line, 4 x 4/0-6 AWG Load
Special Features
100kA Short Circuit Current Rated (SCCR), Din Rail Mount with Locking Mechanism to lock/release block on Din Rail, Multi Pole Ganging, Finger Safe Lexan 500R Polycarbonate Panels & Covers.
Standard
UL1953 and UL1059 Listed, cULus
Type
Single Primary (Line), Single Secondary (Load)
Voltage Rating
600 V
Warranty
1 Year
Wire Size
(2) 500 MCM-4 AWG(LINE) - (4) 4/0-6 AWG(LOAD)
Package Dimensions (L x W x H)
5.8 IN x 2.75 IN x 3.75 IN
Package Dimensions (L x W x H)
14.732 cm x 6.985 cm x 9.525 cm
Package Weight (Imperial)
1.332 L
Package Weight (Metric)
0.604 kg
100kA Short Circuit Current Rated Power Distribution Block. 1 x 750-250 MCM Line, 4 x 250 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-14-750-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 750-250 MCM Line, 4 x 250 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 2/0-14 AWG Line, 6 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-26-2/0-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 2/0-14 AWG Line, 6 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 2 x 350 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-22-350-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 2 x 350 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-26-350-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 500 MCM-4 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-112-500-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 500 MCM-4 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-212-500-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 2 x 600 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-22-600-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 2 x 600 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 600 MCM-4 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-16-600-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 600 MCM-4 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-26-600-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 350 MCM-6 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-16-350-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 350 MCM-6 AWG Line, 6 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

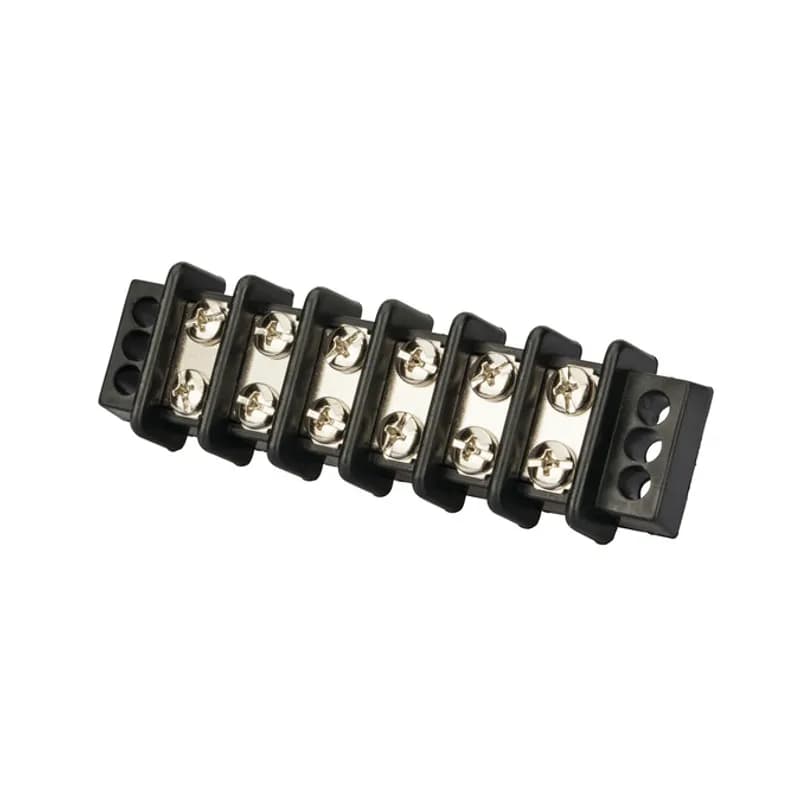

6 Circuit Double Row Terminal Block Terminal blocks are made from strong glass-filled polyester. Heavy duty construction with corrosion resistant terminal plates ensures dependable, easy access multiple termination block. Screws are #8 stud size. Rated for 30 amps and 600 volts maximum.

TB3096-6

6 Circuit Double Row Terminal Block Terminal blocks are made from strong glass-filled polyester. Heavy duty construction with corrosion resistant terminal plates ensures dependable, easy access multiple termination block. Screws are #8 stud size. Rated for 30 amps and 600 volts maximum.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 2/0-14 AWG Line, 4 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-14-2/0-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 2/0-14 AWG Line, 4 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

Frequently Asked Questions

What are the line and load wire configurations for this power distribution block?

The NPDB-24-500-1 has a line configuration of 2 X 500-4 and a load configuration of 4 X 4/0-6.

Is this power distribution block finger safe?

Yes, the NPDB-24-500-1 is marked as a FINGER SAFE power distribution block.

What block size is the NPDB-24-500-1?

The NPDB-24-500-1 is classified as a LARGE block size.

How can I get technical assistance for this product?

Technical assistance is available by calling 1-800-321-5847 and asking for technical assistance.

What is the maximum amperage per pole for this block?

The maximum amperage per pole for this power distribution block is 760 amps.
