NSI Industries N-2SP - All Purpose Split Bolt Connector 2 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
NSI Industries

N-2SP

UPC: 662381020352

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

NSi Industries N-2SP All Purpose Split Bolt Connector is a versatile, UL 486A/B listed wire connector designed for secure splicing of copper and aluminum conductors in industrial, commercial, and utility applications. This 2 AWG-rated split bolt accommodates combinations including aluminum-to-copper, aluminum-to-aluminum, steel-to-aluminum, copper-to-copper, and steel-to-copper, making it ideal for mixed-metal installations where corrosion resistance and electrical integrity are critical. Key specifications include an electro-tin-plated body for enhanced corrosion protection, a UL listing for copper and copperweld wires only, and a supplied assembly including nut, spacer, and pressure pad. The connector’s design ensures proper torque application via standard hex wrenches, with a recommended torque range of 27-50 inch-pounds for optimal performance. The N-2SP supports wire diameter ranges from 0.128" to 0.316" (2 AWG to 6 AWG), providing flexibility for various conductor sizes within a single SKU. NSi Industries, a trusted manufacturer in the electrical connector market, delivers this product with a focus on durability and reliability. The electro-tin plating inhibits oxidation, maintaining low contact resistance over time, while the pressure pad ensures consistent mechanical and electrical connections even in demanding environments. This split bolt is particularly suited for applications requiring direct burial grounding, as it meets UL 486D standards for direct bury installations. Typical use cases include utility pole connections, grounding systems, motor controls, and industrial machinery wiring. The N-2SP’s dual-rated compatibility reduces inventory needs by eliminating the requirement for separate connectors for copper and aluminum applications. With a temperature rating of 90°C and voltage rating up to 600V (2000V per UL 486B), this connector meets the demands of modern electrical systems. NSi Industries’ reputation for quality and compliance with UL standards ensures that the N-2SP split bolt connector delivers long-term performance in critical electrical connections.
  • UL 486A/B listed for copper and copperweld wires only
  • Electro-tin plated body for corrosion resistance
  • Accommodates aluminum-to-copper, aluminum-to-aluminum, steel-to-aluminum, copper-to-copper, and steel-to-copper combinations
  • Includes nut, spacer, and pressure pad for complete assembly
  • Recommended torque: 27-50 inch-pounds; wire range: 0.128"-0.316" (2 AWG-6 AWG)

Specifications

Application
Wire Termination
Color
Tin Plated Copper
Connection Type
Split Bolt
Environmental Conditions
90 C
Finish
Tin Plated Copper
Housing Material
Tin Plated Copper
Material
Tin Plated Copper
Material
Electro-tinned
Number Of Conductors
2
Number Of Poles
1
Size
L= 1.350 - W=.748 IN
Size
2 AWG
Special Features
8 SOL-2 STR - 40 Pack
Standard
UL486B
Temperature Rating
90 C
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Tin Plated Copper Split Bolt
Voltage Rating
600 V
Warranty
1 Year
Wire Size
8 SOL - 2 STR
Wire Type
Class A & B
Package Dimensions (L x W x H)
0.614 IN x 0.748 IN x 1.24 IN
Package Dimensions (L x W x H)
15.5956 mm x 18.9992 mm x 3.1496 cm
Package Weight (Imperial)
0.160 L
Package Weight (Metric)
0.073 kg

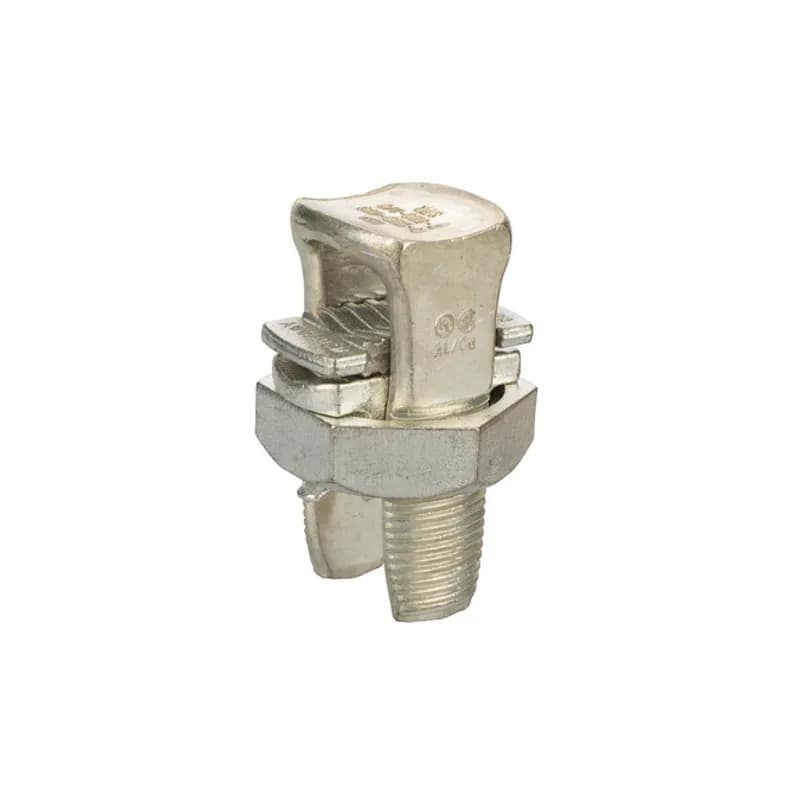

All Purpose Split Bolt Connector 500 MCM is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-500SP

All Purpose Split Bolt Connector 500 MCM is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 1/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-1/0SP

All Purpose Split Bolt Connector 1/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 2/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-2/0SP

All Purpose Split Bolt Connector 2/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 1000 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-1000SP

All Purpose Split Bolt Connector 1000 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 4 AWG is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-4SP

All Purpose Split Bolt Connector 4 AWG is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 350 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-350SP

All Purpose Split Bolt Connector 350 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 3 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-3SP

All Purpose Split Bolt Connector 3 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

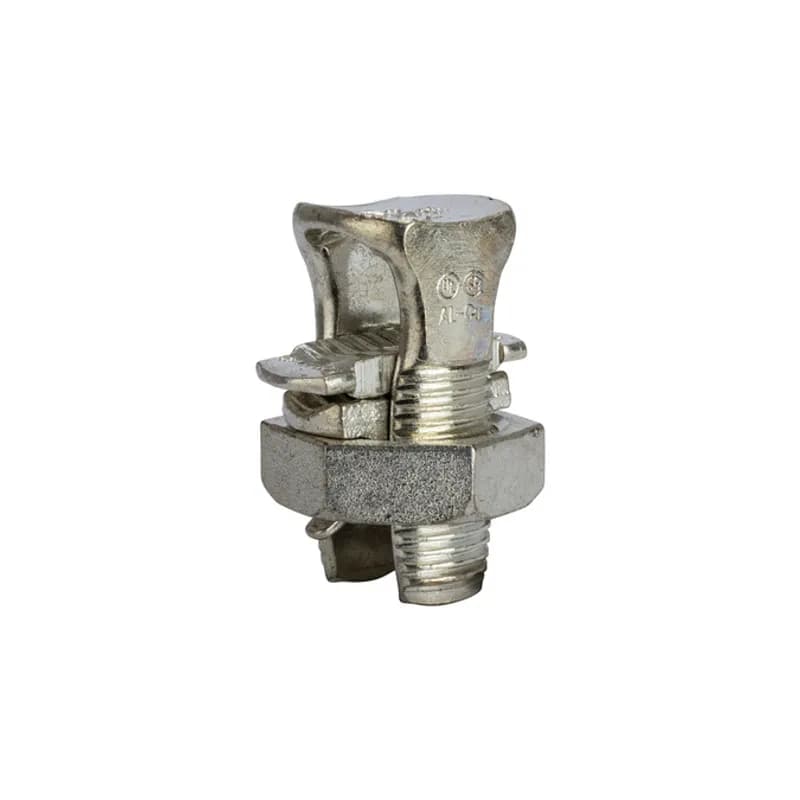

All Purpose Split Bolt Connector 250 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-250SP

All Purpose Split Bolt Connector 250 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 3/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-3/0SP

All Purpose Split Bolt Connector 3/0 AWG All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 6 AWG is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-6SP

All Purpose Split Bolt Connector 6 AWG is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

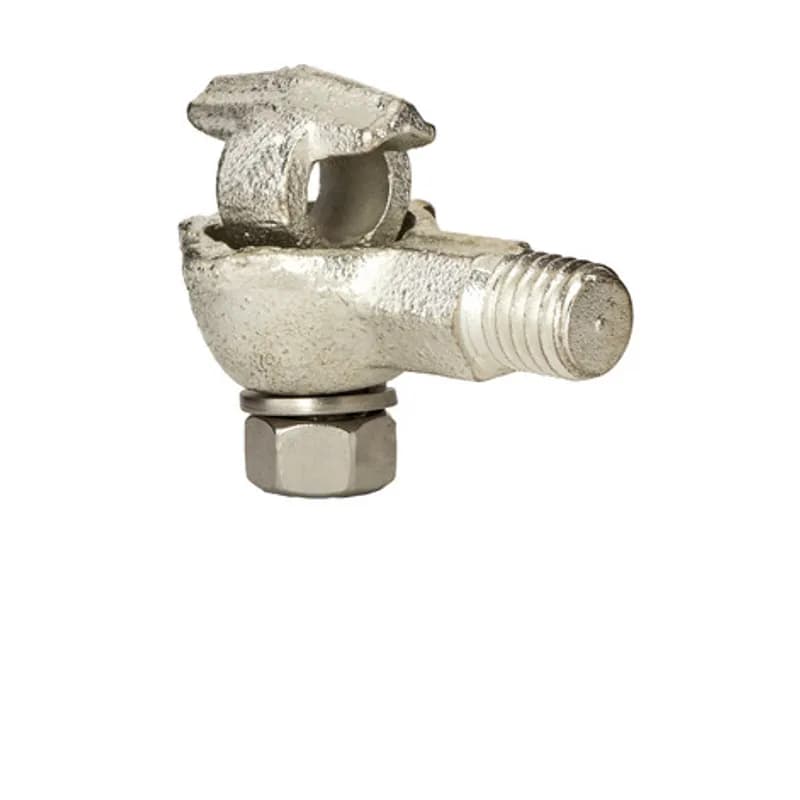

Use the NSI TGE-2/0TN Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. TGE series ground clamps may be tightened to the transformer by using a wrench on the body. Two-way basket ground clamps are available with a tin plate by adding suffix ‘TN’ for additional corrosion resistance in the field. Use the TGE-2/0TN when running ground wire in the range of 8 SOL to 2/0 STR. Stock products you can rely on—stock NSI.

TGE-2/0TN

Use the NSI TGE-2/0TN Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. TGE series ground clamps may be tightened to the transformer by using a wrench on the body. Two-way basket ground clamps are available with a tin plate by adding suffix ‘TN’ for additional corrosion resistance in the field. Use the TGE-2/0TN when running ground wire in the range of 8 SOL to 2/0 STR. Stock products you can rely on—stock NSI.

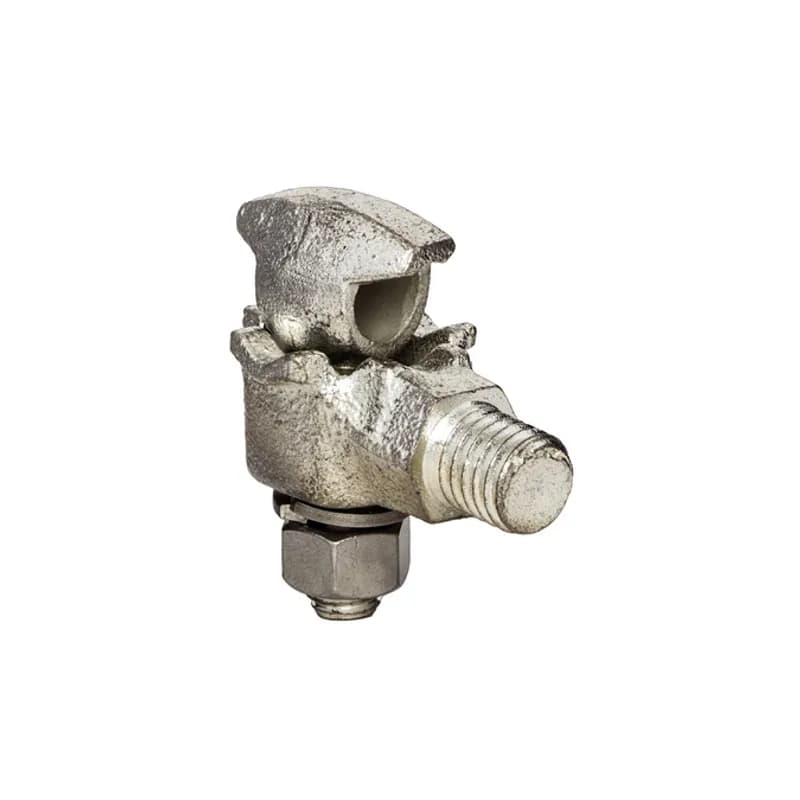

Use the NSI HTGE-2/0TN Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. Additionally, the flat surface acts as a seal to the tank. HTGE series ground clamps provide a hex or square shoulder for wrench tightening and come tin plated by adding the suffix ‘TN’ for additional corrosion resistance. Use the HTGE-2/0TN when running ground wire in the range of 8 SOL to 2/0 STR. Stock products you can rely on—stock NSI.
