UPC: 662381086006
Contact for Pricing
Overview
Specifications
Application | Wire Termination |
Color | Red, Blue, Yellow |
Environmental Conditions | 75 C |
Housing Material | Vinyl Insulation |
Material | Vinyl Insulation |
Number Of Terminals | 1 |
Special Features | 507 Piece Kit Containing The Most Popular Miniterm Terminals |
Standard | cULus |
Type | Miniterm Kit |
Voltage Rating | 300 V |
Wire Size | 22-18, 16-14, 12-10 AWG |
Package Dimensions (L x W x H) | 7.25 IN x 10.75 IN x 1.75 IN |
Package Dimensions (L x W x H) | 18.415 cm x 27.305 cm x 4.445 cm |
Package Weight (Imperial) | 1.934 L |
Package Weight (Metric) | 0.877 kg |
MTK-2
NSi Vinyl Insulated 180-Piece Miniterm Kit and Tool The NSi Industries Vinyl Insulated 180-Piece Miniterm and Tool Kit has been carefully designed to include the most popular NSi miniterm terminals. The cases are made of extremely durable polypropylene. They provide the ultimate in organization and convenience. Miniterms are clearly labeled on the inside lid for easy recognition. Comes complete with miniterm tool. Convenient size for easy carrying and easy storing. Refillable and reusable. KIT CONTAINS : Quantity SKU Type Wire Size Stud/Tab Size Length Width 10 R22-6V Vinyl Insulated Ring Terminal 22-18 6 .831 .315 10 R22-8V Vinyl Insulated Ring Terminal 22-18 8 .827 .315 10 R22-10V Vinyl Insulated Ring Terminal 22-18 10 .827 .315 10 R16-6V Vinyl Insulated Ring Terminal 16-14 6 .717 .256 10 R16-8V Vinyl Insulated Ring Terminal 16-14 8 .846 .315 10 R16-10V Vinyl Insulated Ring Terminal 16-14 10 .846 .315 5 R12-10V Vinyl Insulated Ring Terminal 12-10 10 1.063 .374 10 F22-250-3V Vinyl Insulated Female Disconnect 22-18 .250 x.032 - - 10 F16-250-3V Vinyl Insulated Female Disconnect 16-14 .250 x.032 - - 10 B22-V Vinyl Insulated Butt Connector 22-18 - 1.004 - 10 B16-V Vinyl Insulated Butt Connector 16-14 - 1.004 - 10 B12-V Vinyl Insulated Butt Connector 12-10 - 1.063 - 10 S22-8V Vinyl Insulated Spade Terminal 22-18 8 .862 .276 10 S22-10V Vinyl Insulated Spade Terminal 22-18 10 .906 .378 10 S16-8V Vinyl Insulated Spade Terminal 16-14 8 .846 .315 10 S16-10V Vinyl Insulated Spade Terminal 16-14 10 .846 .315 5 S12-10V Vinyl Insulated Spade Terminal 12-10 10 1.012 .354 10 M22-250-3V Vinyl Insulated Male Disconnect 22-18 .250 x.032 - - 10 M16-250-3V Vinyl Insulated Male Disconnect 16-14 .250 x.032 - - 1 Mini Terminal Multi Tool
P16-250-3V-S
16-14 AWG Vinyl Insulated Female Piggybacks - 15 Count Vinyl Insulated Piggybacks fare made of electro tin plated copper. 600V, 105 degrees C. FEATURES: STYLE: Female Piggybacks MATERIAL: Vinyl QUANTITY: 15 WIRE SIZE: 16-14 STUD SIZE: 0.250 BRAND EQUIVALENT: Morris 12014 Ideal 83-9621
P16-250-3V-P
16-14 AWG Vinyl Insulated Female Piggybacks - 40 Count Vinyl Insulated Piggybacks are made of electro tin plated copper. 600V, 105 degrees C. FEATURES: STYLE: Female Piggybacks MATERIAL: Vinyl QUANTITY: 40 WIRE SIZE: 16-14 STUD SIZE: 0.250
MWTK1
Wire Terminal Kit, 11 x 6.5 in. size, Plastic case material, 241 piece, Yellow, Red, Blue, Vinyl insulation, Kit Contains: (1) Wire Terminal Crimper 22-10 ga, (20) #22-#18 Butt Connector, (20) #16-#14 Butt Connector, (20) #12-#10 Butt Connector, (10) #12-#10 Ring Connector #8 Stud, (10) #12-#10 Ring Connector #10 Stud, (10) #12-#10 Ring Connector 5/16 Stud, (10) #12-#10 Ring Connector 3/8 Stud, (10) #16-#14 Ring Connector #6 Stud, (10) #16-#14 Ring Connector #10 Stud, (10) #22-#18 Ring Connector #6 Stud, (10) #22-#18 Ring Connector #10 Stud, (10) #12-#10 Spade Connector #6 Stud, (10) #12-#10 Spade Connector #10 Stud, (10) #16-#14 Spade Connector #6 Stud, (10) #16-#14 Spade Connector #10 Stud, (10) #22-#18 Spade Connector #6 Stud, (10) #22-#18 Spade Connector #10 Stud, (10) #16-#14 250QDC Male, (10) #16-#14 250QDC Female, (10) #22-#18 250QDC Male, (10) #22-#18 250QDC Female
C8-N
The Easy-Twist C8-N 40-Count Pack of Nylon Closed-End Wire Connectors are designed for use on pre-insulated wires in the 16-10 AWG size range. They’re UL-certified as self-extinguishing and rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The closed-end nylon connector features an internal metal crimp sleeve that can be tightened over twisted pre-insulated wires to form a safe and secure join. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
C22-N-B
The Easy-Twist C22-N-B 1000-Count Bag of Nylon Closed-End Wire Connectors are designed for use on pre-insulated wires in the 22-18 AWG size range. They’re UL-certified as self-extinguishing and rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The closed-end nylon connector features an internal metal crimp sleeve that can be tightened over twisted pre-insulated wires to form a safe and secure join. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
C8-N-B
The Easy-Twist C8-N-B 500-Count Bag of Nylon Closed-End Wire Connectors are designed for use on pre-insulated wires in the 16-10 AWG size range. They’re UL-certified as self-extinguishing and rated for a maximum temperature of 105˚ Celsius (221˚ Fahrenheit). The closed-end nylon connector features an internal metal crimp sleeve that can be tightened over twisted pre-insulated wires to form a safe and secure join. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.
HTGE-250

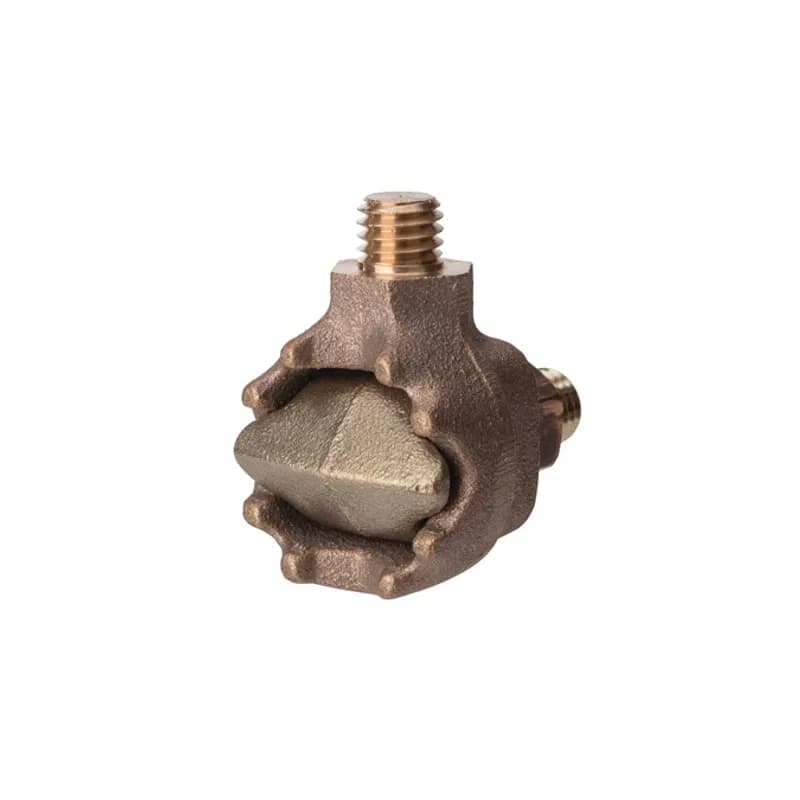

Use the NSI HTGE-250 Two-Way Basket Ground Clamp to ground electrical connections in distribution/pole transformers. This clamp is cast from high conductivity copper alloy and comes with cast bronze eyebolts, both of which are high strength and guarantee durable performance when grounding transformers in harsh environments. Strong stainless-steel nuts and lockwashers are standard on all two-way basket ground clamps. Additionally, the flat surface acts as a seal to the tank. HTGE series ground clamps provide a hex or square shoulder for wrench tightening and come tin plated by adding the suffix ‘TN’ for additional corrosion resistance. Use the HTGE-250 when running ground wire in the range of 6 SOL to 250 MCM. Stock products you can rely on—stock NSI.
IPLMD350-6
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
SPM-24L
Service Post Connector - Two Wire Type 4 STR Service Post Connectors is used for connecting one or two conductors. Made from high copper content hard-drawn rod. Lay-in feature makes them excellent for continuous loop grounding and bonding. Used to ground to bar or plate. Suitable for direct burial in earth or concrete.Frequently Asked Questions about NSI Industries
