NSI Industries LML-72 - Liqua-Seal Connector, 90 deg, insulated, 2-1/2" NPT, zinc plated steel
NSI Industries

LML-72

UPC: 785411001845

Contact for Pricing

Overview

The NSi Industries LML-72 is a 90-degree insulated Liqua-Seal connector designed for robust industrial applications. Constructed from durable zinc-plated steel, this connector offers excellent corrosion resistance and longevity. It features 2-1/2" NPT threading for secure, leak-proof connections, making it suitable for fluid transfer systems in challenging environments. The insulated design enhances safety by preventing electrical conductivity, crucial for electrical and hydraulic installations. This connector meets industry standards for cold impact and simulated hammer blow, ensuring performance reliability. Its thermoplastic body gland has a material temperature rating of -40°C to 105°C and a flammability rating of U.L. 94-V2. The "O" ring is nitrile (blue), and the locknut is electro zinc plated steel. Listed and certified by U.L. (File# E23018) and CSA (File# LR52391), it conforms to CSA 22.2 #227.2, CSA 22.2 #227.3, ANSI/U.L. 514B-1988, and the watertight requirements of NEMA Type 4 and NEMA Type 6 enclosures. It also meets Federal Standard H28 for NPT threads and is suitable for hazardous locations (Class I Div. 2; Class II Div. 1 & 2, Groups E,F, & G; Class III per N.E.C.). The performance is unaffected by common industrial detergents, cleaners, sanitizers, cutting fluids, wiring pulling compounds, and marine environments. NSi Industries SKU: LML-72.
  • 90-degree insulated Liqua-Seal connector
  • Durable zinc-plated steel construction
  • 2-1/2" NPT threading for secure connections
  • NEMA Type 4 and NEMA Type 6 watertight rating
  • Suitable for hazardous locations (Class I Div. 2, Class II Div. 1 & 2, Class III)

Specifications

Finish
Zinc Plated
Insulation
True
Material
Malleable Iron
Package Dimensions (L x W x H)
9.25 IN x 8 IN x 9.25 IN
Package Dimensions (L x W x H)
23.495 cm x 20.32 cm x 23.495 cm
Package Weight (Imperial)
0.710 L
Package Weight (Metric)
0.322 kg
Connector, Liquid Tight, 45 Degree, Size 1 Inch, Insulated Throat - 105 Degree C

452-SLTI

Connector, Liquid Tight, 45 Degree, Size 1 Inch, Insulated Throat - 105 Degree C
Connector, Liquid Tight, 45 Degree, Malleable Iron, Insulated Throat - 105 Degree C, Size 1 1/4 Inch

453-SLTI

Connector, Liquid Tight, 45 Degree, Malleable Iron, Insulated Throat - 105 Degree C, Size 1 1/4 Inch
Connector, Liquid Tight, 45 Degree, Malleable Iron, Insulated Throat - 105 Degree C, Size 4 Inch

459-SLTI

Connector, Liquid Tight, 45 Degree, Malleable Iron, Insulated Throat - 105 Degree C, Size 4 Inch

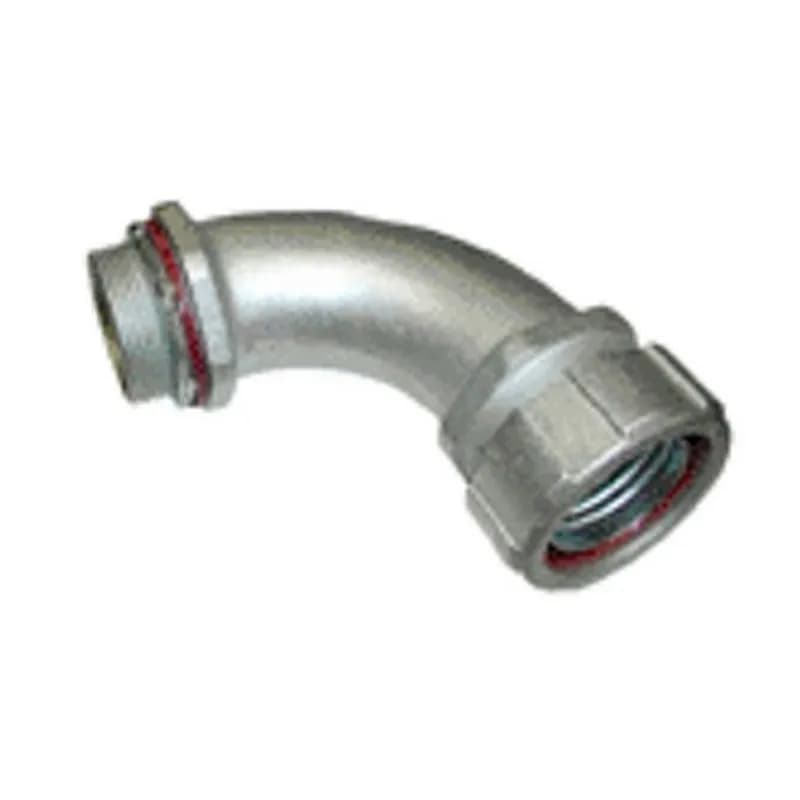

Connector, Liquid Tight, 90 Degree, Malleable Iron, Size 2-1/2 Inch, Insulated

476-SLTI

Connector, Liquid Tight, 90 Degree, Malleable Iron, Size 2-1/2 Inch, Insulated
Connector, Liquid Tight, 45 Degree, Malleable Iron, Insulated Throat - 105 Degree C, Size 2-1/2 Inch

456-SLTI

Connector, Liquid Tight, 45 Degree, Malleable Iron, Insulated Throat - 105 Degree C, Size 2-1/2 Inch

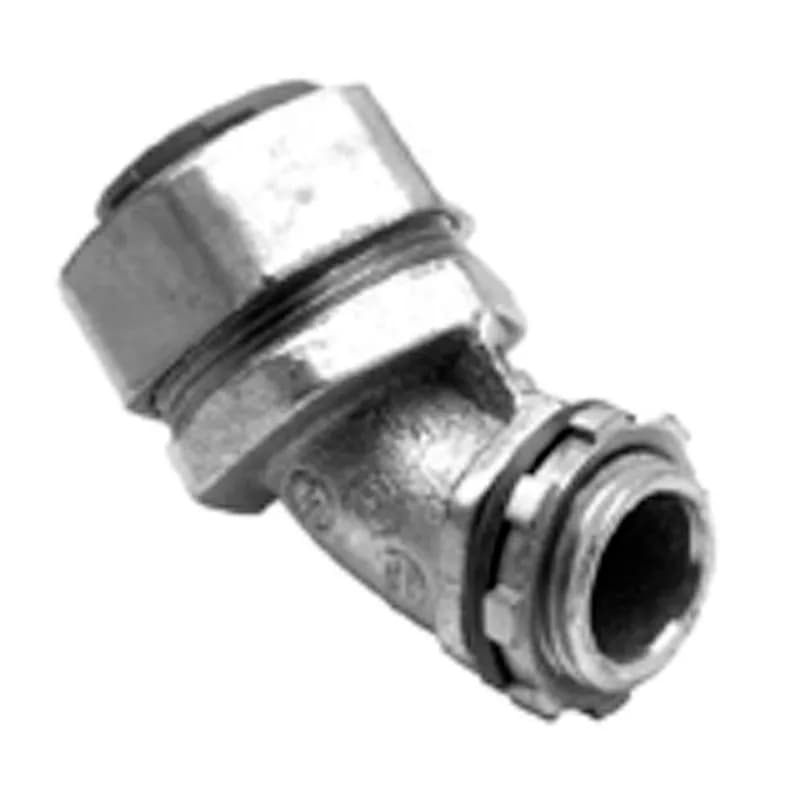

Connector, Liquid Tight, 45 Degree, Size 3/4 Inch

451-SLT

Connector, Liquid Tight, 45 Degree, Size 3/4 Inch
Connector, Liquid Tight, 45 Degree, Size 4 Inch

459-SLT

Connector, Liquid Tight, 45 Degree, Size 4 Inch

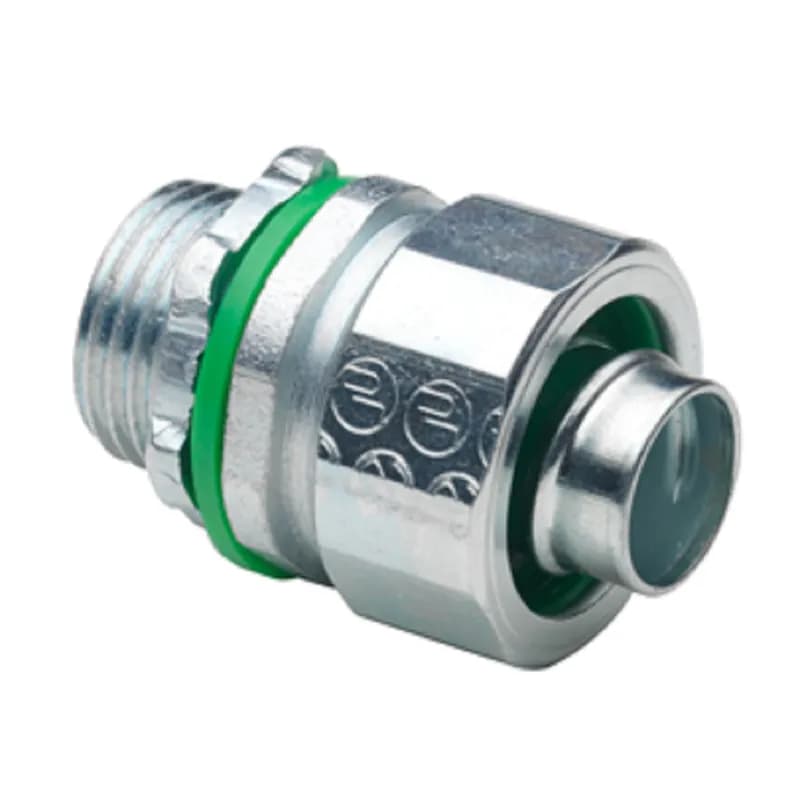

Connector, Liquid Tight, Straight, Steel, Size 1-1/2 Inch
