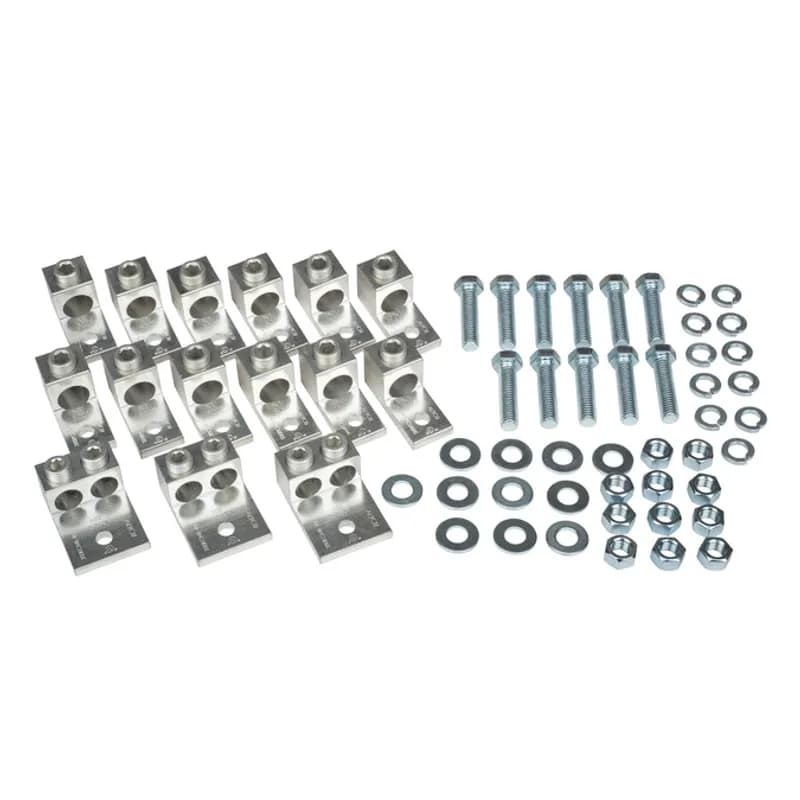

NSI Industries LK-3 - Transformer Lug Kit KVA Size (100-167 1 °) (150-300 3 °) Transformer Lug Kit contains terminal lugs that are dual rated for use with both copper and aluminum cables.
NSI Industries

LK-3

UPC: 662381051028

Contact for Pricing

Overview

The NSI Industries LK-3 Transformer Lug Kit (SKU: LK-3) is a high-performance mechanical set-screw terminal lug kit designed for 100-167 KVA single-phase and 150-300 KVA three-phase transformers. Engineered for reliability and versatility, this kit includes terminal lugs dual-rated for both copper and aluminum cables, ensuring compatibility with a wide range of conductor sizes. The lugs are constructed from high-strength 6061-T6 aluminum alloy, providing superior electrical and mechanical performance with electro-tin plating for low contact resistance. Key specifications include a temperature rating of 90°C and a maximum voltage rating of 600V, meeting or exceeding ANSI C119.4 Class A standards. The LK-3 kit includes 3 terminal lugs for three-phase applications (2x 250 MCM-600 MCM and 1x 600 MCM-2/0) and 3 sets of hardware (3/8-16 x 2" bolts). Mounting hole spacing is NEMA 1 3/4" for standardized compatibility with transformer terminal boxes. Ideal for industrial, commercial, and utility transformer installations, the LK-3 kit simplifies wiring by eliminating the need for separate copper and aluminum lugs. The set-screw design allows for easy installation and reusability, while the dual-rated capability reduces inventory requirements and streamlines procurement. NSI Industries, a trusted US manufacturer, ensures compliance with UL486B for wire connectors, guaranteeing safety and performance in demanding electrical environments.
  • Dual-rated for copper and aluminum cables (AL9CU)
  • UL486B listed, 600V max, 90°C temperature rating
  • Includes 3 terminal lugs (2x 250 MCM-600 MCM, 1x 600 MCM-2/0) and hardware
  • High-strength 6061-T6 aluminum alloy with electro-tin plating
  • NEMA 1 3/4" mounting hole spacing for transformer compatibility

Specifications

Application
Wire Termination
Color
Aluminum
Environmental Conditions
90 C
Material
Aluminum
Series
LK
Size
100-167 (1°), 150-300 (3°)
Special Features
Features (3) 250T - (22) 600T - Dual Rated
Type
Transformer Lug Kit
Warranty
1 Year
Package Dimensions (L x W x H)
8.75 IN x 6.25 IN x 3 IN
Package Dimensions (L x W x H)
22.225 cm x 15.875 cm x 7.62 cm
Package Weight (Imperial)
6.000 L
Package Weight (Metric)
2.722 kg
