Contact for Pricing
Minimum Qty: 3
Multiplier: 3
*Contact for lower quantities*

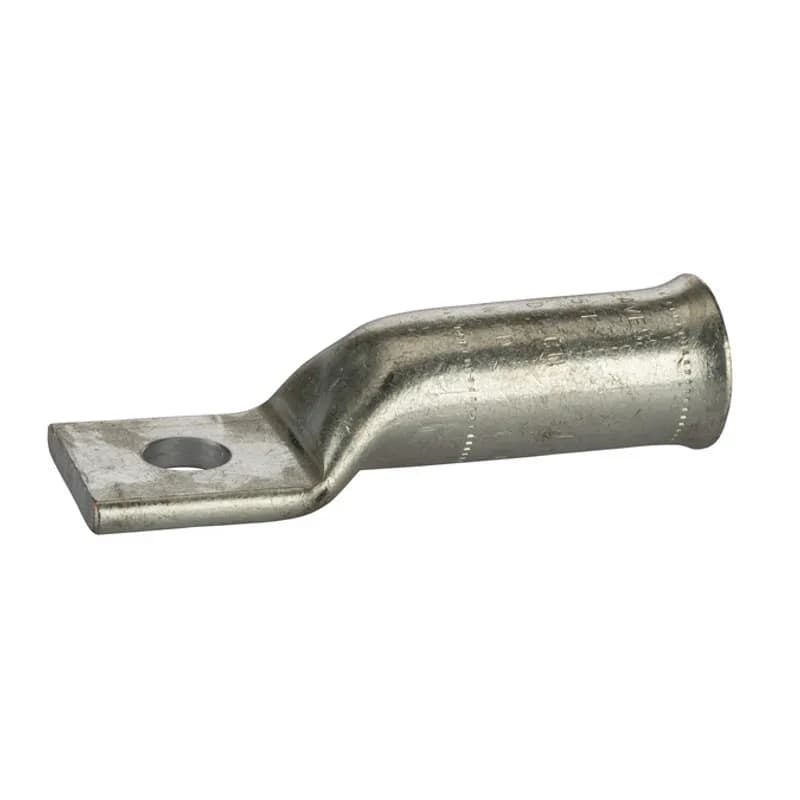

Overview
- Constructed from high-conductivity copper tubing for superior electrical performance.
- Tin-plated finish offers excellent corrosion resistance and low contact resistance.
- Long barrel design with belled end allows for easy inspection and secure cable insertion.
- Rated for 600V and 90°C temperature, suitable for demanding industrial applications.
- cULus 486A/B Listed and rated for 35KV maximum when properly installed.
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 700 MCM (STR) |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 1/2 Mounting Hole |
Number Of Holes | 1 |
Size | L=4.97 - W=1.70 - OD=1.23 - ID=.975 |
Special Features | 700 MCM (STR) - 1/2 Mounting Hole |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Long Barrel - One Hole - Belled End |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 4.922 IN x 1.69 IN x 1.241 IN |
Package Dimensions (L x W x H) | 12.5019 cm x 4.2926 cm x 3.1521 cm |
Package Weight (Imperial) | 2.160 L |
Package Weight (Metric) | 0.980 kg |
OD581
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
CD7
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
E6-PS-D
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Copper compression connectors, Cable
- Strip the conductor
Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows for complete insertion into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel fully.
- Crimp the connector
Using the appropriate crimping tool, apply pressure to crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
