Contact for Pricing
Overview
- UL486A and UL467 listed for grounding and bonding (8 AWG - 3/0 AWG)
- Tin-plated copper construction for corrosion resistance and low contact resistance
- Peep hole for easy cable insertion verification
- Rated 90°C and 600V, listed for up to 35KV when properly installed
- Marked with die index and color coding for quick identification
Specifications
Connection Type | Compression Lug |
Finish | Tin Plated |
Material | Copper |
Mounting Type | Bolt (1/4") |
Series | L350NP |
Size | 4 AWG |
Size | 4 AWG, 1/4" Bolt |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 5.35 IN x 1.25 IN x 0.9 IN |
Package Weight (Imperial) | 0.340 L |
Package Weight (Metric) | 0.154 kg |
GL338
1 HoleShort Barrel Copper Compression Lug w/ PeepHole3 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
GL1038
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 1/0 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
AL250-48
1 HoleStandard BarrelAluminum Compression Lug250MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-300B
Short Barrel Copper Compression Splice for Flexible Copper Cable 300MCM Compression splices for flexible copper cables are connects that have flared openings at both ends to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. Positive center stop. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only.
C-1000
Long Barrel TinnedCopperSplice 1000 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-500
StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L20N-14P
2 Hole Long Barrel Peep Hole Copper Compression Lug with Peep Hole 2/0 AWG - 1/4" Bolt - 5/8" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

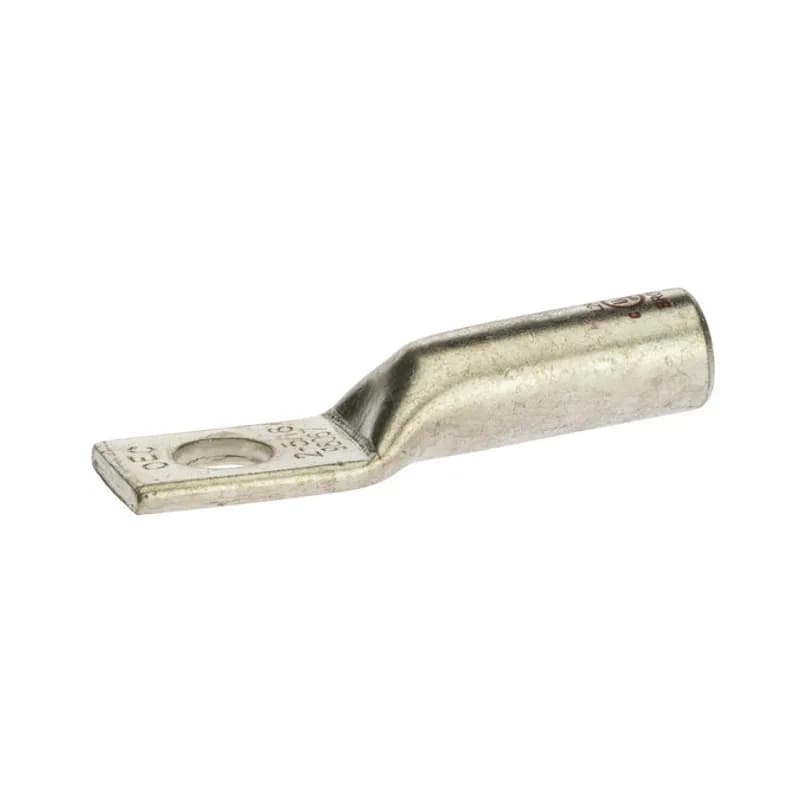

L256
1 Hole Long Barrel Copper Compression Lug 2 AWG - 5/16" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .

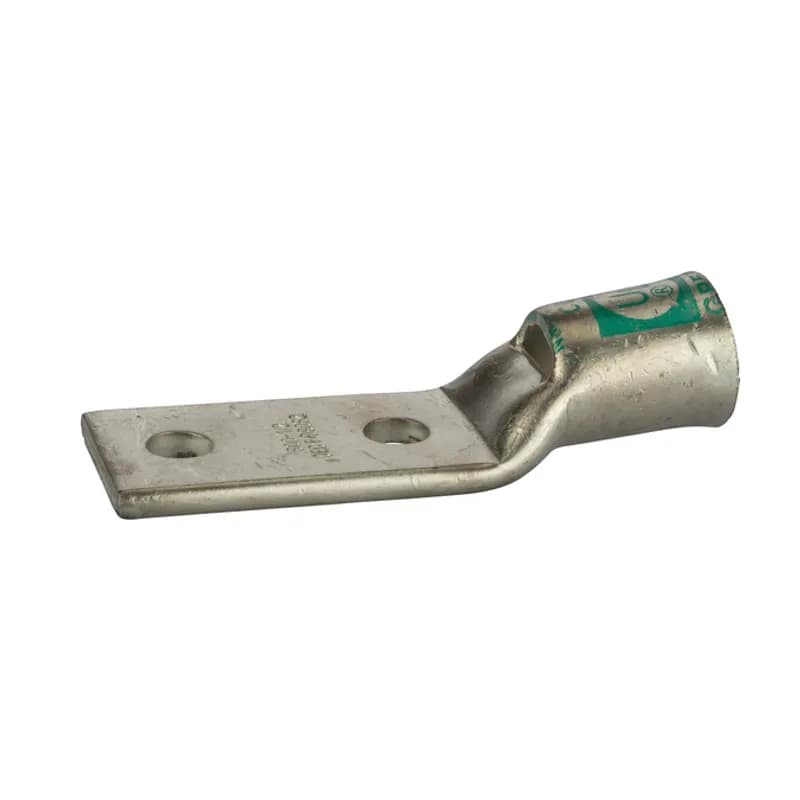

GL600NB
2 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 600 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
L814
1 Hole Long Barrel Copper Compression Lug 8 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
C-3/0
Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

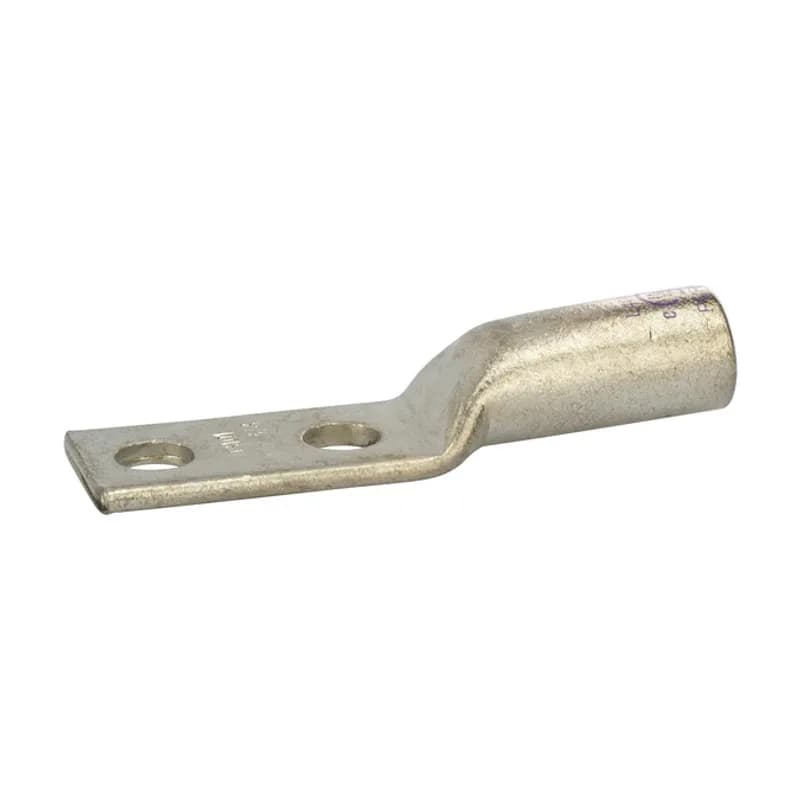

L40N-38
2Hole Long Barrel Copper Compression Lug4/0 AWG -3/8" Bolt - 1" Mounting Hole Spacing Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Copper compression connectors, Cable
- Strip the conductor
Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows for complete insertion into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel fully.
- Crimp the connector
Using the appropriate crimping tool, apply pressure to crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
