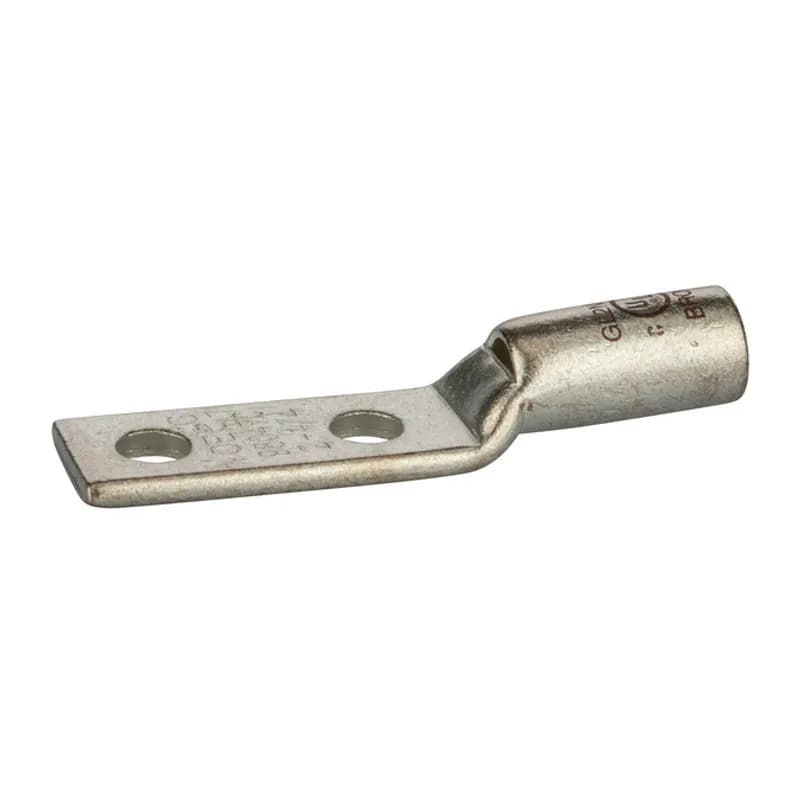

NSI Industries L2N-14P - 2 Hole Long Barrel Peep Hole Copper Compression Lug 2 AWG - 1/4" Bolt - 1" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
NSI Industries

L2N-14P

UPC: 662381335777

Documents & Media
Technical BulletinInstallation Instructions

Contact for Pricing

Overview

The NSI Industries L2N-14P is a 2-hole, long barrel copper compression lug designed for reliable electrical terminations. Constructed from high-conductivity copper tubing, this lug ensures excellent electrical performance and durability. Its "peep hole" design allows for visual confirmation of complete cable insertion, a critical step for secure and safe connections. The tin plating provides superior corrosion resistance and maintains low contact resistance over time, crucial for maintaining signal integrity and preventing power loss. This lug is rated for 600V and is cULus 486A/B Listed, meeting stringent safety and performance standards. For applications requiring higher voltage, it is listed for 35KV maximum when properly installed. The L2N-14P is designed for a 1/4" bolt size and features 1" mounting hole spacing, facilitating straightforward installation in various electrical systems. It is marked with the appropriate die index and color coding for easy identification and proper tool selection during crimping. The temperature rating is 90 degrees C, suitable for many industrial environments. Sizes 6 AWG through 3/0 AWG are UL467 Listed for grounding and bonding applications.
  • High conductivity copper tubing construction
  • Peep hole for visual cable insertion verification
  • Tin-plated for corrosion resistance and low contact resistance
  • Rated 600V, 35KV max (properly installed), 90°C temperature
  • cULus 486A/B Listed, UL467 Listed (6 AWG - 3/0 AWG)

Specifications

Application
Terminate, Splice, Tap Power Connectors
Cable Size
# 2 AWG (STR)
Color
Brown
Environmental Conditions
90 C
Finish
Tin Plated
Material
Copper
Mounting
1/4 Mounting Holes IN
Number Of Holes
2
Size
L=2.52 - W=.600 - OD=.420 - ID=.310 IN
Special Features
# 2 AWG (STR) - 1/4 Mounting Holes - 1 Hole Spacing
Standard
UL486A/B, UL467 (8 AWG -3/0 AWG)
Stud Size
1/4 IN
Type
Long Barrel - Two Hole With Peep Hole
Voltage Rating
600 V
Warranty
1 Year
Package Dimensions (L x W x H)
2.52 IN x 0.6 IN x 0.42 IN
Package Dimensions (L x W x H)
6.4008 cm x 15.24 mm x 10.668 mm
Package Weight (Imperial)
4.500 L
Package Weight (Metric)
2.041 kg
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.

OD581

Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
O' Die for OD581 Mechanical Crimp Tool

OJB

O' Die for OD581 Mechanical Crimp Tool
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD6A

U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD7

U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic

E6-PS-D

Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

A1212SC-G

PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray

E989NNJ-5-HD

Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705030R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

How to Install NSI Copper Compression Connectors

Install NSI copper compression lugs or splices on copper conductors by stripping, cleaning, inserting, and crimping the cable with the correct approved tool and die. Follow the connector size chart to match the conductor size and use the specified crimp locations for a secure connection.

Estimated time: 15m

Tools needed:

Wire stripper, Wire brush, Approved compression crimp tool, Approved dies for the selected connector series, Mechanical crimp tool (optional: NSI M-250 or NSI M-500 for compatible cable)

Supplies needed:

NSI copper compression connector or splice sized for the conductor, Copper conductor cable, Appropriate connector barrel size from the chart

  1. Select the correct connector

    Choose an NSI lug or splice that matches the conductor size and connector series required for the installation. Verify the connector is approved for concentric, compressed, or compact copper conductors and confirm the required strip length and crimp pattern from the chart before starting.

  2. Strip and clean the conductor

    Carefully strip the insulation from the conductor without nicking the strands. Strip only enough length so the conductor will fully insert into the barrel, then wire brush the stripped portion to remove oxide films. Safety warning: Do not damage or cut conductor strands during stripping.

  3. Insert the conductor fully

    Insert the cleaned conductor completely into the connector barrel so the stripped portion fills the barrel. Verify the conductor is fully seated and clean before crimping to ensure a proper mechanical and electrical connection.

  4. Crimp the connector

    Use an approved compression crimp tool and the correct die set for the connector series. Make the number of crimps shown for the selected connector; long-barrel lugs and splices require twice the crimps indicated in the chart. Follow the barrel markings for suggested crimp locations when using NSI N12ID or N1240 tools.

  5. Verify the finished connection

    Inspect the crimped connector to confirm the conductor is fully seated and the crimp is complete and properly located. If the installation uses a long-barrel lug or splice, confirm that all required crimps were made and that the connection is secure before energizing the circuit.
