Contact for Pricing
Overview
- UL486A and UL467 listed for grounding and bonding (8 AWG–3/0 AWG)
- Tin-plated copper construction for corrosion resistance and low contact resistance
- Continuous flared end for easy insertion of flexible and extra-flexible cables
- Single mounting hole for simplified installation
- Rated 600V, 90°C temperature rating, and compatible with NSI N12ID compression tools
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 1000 MCM (STR) |
Color | White |
Connection Type | Compression Lug |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 1/2 Mounting Holes |
Mounting Type | Single Hole |
Number Of Holes | 2 |
Size | L=7.12 - W=2.16 - OD=1.50 - ID=1.15 |
Size | 1000 MCM |
Special Features | 1000 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Long Barrel - Two Hole - Belled End |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 7.125 IN x 2.16 IN x 1.5 IN |
Package Dimensions (L x W x H) | 18.0975 cm x 5.4864 cm x 3.81 cm |
Package Weight (Imperial) | 4.680 L |
Package Weight (Metric) | 2.123 kg |

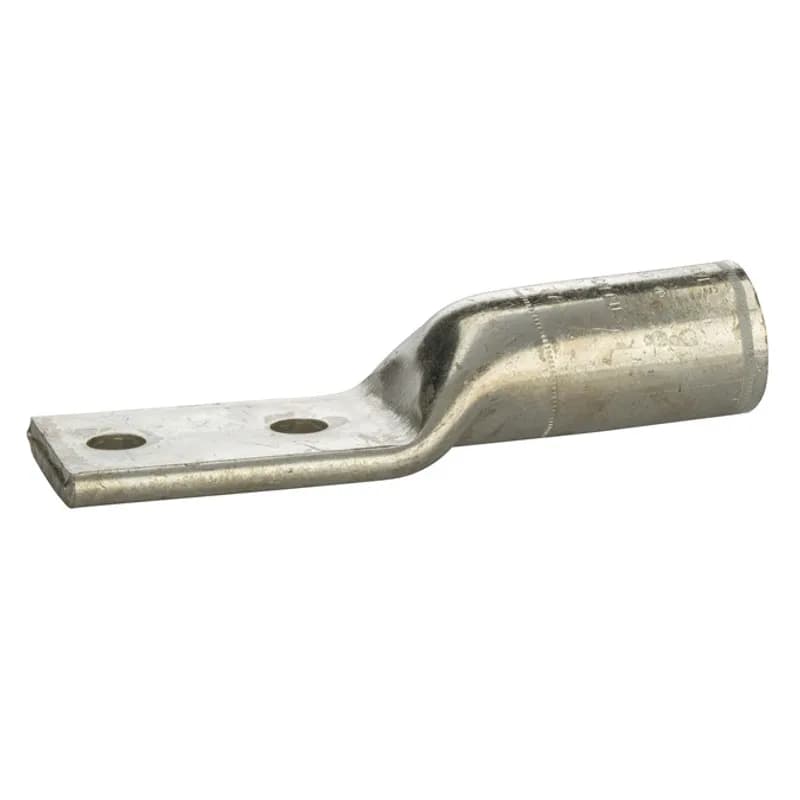

L1000N
2Hole Long Barrel Copper Compression Lug1000 MCM-1/2" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
C-1000
Long Barrel TinnedCopperSplice 1000 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
GL338
1 HoleShort Barrel Copper Compression Lug w/ PeepHole3 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-350
StandardBarrel TinnedCopperSplice350 MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
SC-300
StandardBarrel TinnedCopperSplice300 MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

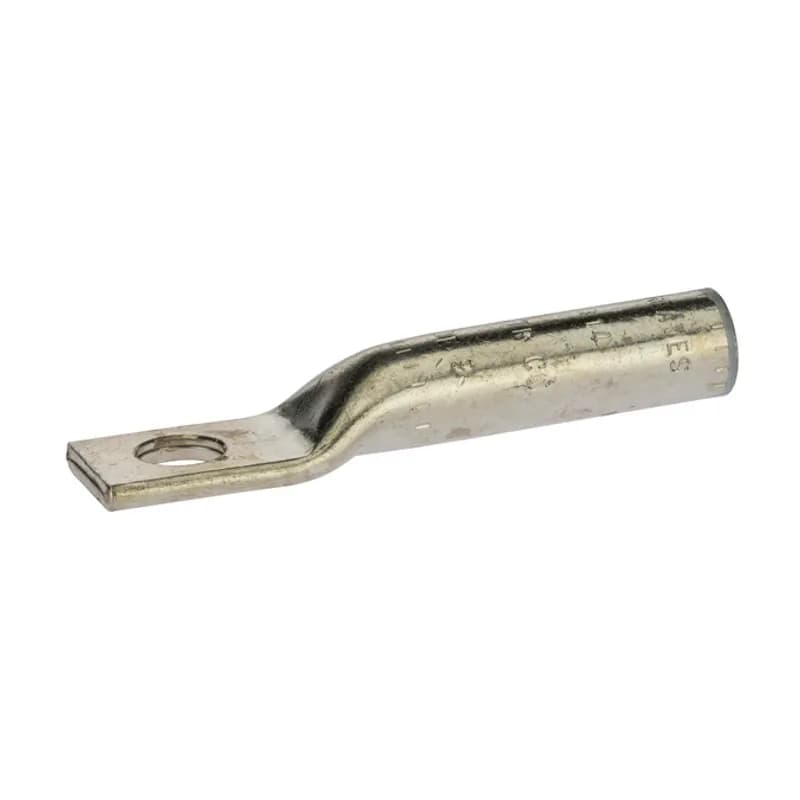

L314
1 Hole Long Barrel Copper Compression Lug 3 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
AL1000N
2HoleStandard BarrelAluminum Compression Lug1000MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

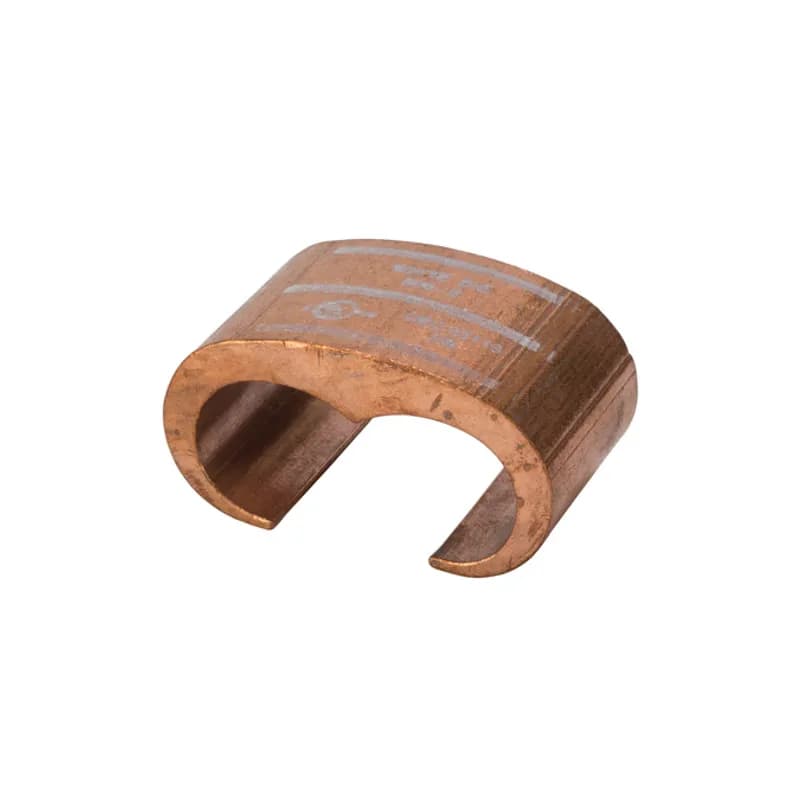

CTH-116
Heavy Duty Copper C Tap Grounding Connector for 500 to 350 MCM APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.
SC-300B
Short Barrel Copper Compression Splice for Flexible Copper Cable 300MCM Compression splices for flexible copper cables are connects that have flared openings at both ends to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. Positive center stop. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only.
SC-500
StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L20N-14P
2 Hole Long Barrel Peep Hole Copper Compression Lug with Peep Hole 2/0 AWG - 1/4" Bolt - 5/8" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Copper compression connectors, Cable
- Strip the conductor
Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows for complete insertion into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel fully.
- Crimp the connector
Using the appropriate crimping tool, apply pressure to crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
