Contact for Pricing
Overview
- Constructed from 6061T-6 aluminum alloy for durability.
- Electro-tin plated for low contact resistance and corrosion protection.
- Suitable for both copper and aluminum conductors.
- UL 486A/B Listed and UL467 Listed for grounding and bonding.
- Rated 600V (2000V max. per UL486B) with a 90°C temperature rating.
Specifications
Application | Wire Termination |
Color | Aluminum |
Environmental Conditions | 90 C |
Finish | Aluminum |
Housing Material | Aluminum |
Housing Material | Aluminium |
Material | Aluminum |
Number of Conductors | 1 |
Number Of Poles | 1 |
Size | L=2.00 - H=1.50 - W=.800 IN |
Special Features | 3/0-6 AWG - Dual Rated - 20 Pack |
Standard | cULus |
Temperature Rating | 90 C |
Temperature Rating, Maximum | 194 F |
Temperature Rating, Maximum | 90 C |
Temperature Rating, Minimum | 194 F |
Temperature Rating, Minimum | 90 C |
Type | Aluminum Lay-In Lug |
Voltage Rating | 600 V |
Warranty | 1 Year |
Wire Size | 3/0-6 AWG |
Wire Type | AL/CU |
Package Dimensions (L x W x H) | 2 IN x 0.8 IN x 1.5 IN |
Package Dimensions (L x W x H) | 5.08 cm x 20.32 mm x 3.81 cm |
Package Weight (Imperial) | 3.160 L |
Package Weight (Metric) | 1.433 kg |
PL3/0-6

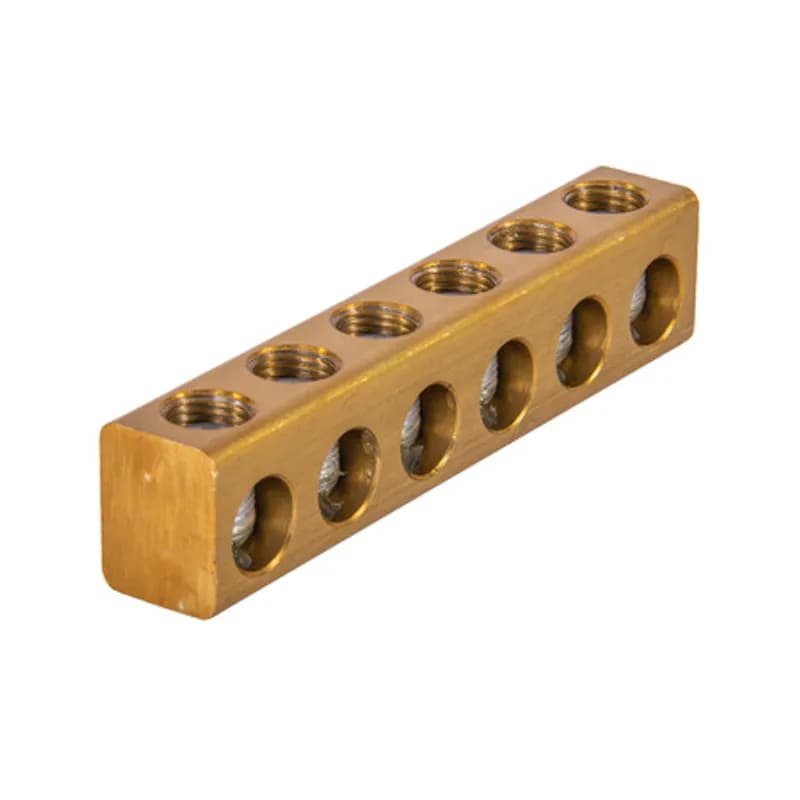

The Polaris PL3/0-6 Uninsulated Multi-Tap Connector features 6 ports sized for 3/0 - 6 AWG wires. The body is made from aluminum alloy and plated for corrosion resistance. Each pass-through port features a hex screw used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
PL3/0-8

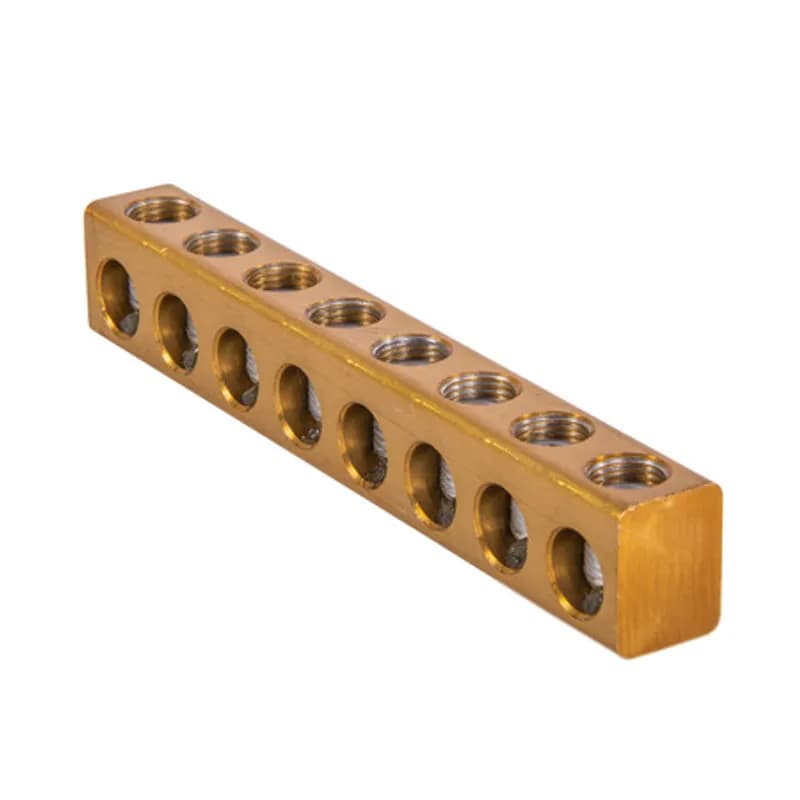

The Polaris PL3/0-8 Uninsulated Multi-Tap Connector features 8 ports sized for 3/0 - 6 AWG wires. The body is made from aluminum alloy and plated for corrosion resistance. Each pass-through port features a hex screw used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPL3/0-3
The Polaris IPL3/0-3 Multi-Tap Single Side Entry Connector features 3 ports sized for 3/0-6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPL3/0-3B
The Polaris IPL3/0-3B Multi-Tap Single Side Entry Connector features 3 ports sized for 3/0-6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPL3/0-4C
The Polaris IPL3/0-4C Multi-Tap Single Side Entry Vision Tap Connector features 4 ports sized for 3/0-6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPL3/0-4
The Polaris IPL3/0-4 Multi-Tap Single Side Entry Connector features 4 ports sized for 3/0-6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPL3/0-4B
The Polaris IPL3/0-4B Multi-Tap Single Side Entry Connector features 4 ports sized for 3/0-6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPLD3/0-4B
The Polaris IPLD3/0-4B Multi-Tap Dual-Sided Entry Connector features 4 ports sized for 3/0 - 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies, and comes packaged in a clear plastic bag with a mounting hole for hanging in retail displays. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IT-3/0C
The Polaris IT-3/0C Multi-Tap Single-Side Entry Vision Tap Connector features 2 ports sized for 3/0 - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPL3/0-6
The Polaris IPL3/0-6 Multi-Tap Single Side Entry Connector features 6 ports sized for 3/0-6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IPLMD3/0-5
The Polaris IPLMD3/0-5 Multi-Tap Mountable Dual-Sided Entry Connector features 5 ports sized for 3/0 - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
IT-3/0B
The Polaris IT-3/0B Multi-Tap Single-Side Entry Connector features 2 ports sized for 3/0 AWG to 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.Frequently Asked Questions about NSI Industries
