Contact for Pricing
Overview
- UL486A and cULus 155027 certified for copper cables only
- Continuous flared end for easy cable insertion and reduced strand damage
- Tin-plated for corrosion resistance and low contact resistance
- Peep hole for visual inspection of cable termination
- Rated 600V, 90°C temperature, supports 700-500 MCM flexible copper cables
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 700 MCM (STR) |
Color | Pink |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Mounting | 1/2 Mounting Holes |
Number Of Holes | 2 |
Special Features | 700 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Short Barrel - Two Hole - Belled End |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 5.669 IN x 1.722 IN x 1.24 IN |
Package Dimensions (L x W x H) | 14.3993 cm x 4.3739 cm x 3.1496 cm |
Package Weight (Imperial) | 3.120 L |
Package Weight (Metric) | 1.415 kg |
L700NB

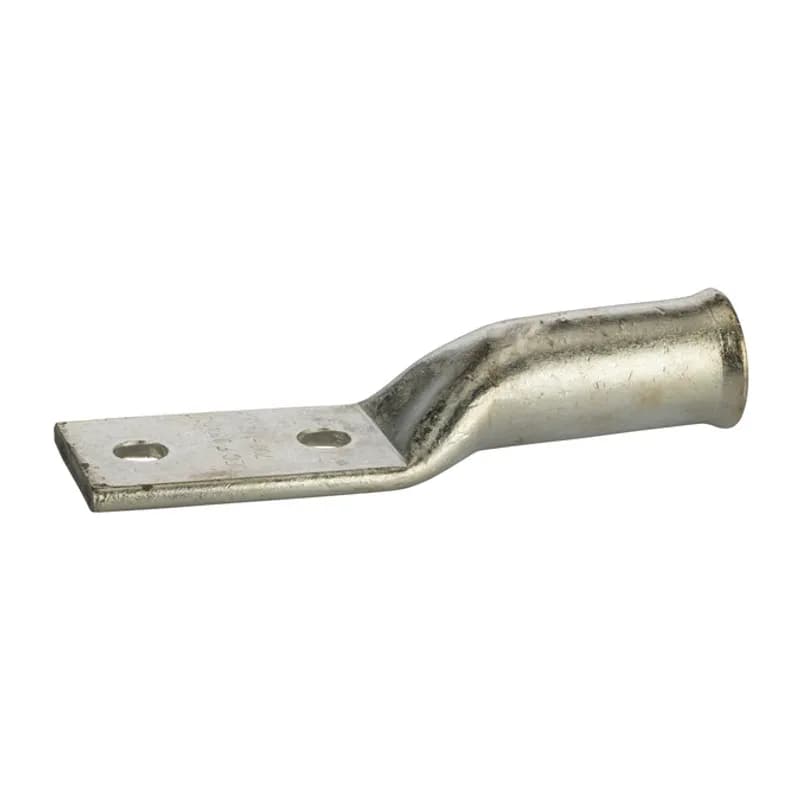

2 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 700 MCM - 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
L1056
1 Hole Long Barrel Copper Compression Lug 1/0 AWG - 5/16" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
GL1038
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 1/0 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
PT400
Stranded Bi-Metallic Pin Terminal 400 MCM Stranded Bi-Metallic Pin Terminal designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.L10N-382P
2 Hole Long Barrel Peep Hole Copper Compression Lug with Peep Hole 1/0 AWG - 3/8" Bolt - 3/4" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
SC-1/0
StandardBarrel TinnedCopperSplice1/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L1048
1 Hole Long Barrel Copper Compression Lug 1&frasl-0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
L1038

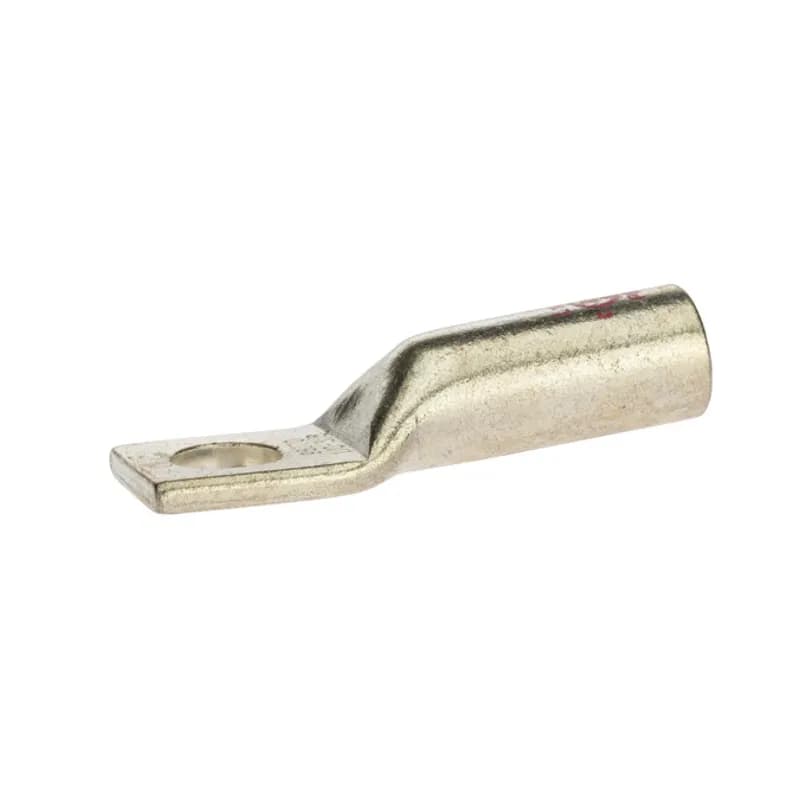

1 Hole Long Barrel Copper Compression Lug 1/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .C-1/0
Long Barrel TinnedCopperSplice1/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
PTO-400
Offset Pin Terminal 400 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
ASC2T
Dual Rated Aluminum Splice 2 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
AL500N
2HoleStandard BarrelAluminum Compression Lug 500 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Copper compression connectors, Insulated wire
- Strip the wire insulation
Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows for complete insertion into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel completely.
- Crimp the connector
Use the appropriate crimping tool to securely crimp the connector onto the conductor, following the manufacturer's suggested crimp locations.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
