NSI Industries DZS200BP - 365 Day Astro Digital Timer 2CH
NSI Industries

DZS200BP

UPC: 786261821836

Contact for Pricing

Overview

Tork 365/7 Day Advanced 2 Channel SPDT Astronomic Time Switch APPLICATIONS: HVAC Equipment Horns and Bells Interior Lighting Electric Motors Outdoor Lighting and Signs FEATURES: TIMING ACCURACY: Line Frequency INPUT VOLTAGE: 120/208-240/277 50/60Hz DRY CONTACTS: SPDT NO. OF CHANNELS: 2 Channel TERMINAL RANGE: #14-#16AWG for Line Input #12-#16AWG Load Outputs OPERATING TEMPERATURE: -40 degrees to +158 degrees F (-40 degrees to 70 degrees C) POWER CONSUMPTION: 5VA Max SCHEDULING: 99 ON/OFF set points allow individual programs for each day of the week at a minimum 1 minute apart. ASTRONOMIC: Adjustable 10 degrees - 60 degrees Northern or Southern latitudes can be individually offset +/-1 to 240 minutes from both sunset and sunrise times. SEASONS: 1 to 4 with different daily schedules which can wrap around into the new year. HOLIDAYS: 1 to 24 individual dates. SIGNAL/PULSE DURATION: 2 different settings per channel: each 1-99 seconds. DAYLIGHT SAVINGS: Automatic adjustment (can be omitted). LEAP YEAR: Automatic compensation. MANUAL OVERRIDE: Until the next regularly scheduled ON or OFF, automatic operation then resumes. In signal mode, activates pulse. CLOCK FORMAT: AM/PM or Military time. POWER OUTAGE BACKUP: Permanent schedule retention. Super-capacitor provides 7 days of real time backup. MEMORY MODULE: Removable MM can be programmed at any one location and inserted into another DZS series unit. See Part #USB-MMP (Sold Separately). COPY FEATURE: Unit can be configured to copy program schedule to multiple memory modules. OPTION: Memory Module Programmer with software for computer connection programming. Also allows stand alone battery operation for portable copy feature. See Part #USB-MMP (Sold Separately). ENCLOSURE: Noryl Indoor/Outdoor NEMA 3R with lockable hasp. MANUFACTURER: Tork UPC: 786261821836 CONTACT RATINGS: GENERAL PURPOSE: 24-277VAC. Contact Rating NO: 30A NC: 30A BALLAST: 120VAC. Contact Rating NO: 30A NC: 10A 277VAC. Contact Rating NO: 20A NC: 10A TUNGSTEN: 120-277VAC. Contact Rating NO: 15A NC: 2A PILOT DUTY: 120-277VAC. Contact Rating NO: 720VA NC: 720VA MOTOR LOAD: 120VAC. Contact Rating NO: 1HP NC: 1HP 208-277VAC. Contact Rating NO: 2HP NC: 2HP RESISTIVE: 28VDC. Contact Rating NO: 30A NC: 30A

    Specifications

    Action
    SPDT
    Application
    NSI
    Base
    Screw
    Contact Rating
    120-208-240-277
    Enclosure
    NEMA 3R Noryl Indoor-Outdoor
    Environmental Conditions
    -40 to + 158 F
    Frequency Rating
    50-60 Hz
    Initiation
    Contact
    Mounting
    Screw Mount
    Number Of Poles
    1
    Operating Temperature
    -40 to + 158 F
    Operating Temperature, Maximum
    158 F
    Operating Temperature, Maximum
    70 C
    Operating Temperature, Minimum
    -40 F
    Operating Temperature, Minimum
    -40 C
    Phase
    Single Phase
    Size
    L=5.000 - H=9.125 - W=4.500 IN
    Special Features
    99 On-Off Set Points - Astronomic Time Switch With Holiday Schedule And Manual Override
    Standard
    UL917
    Timing Range
    365 Day-7 Day Advanced
    Type
    365 Day-7 Day Advanced
    Package Dimensions (L x W x H)
    4.5 IN x 5 IN x 9.125 IN
    Package Dimensions (L x W x H)
    11.43 cm x 12.7 cm x 23.1775 cm
    Package Weight (Imperial)
    1.876 L
    Package Weight (Metric)
    0.851 kg
    The TORK DMZ100B 365/7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

    DWZ100B

    The TORK DMZ100B 365/7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features one SPDT output channel with automatic voltage detection and automatic daylight saving adjustment. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
    The TORK EWZ120 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface to activate lights or signage. Features one SPDT output channel with automatic voltage detection. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

    EWZ120

    The TORK EWZ120 7-Day Astronomic Digital Timer is designed for 30 amp / 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface to activate lights or signage. Features one SPDT output channel with automatic voltage detection. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
    The TORK EWZ201C 7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to turn on lights or signage when the ambient light level drops below a customizable threshold. Use the software interface to choose between 2 variable SPST channels or 1 DPST channel. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.

    EWZ201C

    The TORK EWZ201C 7-Day Astronomic Digital Timer is designed for 120-277 volt loads and has a Noryl plastic enclosure with a locking hasp for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to turn on lights or signage when the ambient light level drops below a customizable threshold. Use the software interface to choose between 2 variable SPST channels or 1 DPST channel. Designed for commercial applications including outdoor lighting, motors, security or parking lot lights, and heating or air conditioning equipment.
    The TORK DGLC200A-NC 24-Hour/7-Day SunSet Astronomic Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features two output channels with automatic voltage detection. Designed for commercial applications including signage, window lights, security or parking lot lights and warehouses.

    DGLC200A-NC

    The TORK DGLC200A-NC 24-Hour/7-Day SunSet Astronomic Digital Timer is designed for 20 amp / 120-277 volt loads and has a plastic enclosure for outdoor use. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features two output channels with automatic voltage detection. Designed for commercial applications including signage, window lights, security or parking lot lights and warehouses.
    The TORK DLC400BP SunSet 365-Day Astronomic Digital Timer is designed for providing total control over 4 different output channels in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four output channel, different settings for holidays and seasons and a 6-month battery backup. Designed for commercial applications including lighting, HVAC equipment, signage, store windows and security or parking lot lights.

    DLC400BP

    The TORK DLC400BP SunSet 365-Day Astronomic Digital Timer is designed for providing total control over 4 different output channels in indoor or outdoor applications. Automate your home or office to save energy and money using the intuitive programming interface and light sensitive activation to activate lights or signage when the ambient light level drops below a customizable threshold. Features four output channel, different settings for holidays and seasons and a 6-month battery backup. Designed for commercial applications including lighting, HVAC equipment, signage, store windows and security or parking lot lights.

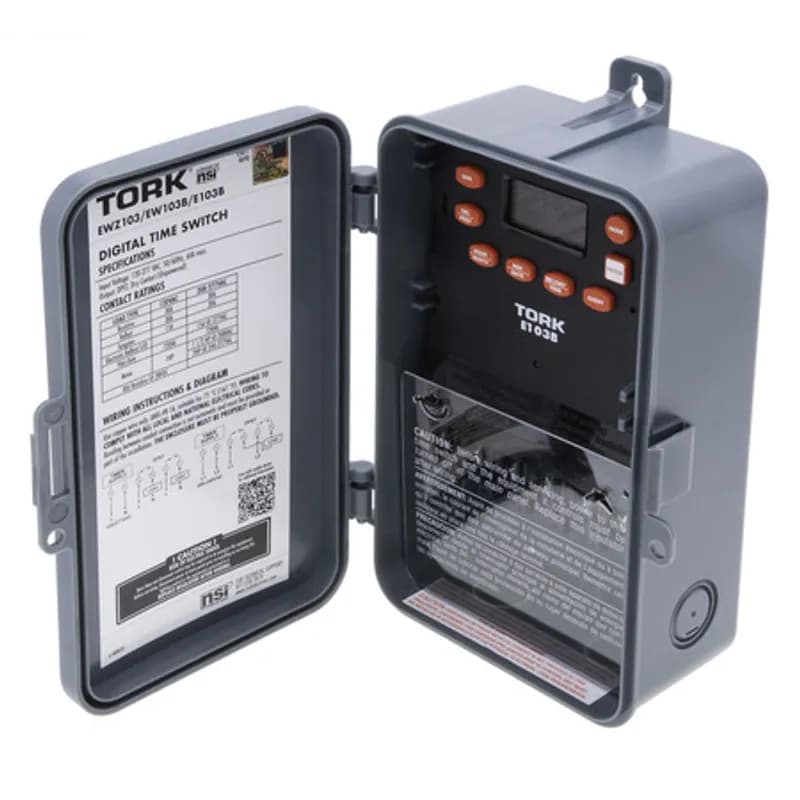

    24 Hr Digital Timer DPST
