Contact for Pricing
Overview
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded
- 5KV is the maximum voltage in all bare splices
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Color | Yellow |
Conductor Range | 250 MCM (STR) |
Connection Type | Compression |
Environmental Conditions | 90 C |
Finish | Tin Plated |
Material | Copper |
Material | Tinned Copper |
Number Of Conductors | 2 |
Number Of Poles | 1 |
Size | L=3.25 - OD=.750 - ID=.590 |
Size | 250 MCM |
Special Features | 250 MCM (STR) - CU Splice |
Standard | UL486A/B |
Temperature Rating | 90 C |
Type | Long Barrel - CU Splice |
Voltage Rating | 35 kV |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 3.252 IN x 0.594 IN x 0.594 IN |
Package Dimensions (L x W x H) | 8.2601 cm x 15.0876 mm x 15.0876 mm |
Package Weight (Imperial) | 6.250 L |
Package Weight (Metric) | 2.835 kg |

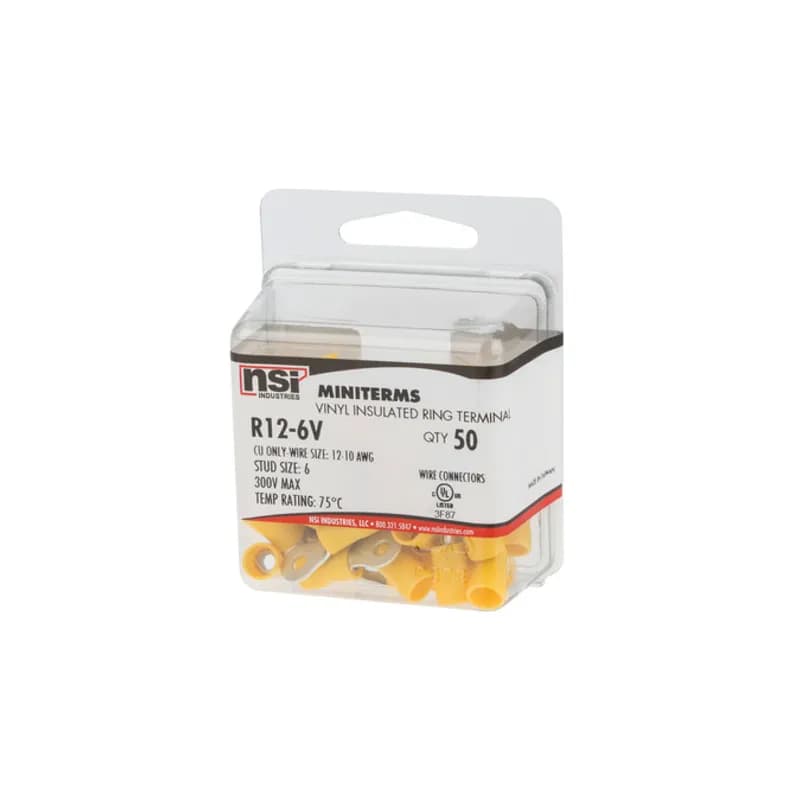

R12-6V
Tin-plated Copper Ring Terminal with Vinyl Insulation and has a basic tongue type ring. Used for wire termination in applications with #6 Stud and 12-10 AWG
PT2/0
Stranded Bi-Metallic Pin Terminal 2/0 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.R16-8V-S
Tin-plated Copper Ring Terminal with Vinyl Insulation and has a basic tongue type ring. Used for wire termination in applications with #8 Stud and 16-14 AWG
R12-14N
Tin-plated Copper Ring Terminal with Nylon Insulation and has a basic tongue type ring. Used for wire termination in applications with 1/4 Stud and 12-10 AWG. 50 per packM12-250-3V
Insulated Male Disconnect is vinyl insulated and and is a miniterm used for wire termination in applications with a 250 Stud and 12-10 AWG. 50 per pack
B12-N
Seamless Butt Splice constructed from electro tin-plated copper tubing with nylon insulation. Features a center stop to insure equal insertion of wires. Used for wire splicing in 12-10 AWG applications
S12-8V-P
12-10 AWG Vinyl Insulated Spade Terminal #8 Stud Vinyl spade terminals have an open tongue end for rapid insertion on the mounting screw. Typically used on free-standing studs. Vinyl insulated spade terminals are made of tin-plated copper, vinyl (PVC). 300V, 75 degrees C. FEATURES: STYLE: Standard MATERIAL: Vinyl QUANTITY: 50 Count WIRE SIZE: 12-10 AWG STUD SIZE: 8 LENGTH: 0.690 WIDTH: 0.316
How to Install Copper Compression Connectors
This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Multimeter
Supplies needed:
Copper compression connectors, Wire brush, Insulation tape
- Strip the wire insulation
Carefully strip the insulation from the conductor without nicking the strands. Ensure the stripped length allows the conductor to fill the barrel of the connector completely.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the barrel of the connector, ensuring it is fully seated.
- Crimp the connector
Using the appropriate crimping tool, apply pressure to crimp the connector securely onto the conductor. Follow the manufacturer's guidelines for crimp locations.
- Verify the connection
Use a multimeter to check the continuity and ensure a proper electrical connection. If necessary, re-crimp the connector.
