NSI Industries C-1000 - Long Barrel TinnedCopperSplice 1000 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
NSI Industries

C-1000

UPC: 662381037664

Documents & Media
Technical BulletinInstallation Instructions

Contact for Pricing

Overview

The NSi Industries C-1000 is a high-conductivity tinned copper compression splice designed for 1000 MCM conductors. Manufactured from premium copper tubing, this long barrel splice offers superior conductivity and durability. Its tin plating provides excellent corrosion resistance, ensuring long-term performance in demanding electrical applications. Each splice is clearly marked with a die index and color-coded (White for 1000 MCM) for quick and accurate identification, streamlining installation and inventory management. Serrations within the barrel indicate precise crimp locations, promoting reliable connections. The C-1000 is UL486A Listed as a wire connector and is suitable for use at voltages up to 35KV when properly installed according to cable manufacturer's voltage stress relief instructions. For bare splices, the maximum voltage rating is 5KV. This connector has a temperature rating of 90°C and a maximum voltage rating of 600V for general use, with the higher voltage rating applicable under specific installation conditions. The C-1000 is designed for Class B or C building wire CU cable only. Its dimensions include an Inner Diameter (I.D.) of 1.189 inches and an Outer Diameter (O.D.) of 1.527 inches, with a substantial barrel length (L) of 6.12 inches, facilitating secure and robust terminations. This splice is ideal for power distribution, industrial wiring, and other heavy-duty electrical infrastructure projects requiring reliable, high-capacity connections. Consult your current NEC manual for maximum ampacity based on specific insulation types and conductor materials. NSi Industries, LLC, a trusted name in electrical components, ensures quality and performance with the C-1000.
  • 1000 MCM conductor size
  • Long barrel design for secure termination
  • High-conductivity tinned copper construction
  • UL486A Listed wire connector
  • Rated for 35KV maximum when properly installed

Specifications

Application
Terminate, Splice, Tap Power Connectors
Color
White
Conductor Range
1000 MCM (STR)
Connection Type
Compression
Environmental Conditions
90 C
Finish
Tin Plated
Material
Copper
Material
Tinned Copper
Number Of Conductors
2
Number Of Poles
1
Size
L=7.00 - OD=1.50 - ID=1.15
Size
1000 MCM
Special Features
1000 MCM (STR) - CU Splice
Standard
UL486A/B
Temperature Rating
90 C
Type
Long Barrel - CU Splice
Voltage Rating
600 V
Voltage Rating
35 kV
Warranty
1 Year
Package Dimensions (L x W x H)
6.122 IN x 1.189 IN x 1.189 IN
Package Dimensions (L x W x H)
15.5499 cm x 3.0201 cm x 3.0201 cm
Package Weight (Imperial)
4.200 L
Package Weight (Metric)
1.905 kg

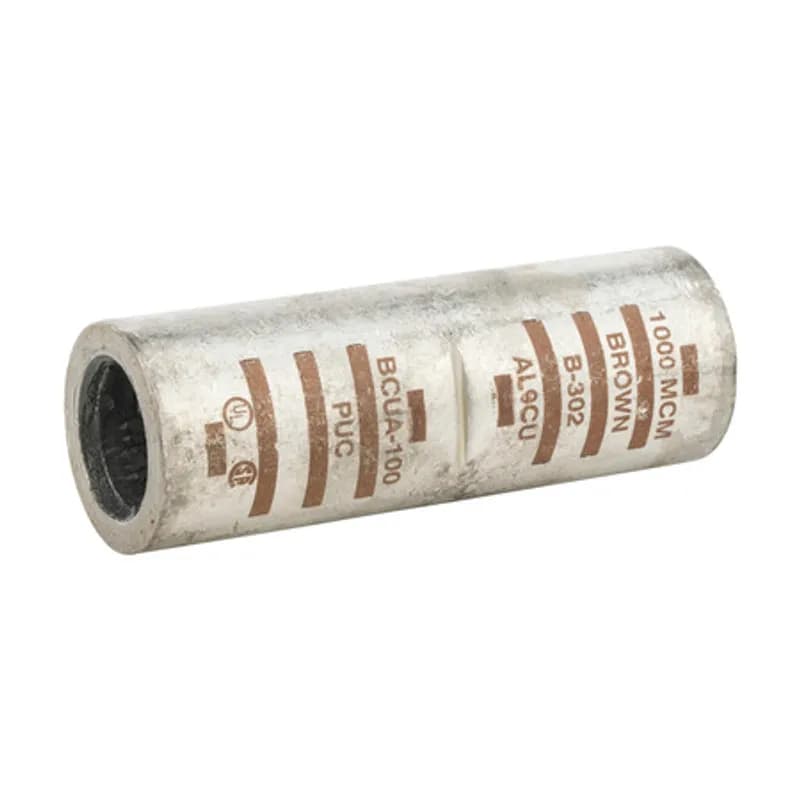

Dual Rated Aluminum Splice 1000 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

ASC1000T

Dual Rated Aluminum Splice 1000 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

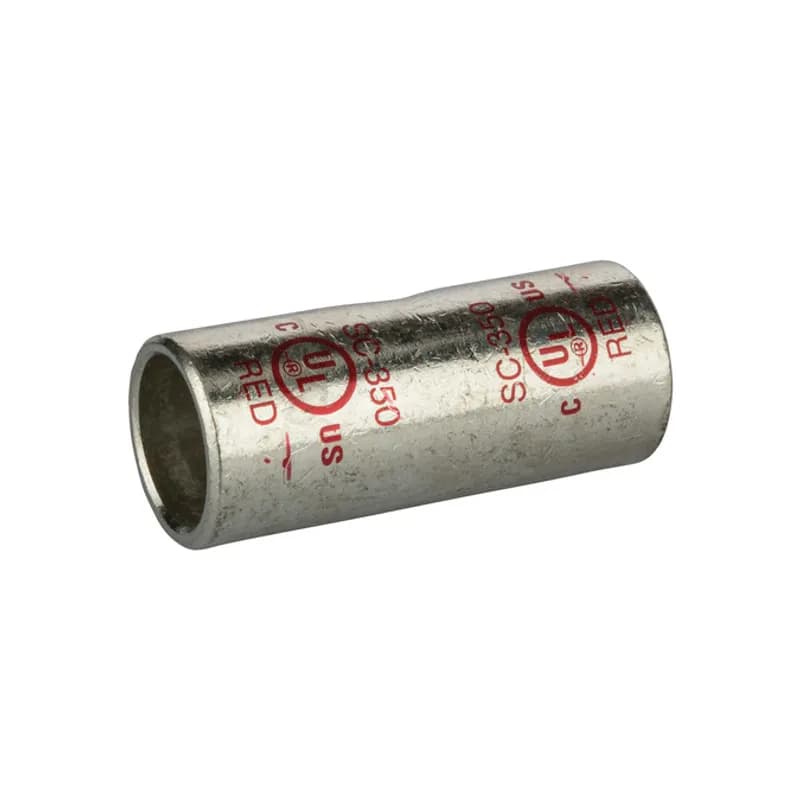

StandardBarrel TinnedCopperSplice350 MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-350

StandardBarrel TinnedCopperSplice350 MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

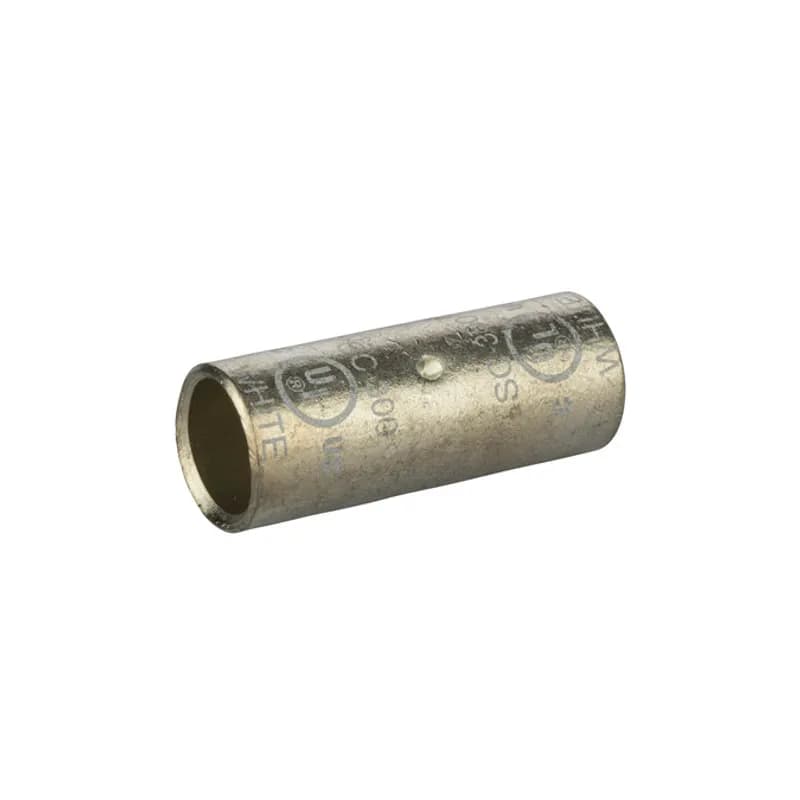

StandardBarrel TinnedCopperSplice300 MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-300

StandardBarrel TinnedCopperSplice300 MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Short Barrel Copper Compression Splice for Flexible Copper Cable 300MCM Compression splices for flexible copper cables are connects that have flared openings at both ends to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. Positive center stop. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only.

SC-300B

Short Barrel Copper Compression Splice for Flexible Copper Cable 300MCM Compression splices for flexible copper cables are connects that have flared openings at both ends to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. Positive center stop. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only.
StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-500

StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

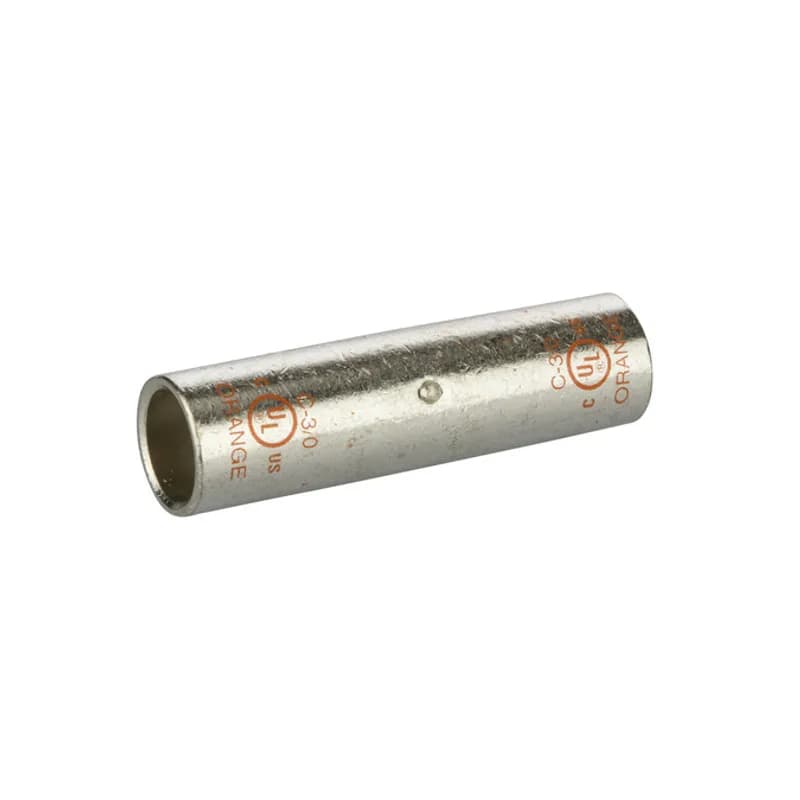

Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

C-3/0

Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

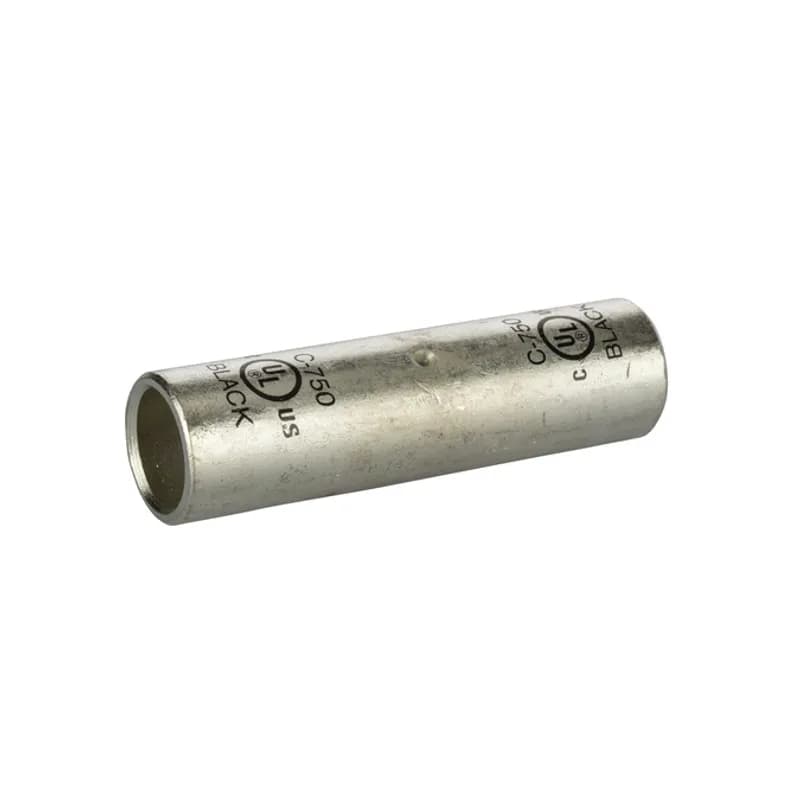

Long Barrel TinnedCopperSplice750 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

C-750

Long Barrel TinnedCopperSplice750 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Long Barrel TinnedCopperSplice6 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

C-6

Long Barrel TinnedCopperSplice6 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
StandardBarrel TinnedCopperSplice2/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-2/0

StandardBarrel TinnedCopperSplice2/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

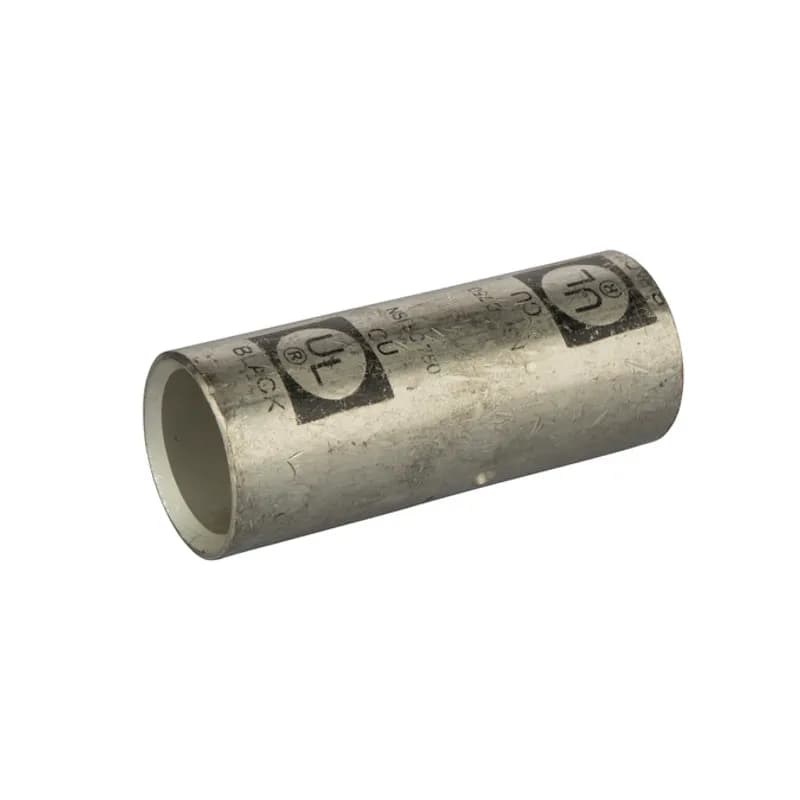

StandardBarrel TinnedCopperSplice750MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-750

StandardBarrel TinnedCopperSplice750MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

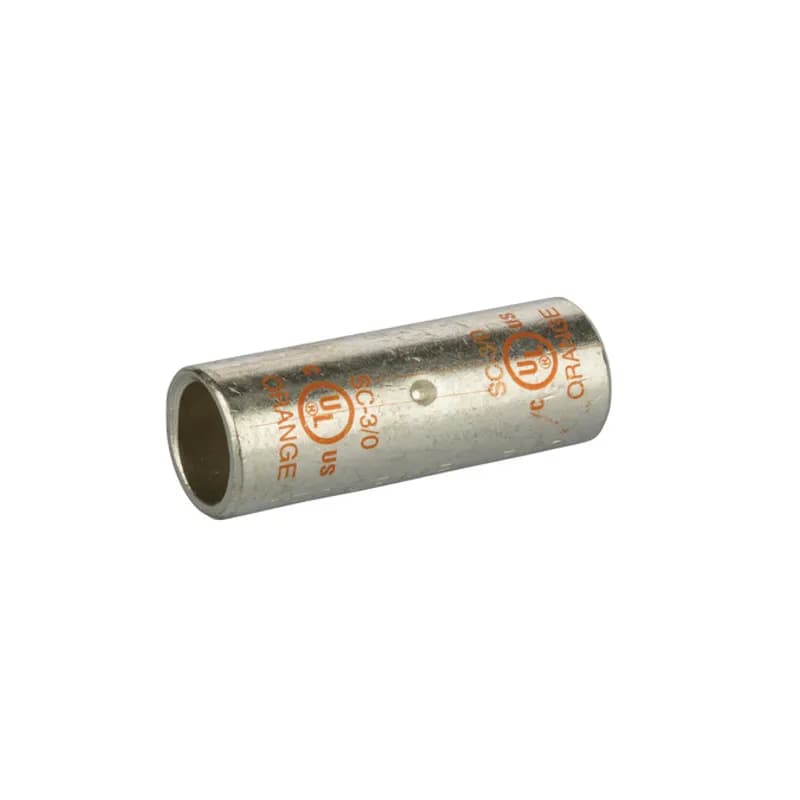

StandardBarrel TinnedCopperSplice3/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

SC-3/0

StandardBarrel TinnedCopperSplice3/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

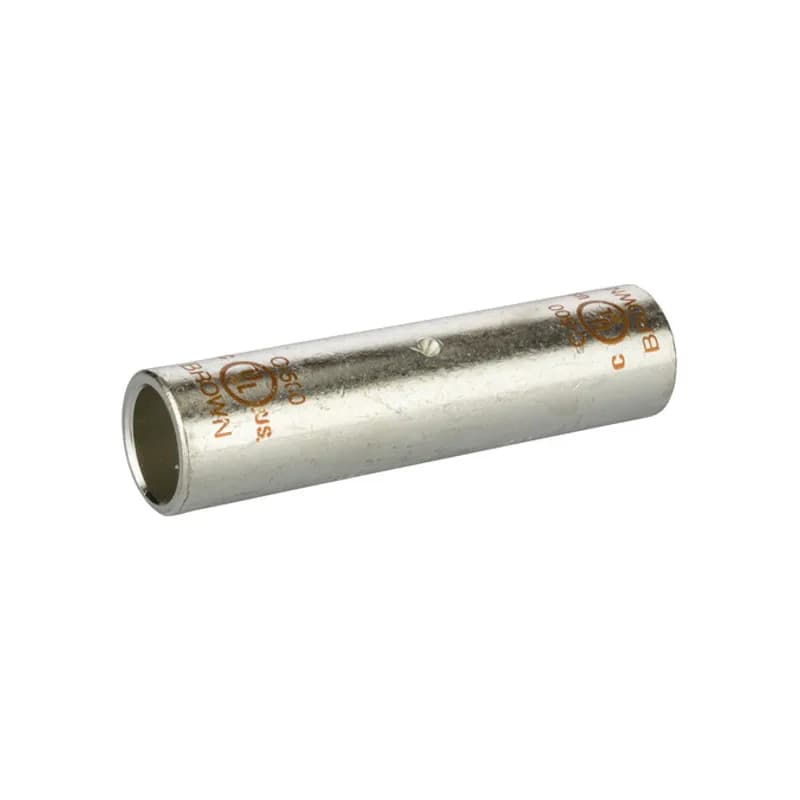

Long Barrel TinnedCopperSplice500 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

C-500

Long Barrel TinnedCopperSplice500 MCM Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

How to Install Copper Compression Connectors

This guide provides step-by-step instructions for installing copper compression connectors, ensuring secure and reliable electrical connections.

Estimated time: 30m

Tools needed:

Wire strippers, Crimping tool, Wire brush

Supplies needed:

Copper compression connectors, Cable

  1. Strip the conductor

    Carefully strip the insulation from the conductor without nicking the strands, ensuring the stripped length allows for complete insertion into the connector barrel.

  2. Clean the conductor

    Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.

  3. Insert the conductor

    Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel fully.

  4. Crimp the connector

    Using the appropriate crimping tool, apply pressure to crimp the connector securely onto the conductor, following the manufacturer's suggested crimp locations.

  5. Verify the connection

    Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
