NSI Industries B16 - 16-14 AWG Bare Butt Splice, 50 Per Pack
NSI Industries

B16

UPC: 662381065278


Documents & Media
Technical Bulletin

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The NSI Industries B16 is an uninsulated butt splice for joining 16-14 AWG solid or stranded wires. Made from electro-tin plated copper tubing with a seamless barrel and brazed seam, it ensures durable crimps. An internal wire stop guarantees proper insertion depth. Rated for 600V per UL 486C and CSA standards, it operates up to 105°C. Supplied in a 50-piece pack, the B16 is ideal for wire repairs and extensions where insulation is handled separately. Its compact design suits low-profile applications.
  • Uninsulated copper tubing butt splice for 16-14 AWG solid or stranded wires
  • Seamless barrel with brazed seam for durable crimping performance
  • Internal wire stop ensures proper insertion depth for reliable connections
  • UL 486C and CSA rated for 600V, operating up to 105°C
  • 50-piece pack, compact design for low-profile applications

Specifications

Application
Wire Splicing
Color
Silver
Environmental Conditions
105 C
Material
Tin Plated Copper
Number Of Terminals
2
Special Features
Non-Insulated 16-10 AWG 100 Pack
Standard
cULus
Terminal Size
.591 Long IN
Type
Non-Insulated Butt Connectors
Voltage Rating
600 V
Warranty
1 Year
Wire Size
16-10 AWG
Package Dimensions (L x W x H)
0.591 IN x 0.058 IN x 0.058 IN
Package Dimensions (L x W x H)
15.0114 mm x 1.4732 mm x 1.4732 mm
Package Weight (Imperial)
0.136 L
Package Weight (Metric)
0.062 kg
16-14 AWG Bare Butt Splice, Bulk

B16-BULK

16-14 AWG Bare Butt Splice, Bulk
16-14 AWG Uninsulated Spade Terminal #8 Stud - 100 Count Uninsulated spade terminals have an open tongue end for rapid insertion on the mounting screw. Typically used on free-standing studs. Uninsulated spade terminals are made of electro tin-plated copper. 600V, 105 degrees C. FEATURES: STYLE: Uninsulated Spade MATERIAL: Tin-plated copper QUANTITY: 100 Count WIRE SIZE: 16-14 AWG STUD SIZE: 8 LENGTH: 1.000 WIDTH: 0.492

S16-8-P

16-14 AWG Uninsulated Spade Terminal #8 Stud - 100 Count Uninsulated spade terminals have an open tongue end for rapid insertion on the mounting screw. Typically used on free-standing studs. Uninsulated spade terminals are made of electro tin-plated copper. 600V, 105 degrees C. FEATURES: STYLE: Uninsulated Spade MATERIAL: Tin-plated copper QUANTITY: 100 Count WIRE SIZE: 16-14 AWG STUD SIZE: 8 LENGTH: 1.000 WIDTH: 0.492
Seamless Butt Splice constructed from electro tin-plated copper tubing with nylon insulation. Features a center stop to insure equal insertion of wires. Used for wire splicing in 16-14 AWG applications

B16-N

Seamless Butt Splice constructed from electro tin-plated copper tubing with nylon insulation. Features a center stop to insure equal insertion of wires. Used for wire splicing in 16-14 AWG applications
22-18 AWG Bare Ring 1/4" Stud, 100/Pack

R22-14

22-18 AWG Bare Ring 1/4" Stud, 100/Pack
12-10 AWG High Temp Ring 14 Stud, Bulk

HTR12-14-BULK

12-10 AWG High Temp Ring 14 Stud, Bulk
16-14 AWG Bare Ring #10 Stud, 100 Per Pack

R16-10

16-14 AWG Bare Ring #10 Stud, 100 Per Pack

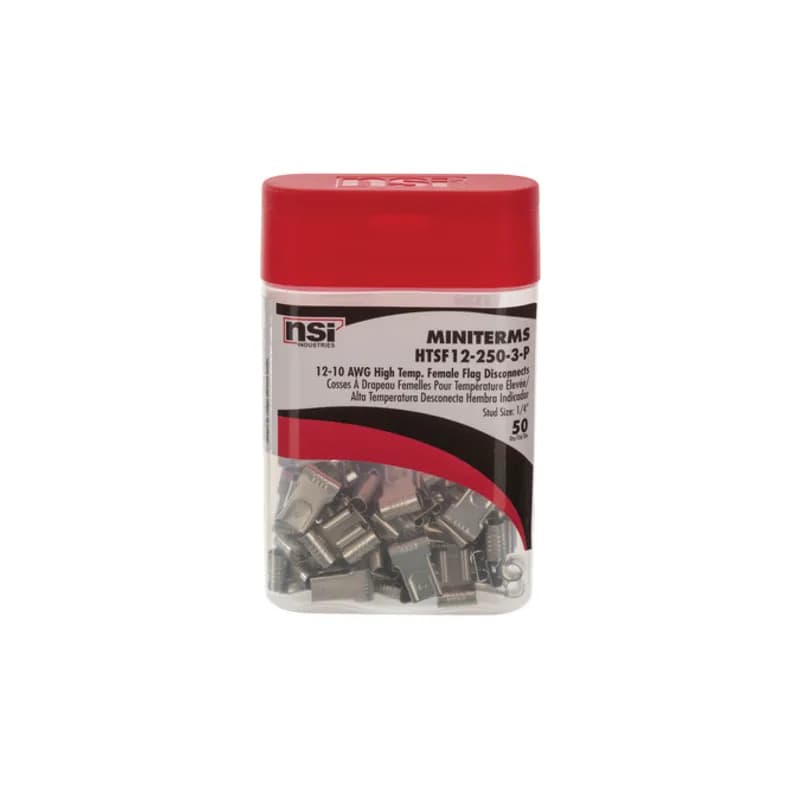

12-10 AWG Uninsulated High Temperature Female Flag Terminal with 0.250 Stud - 50 Count Uninsulated High Temperature Female Flag Terminals have a similar tongue style to a spade. Block spades have longer, flatter sides designed for use in terminal blocks. FEATURES: STYLE: Uninsulated Female Disconnect MATERIAL: Tin Plated Copper QUANTITY: 50 Count WIRE SIZE: 12-10 STUD SIZE: 0.250
