Overview
- UL486A/B and cULus listed for 35kV applications
- Tin-plated aluminum construction for corrosion resistance and low contact resistance
- Center stop ensures proper cable insertion depth
- Color-coded barrel markings with die index for easy tool selection
- Compatible with NSI N1240 and N121D crimp tools
- Rated 600V max (2000V per UL486B), 90°C temperature rating
- Dual-hole design with 1/2" bolt compatibility
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 600 MCM (STR) |
Color | Black |
Environmental Conditions | 90 C |
Finish | Tin Plated Bronze |
Material | Aluminum |
Mounting | 1/2 Mounting Holes |
Number Of Holes | 2 |
Size | L=6.74 - W=1.95 - OD=1.44 = ID=.920 |
Special Features | 600 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Standard Barrel - Two Hole |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 6.748 IN x 1.957 IN x 1.44 IN |
Package Dimensions (L x W x H) | 17.1399 cm x 4.9708 cm x 3.6576 cm |
Package Weight (Imperial) | 1.920 L |
Package Weight (Metric) | 0.871 kg |
GL600NB
2 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 600 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.

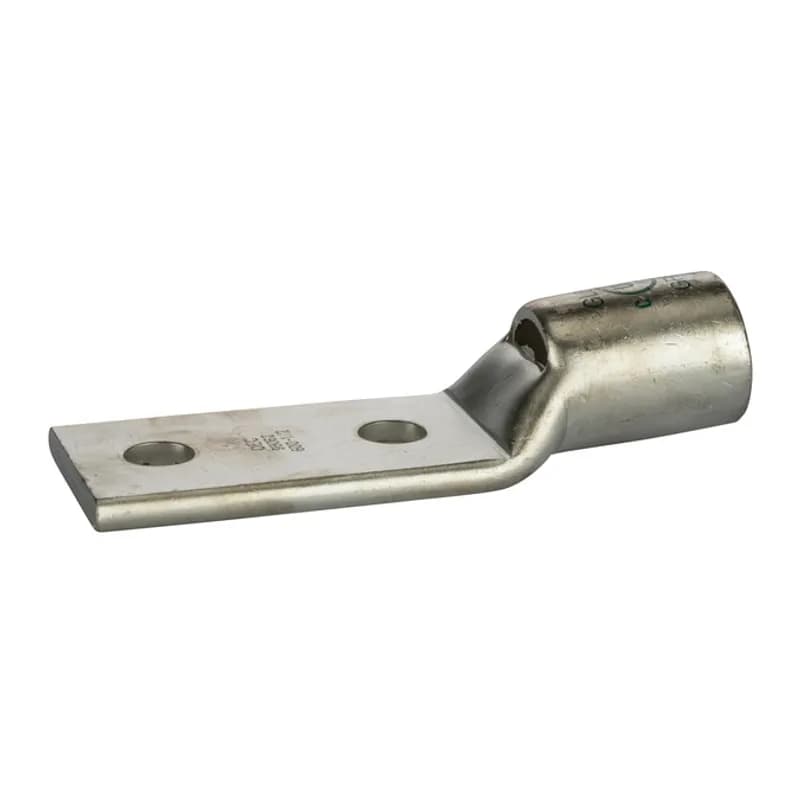

GL600N
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 600 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

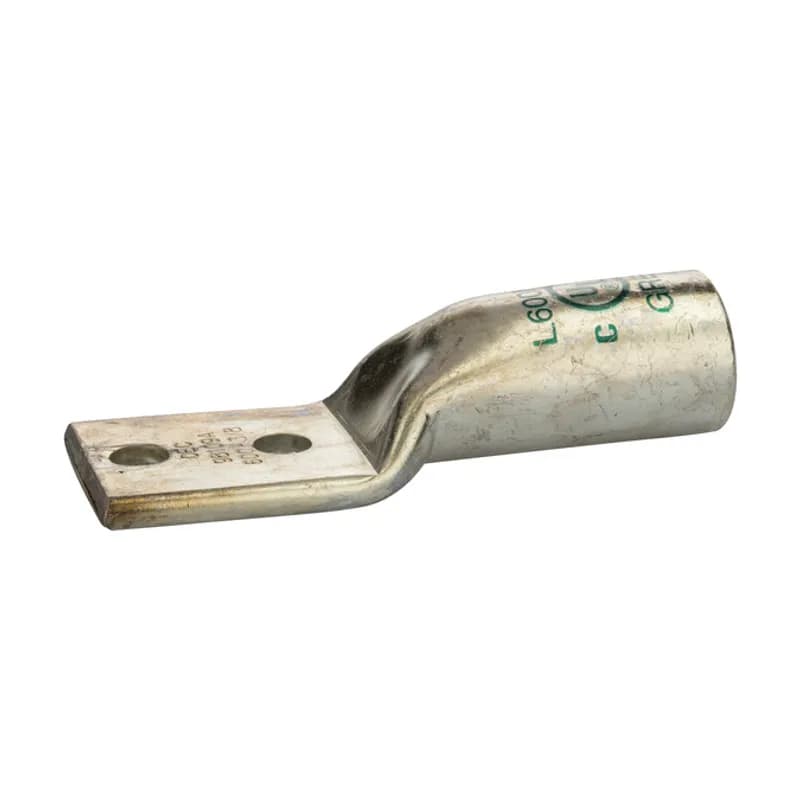

L600N-38
2Hole Long Barrel Copper Compression Lug600 MCM-3/8" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
ASC600T
Dual Rated Aluminum Splice 600 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
PTO-400
Offset Pin Terminal 400 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
ASC4T
Dual Rated Aluminum Splice 4 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
PTS6
Solid Pin Terminal for Copper and Aluminum Conductors 6 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
PTO-750
Offset Pin Terminal 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
ASC350T
Dual Rated Aluminum Splice 350 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
ASC2T
Dual Rated Aluminum Splice 2 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
PTO-3/0
Offset Pin Terminal 3/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
AL250-48
1 HoleStandard BarrelAluminum Compression Lug250MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.How to Install Aluminum Compression Connectors
This guide provides step-by-step instructions for installing aluminum compression connectors, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Aluminum compression connectors, Cable
- Select the appropriate connector
Choose the correct lug or splice connector based on the size of the cable being installed, ensuring it matches the specifications in the provided chart.
- Strip the cable insulation
Carefully strip the insulation from the conductor without nicking the strands, leaving enough length to fully insert the stripped conductor into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel completely.
- Crimp the connector
Using the appropriate crimping tool, crimp the connector according to the manufacturer's specifications, ensuring the number of crimps is per side for a splice connector.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
