Overview
- UL486A/B and cULus listed for 35kV maximum voltage rating
- High-conductivity 6061T-6 aluminum alloy with electro-tin plating for corrosion resistance
- Center stop ensures proper cable installation and crimp integrity
- 2-hole standard barrel design for 1/2" bolt mounting
- Color-coded and die-index marked for easy tool and application reference
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 350 MCM (STR) |
Color | Brown |
Environmental Conditions | 90 C |
Finish | Tin Plated Bronze |
Material | Aluminum |
Mounting | 1/2 Mounting Holes |
Number Of Holes | 2 |
Size | L=5.87 - W=1.51 - OD=1.12 - ID=.720 |
Special Features | 350 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Standard Barrel - Two Hole |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 5.87 IN x 1.52 IN x 1.12 IN |
Package Dimensions (L x W x H) | 14.9098 cm x 3.8608 cm x 2.8448 cm |
Package Weight (Imperial) | 1.920 L |
Package Weight (Metric) | 0.871 kg |
AL350-48
1 HoleStandard BarrelAluminum Compression Lug350MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
ASC350T
Dual Rated Aluminum Splice 350 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
PTS350
Solid Pin Terminal for Copper and Aluminum Conductors 350 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
PTO-300
Offset Pin Terminal 300 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
PTO-350
Offset Pin Terminal 350 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
ASC1000T
Dual Rated Aluminum Splice 1000 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
PTS250
Solid Pin Terminal for Copper and Aluminum Conductors 250 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
PTO-250
Offset Pin Terminal 250 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
PTS300
Solid Pin Terminal for Copper and Aluminum Conductors 300 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
AL1000N
2HoleStandard BarrelAluminum Compression Lug1000MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

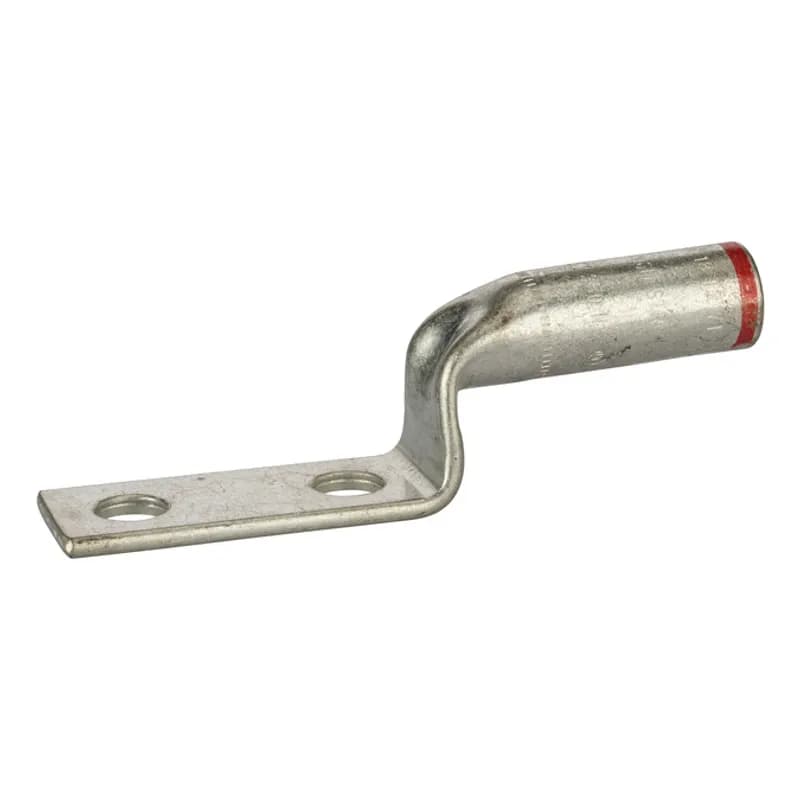

SL350N
2 Hole Long Barrel Copper Stacked Compression Lug 350 MCM - 1/2" Bolt Long Barrel Copper Stacked Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are designed for use with the L-N Series. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference.
GL350N
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 350 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.How to Install Aluminum Compression Connectors
This guide provides step-by-step instructions for installing aluminum compression connectors, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Aluminum compression connectors, Cable
- Select the appropriate connector
Choose the correct lug or splice connector based on the size of the cable being installed, ensuring it matches the specifications in the provided chart.
- Strip the cable insulation
Carefully strip the insulation from the conductor without nicking the strands, leaving enough length to fully insert the stripped conductor into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel completely.
- Crimp the connector
Using the appropriate crimping tool, crimp the connector according to the manufacturer's specifications, ensuring the number of crimps is per side for a splice connector.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
