Contact for Pricing
Overview
- Constructed from high-conductivity aluminum tubing for superior electrical performance.
- Electro-tin plated for excellent corrosion resistance and low contact resistance.
- Features a standard barrel design with two mounting holes for secure termination.
- Center stop ensures proper cable installation and prevents over-insertion.
- UL Listed to 35kV maximum when properly installed; cULus and UL486A/B Listed.
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 300 MCM (STR) |
Color | Blue |
Connection Type | Compression Lug |
Environmental Conditions | 90 C |
Finish | Tin Plated Bronze |
Material | Aluminum |
Mounting | 1/2 Mounting Holes |
Number Of Holes | 2 |
Size | L=5.50 - W=1.37 - OD=1.01 - ID=.650 |
Size | 300 MCM |
Special Features | 300 MCM (STR) - 1/2 Mounting Hole - 1 3/4 Hole Spacing |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Standard Barrel - Two Hole |
Voltage Rating | 600 V |
Voltage Rating | 35 kV |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 5.5 IN x 1.37 IN x 1.01 IN |
Package Dimensions (L x W x H) | 13.97 cm x 3.4798 cm x 2.5654 cm |
Package Weight (Imperial) | 1.620 L |
Package Weight (Metric) | 0.735 kg |
GL300NB
2 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 300 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
L300NB
2 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 300 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
PTS6
Solid Pin Terminal for Copper and Aluminum Conductors 6 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
AL250-48
1 HoleStandard BarrelAluminum Compression Lug250MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
ASC400T
Dual Rated Aluminum Splice 400 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
ASC3/0T
Dual Rated Aluminum Splice 3/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

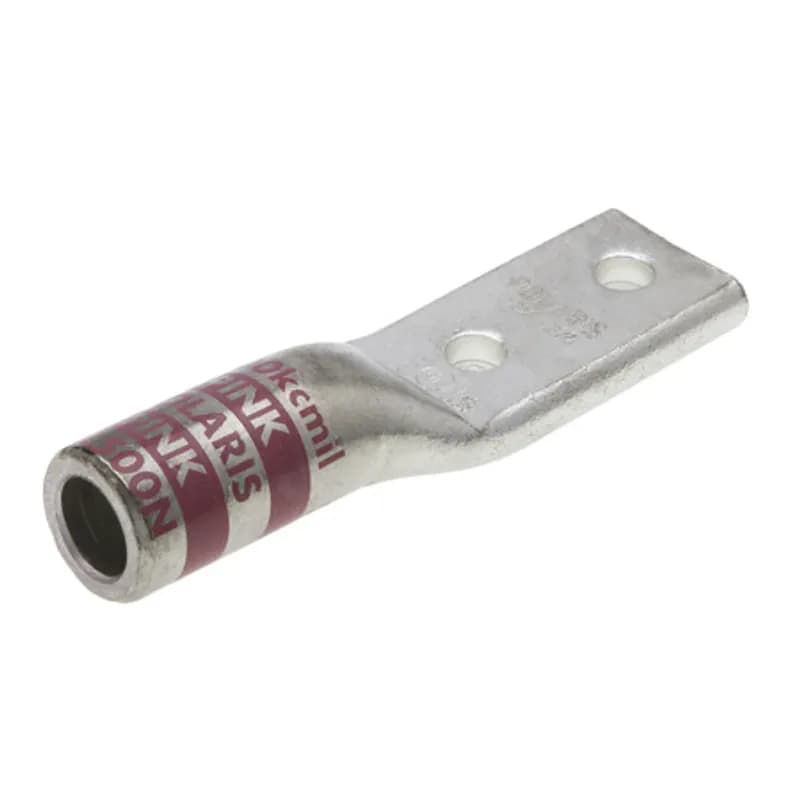

AL500N
2HoleStandard BarrelAluminum Compression Lug 500 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
ASC600T
Dual Rated Aluminum Splice 600 MCM Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
ASC6T
Dual Rated Aluminum Splice 6 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
AL4-14
1 HoleStandard BarrelAluminum Compression Lug4 AWG - 1/4 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.How to Install Aluminum Compression Connectors
This guide provides step-by-step instructions for installing aluminum compression connectors, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Aluminum compression connectors, Cable
- Select the appropriate connector
Choose the correct lug or splice connector based on the size of the cable being installed, ensuring it matches the specifications in the provided chart.
- Strip the cable insulation
Carefully strip the insulation from the conductor without nicking the strands, leaving enough length to fully insert the stripped conductor into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel completely.
- Crimp the connector
Using the appropriate crimping tool, crimp the connector according to the manufacturer's specifications, ensuring the number of crimps is per side for a splice connector.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
