Contact for Pricing
Overview
- High-conductivity aluminum tubing construction
- Electro-tin plated for corrosion resistance
- Center stop for proper cable installation
- Marked with die index and color-coded for easy reference
- UL Listed to 35kV maximum when properly installed
Specifications
Application | Terminate, Splice, Tap Power Connectors |
Cable Size | 250 MCM (STR) |
Color | Red |
Connection Type | Compression |
Current Rating | 250 A |
Environmental Conditions | 90 C |
Finish | Tin Plated Bronze |
Material | Aluminum |
Mounting | 1/2 Mounting Hole |
Mounting Type | 1/2 Bolt |
Number Of Holes | 1 |
Size | L=3.50 - W=1.25 - OD=.921 - ID=.590 |
Size | 250 MCM |
Special Features | 250 MCM (STR) - 1/2 Mounting Hole |
Standard | UL486A/B |
Stud Size | 1/2 IN |
Type | Standard Barrel - One Hole |
Voltage Rating | 35 kV |
Voltage Rating | 600 V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 3.5 IN x 1.26 IN x 0.927 IN |
Package Dimensions (L x W x H) | 8.89 cm x 3.2004 cm x 23.5458 mm |
Package Weight (Imperial) | 2.040 L |
Package Weight (Metric) | 0.925 kg |

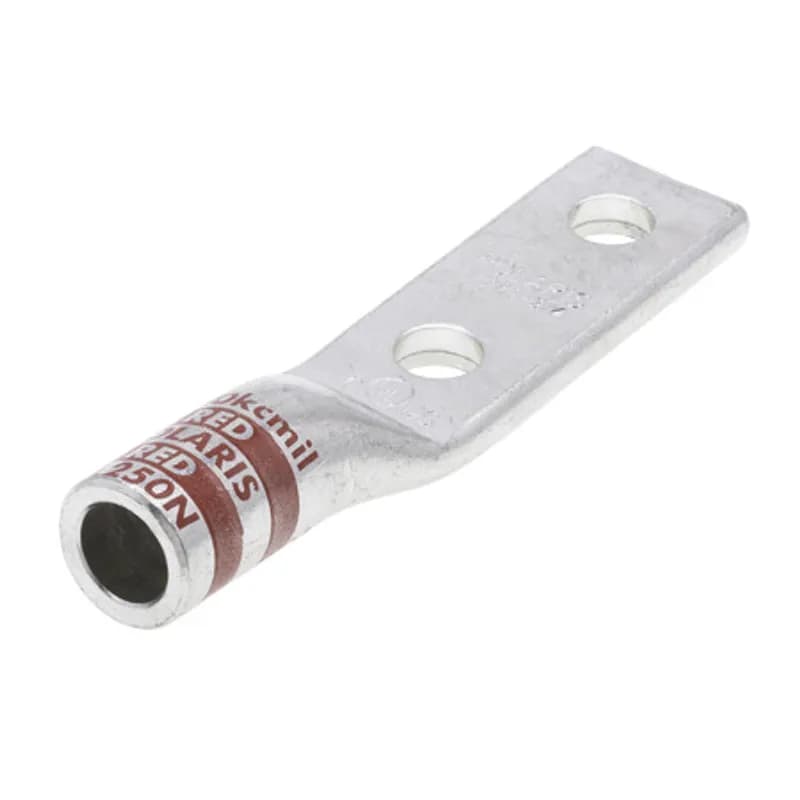

AL250N
2HoleStandard BarrelAluminum Compression Lug 250 MCM -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
ASC3/0T
Dual Rated Aluminum Splice 3/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.

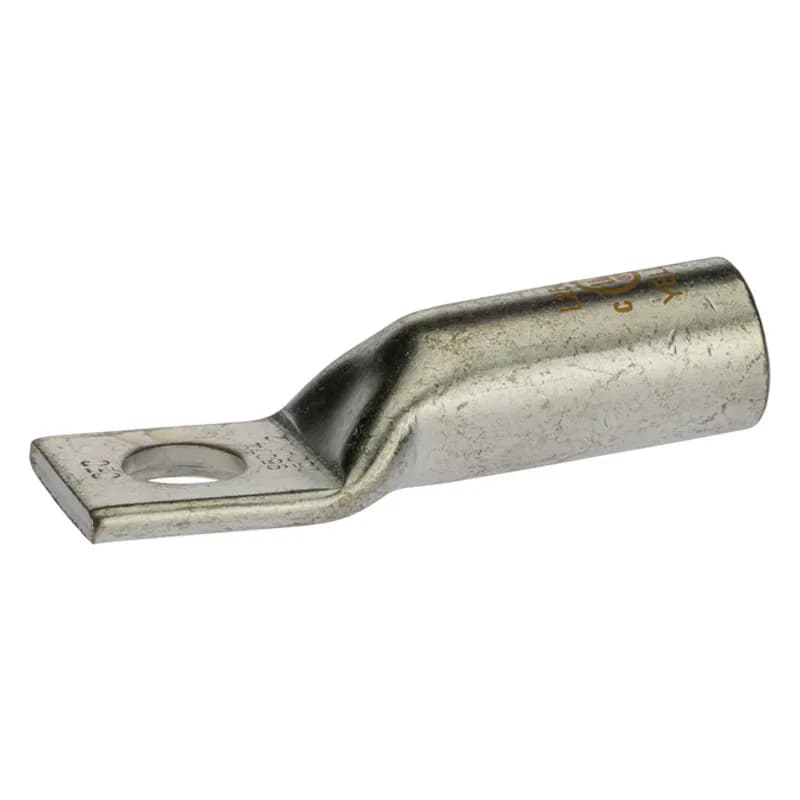

L25048
1 Hole Long Barrel Copper Compression Lug 250 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .

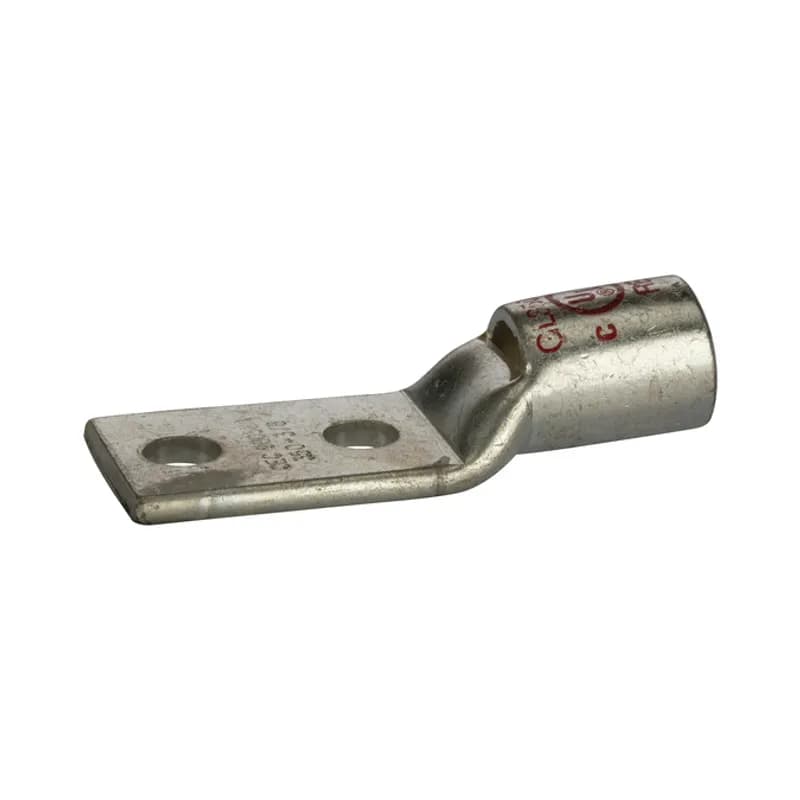

GL350N-38
2HoleShort Barrel Copper Compression Lug w/ PeepHole350MCM-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
L814
1 Hole Long Barrel Copper Compression Lug 8 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
GL350N
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 350 MCM - 1/2" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
GL350NB
2Hole Short Barrel Copper Compression Lug for Flexible Copper Cable350 MCM- 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.

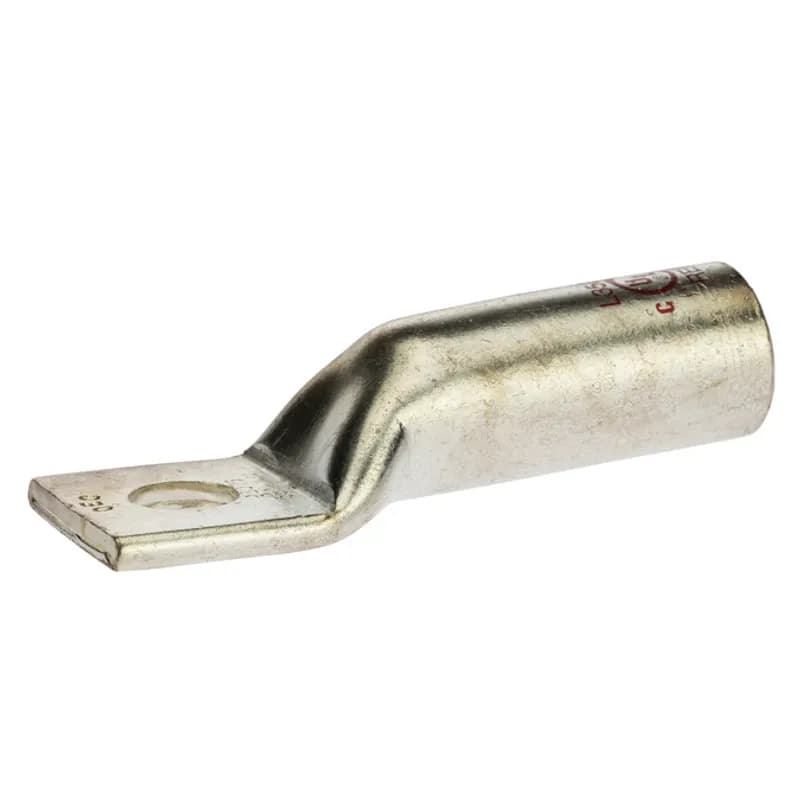

L35048
1 Hole Long Barrel Copper Compression Lug 350 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
SC-8
StandardBarrel TinnedCopperSplice8 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
GL338
1 HoleShort Barrel Copper Compression Lug w/ PeepHole3 AWG-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

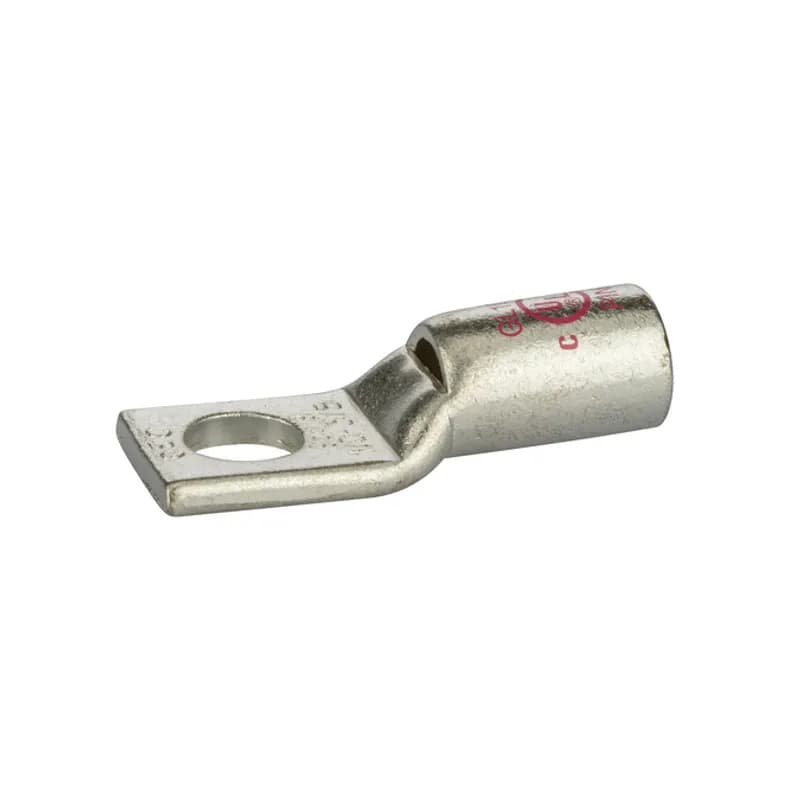

GL1038
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 1/0 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.How to Install Aluminum Compression Connectors
This guide provides step-by-step instructions for installing aluminum compression connectors, ensuring a secure and reliable electrical connection.
Estimated time: 30m
Tools needed:
Wire strippers, Crimping tool, Wire brush
Supplies needed:
Aluminum compression connectors, Cable
- Select the appropriate connector
Choose the correct lug or splice connector based on the size of the cable being installed, ensuring it matches the specifications in the provided chart.
- Strip the cable insulation
Carefully strip the insulation from the conductor without nicking the strands, leaving enough length to fully insert the stripped conductor into the connector barrel.
- Clean the conductor
Use a wire brush to clean the stripped portion of the conductor, removing any oxide films to ensure a good electrical connection.
- Insert the conductor into the connector
Insert the cleaned and stripped conductor completely into the connector barrel, ensuring it fills the barrel completely.
- Crimp the connector
Using the appropriate crimping tool, crimp the connector according to the manufacturer's specifications, ensuring the number of crimps is per side for a splice connector.
- Verify the connection
Inspect the crimped connection to ensure it is secure and that there are no visible gaps or loose strands.
