NSI Industries AL-R2-K6 - Power Distribution Block (2) 500 MCM-4 AWG Primary (6) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
NSI Industries

AL-R2-K6

UPC: 662381165756

Documents & Media
Technical Bulletin

Contact for Pricing

Overview

The NSI Industries AL-R2-K6 Power Distribution Block (SKU: AL-R2-K6) is engineered for robust electrical power distribution in industrial and commercial applications. Constructed from high-strength, tin-plated aluminum alloy, this block ensures excellent conductivity and durability. It is mounted on a high-strength glass-filled polyester base, providing superior insulation and mechanical stability. The AL-R2-K6 features two primary terminals capable of handling conductors from 500 MCM down to 4 AWG, and six secondary terminals accommodating conductors from 2/0 AWG down to 14 AWG. This configuration allows for efficient consolidation and distribution of power from a single source to multiple circuits. Designed for versatility, each block can function independently or be combined with other blocks to create multi-pole configurations, offering scalable solutions for complex electrical systems. The IP20 finger-safe rating ensures protection against accidental contact, enhancing safety in operational environments. Mounting options include direct DIN rail clipping onto symmetric DIN rails or panel mounting, facilitating straightforward integration into existing control panels and electrical enclosures. The AL-R2-K6 supports a maximum voltage rating of 600 VAC/DC, making it suitable for a wide range of power distribution needs. Its tin-plated aluminum construction is compatible with both aluminum and copper conductors, offering flexibility in wiring choices. This distribution block is ideal for panel building, machine manufacturing, and power supply consolidation where reliable and safe power distribution is paramount. The block's design allows for direct or cable connections, further simplifying installation and maintenance procedures. For enhanced system building, NSI Industries also offers accessory Type 4 connection devices for linking multiple blocks together.
  • One-piece connectors
  • No assembly on job site
  • Default SCCR Rating 10,000 Amps
  • 350 Amps Per Pole
  • 2 Mounting Holes

Specifications

Amperage Rating
760 Amps Per Pole
Application
NSI
Color
Black
Material
Aluminum, Glass Filled Polyester Base
Material
Aluminum;Glass Filled Polyester Base
Material
Aluminum alloy, glass-filled polyester
Mounting
2 Mounting Holes
Number Of Terminals
8
Size
L=5.50 - H=3.25 - W=2.90 IN
Special Features
(2) 500 MCM-4 AWG (Line Side) - (6) 2/0-14 AWG (Load Side) - 760 Amps Per Pole
Standard
UL1059
Type
Double Primary
Voltage Rating
600 V
Warranty
1 Year
Wire Size
(2) 500 MCM-4 AWG(LINE) - (6) 2/0-14 AWG(LOAD)
Package Dimensions (L x W x H)
5.5 IN x 2.9 IN x 3.25 IN
Package Dimensions (L x W x H)
13.97 cm x 7.366 cm x 8.255 cm
Package Weight (Imperial)
4.464 L
Package Weight (Metric)
2.025 kg

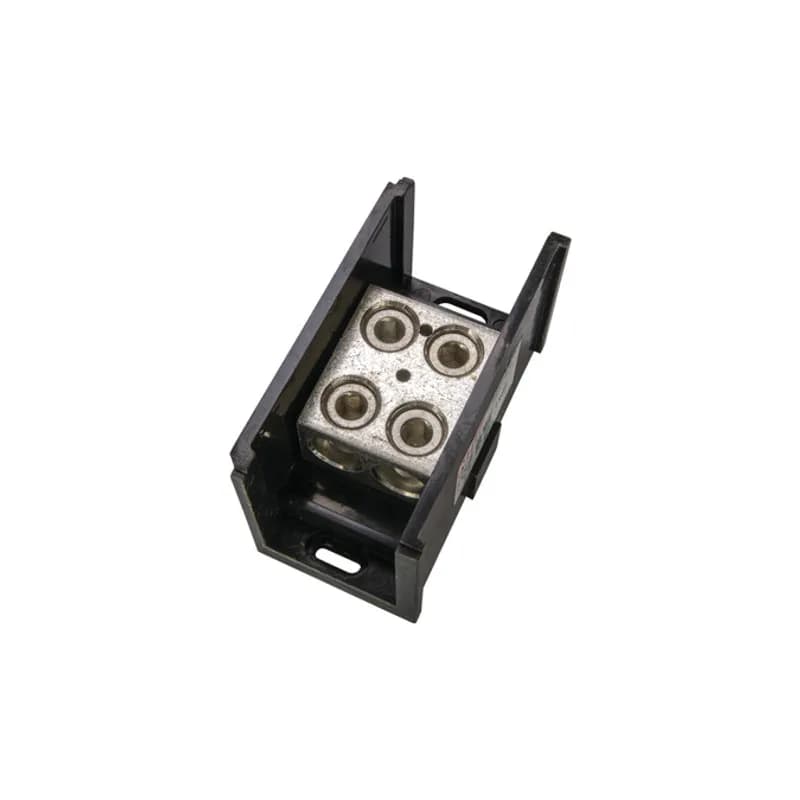

Power Distribution Block (2) 500 MCM-4 AWG Primary (2) 500 MCM-4 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AL-R2-R2

Power Distribution Block (2) 500 MCM-4 AWG Primary (2) 500 MCM-4 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

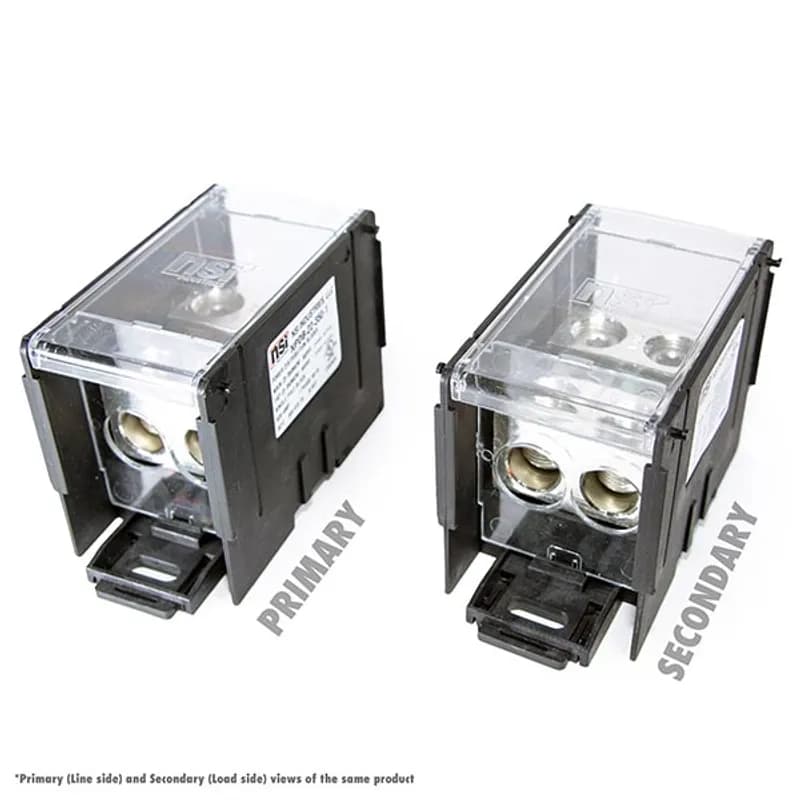

100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 2 x 500 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-22-500-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 2 x 500 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 4 x 4/0-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-24-600-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 4 x 4/0-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 600 MCM-4 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-212-600-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 600 MCM-4 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-212-350-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 750-250 MCM Line, 1 x 750-250 MCM Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-11-750-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 750-250 MCM Line, 1 x 750-250 MCM Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 500 MCM-4 AWG Line, 1 x 500 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-11-500-1

100kA Short Circuit Current Rated Power Distribution Block. 1 x 500 MCM-4 AWG Line, 1 x 500 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

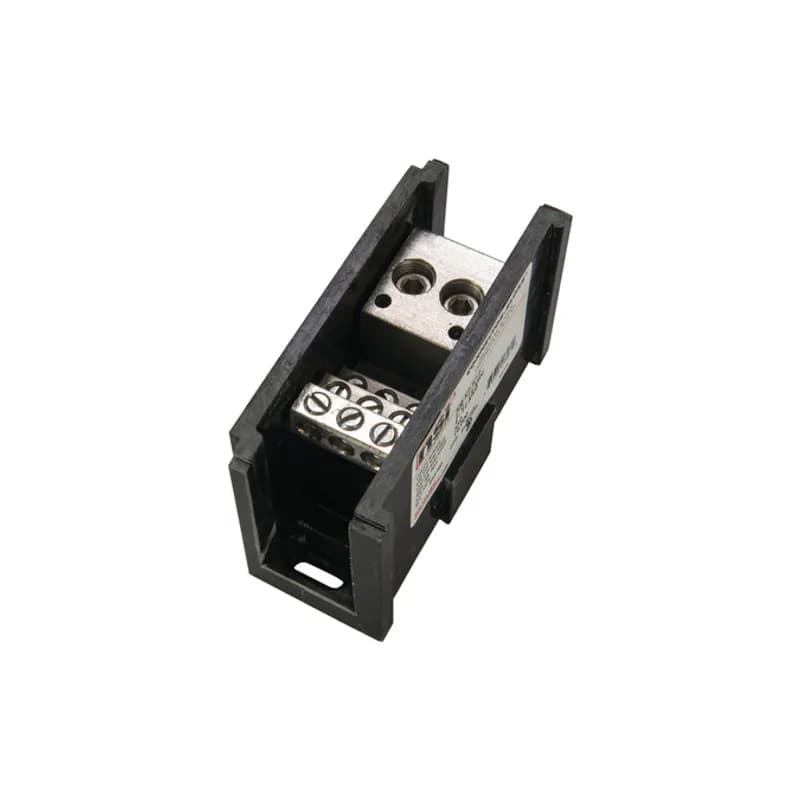

Power Distribution Block (2) 2/0-14 AWG Primary(12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AM-K2-H12

Power Distribution Block (2) 2/0-14 AWG Primary(12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
100kA Short Circuit Current Rated Power Distribution Block. 2 x 2/0-14 AWG Line, 2 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

NPDB-22-2/0-1

100kA Short Circuit Current Rated Power Distribution Block. 2 x 2/0-14 AWG Line, 2 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

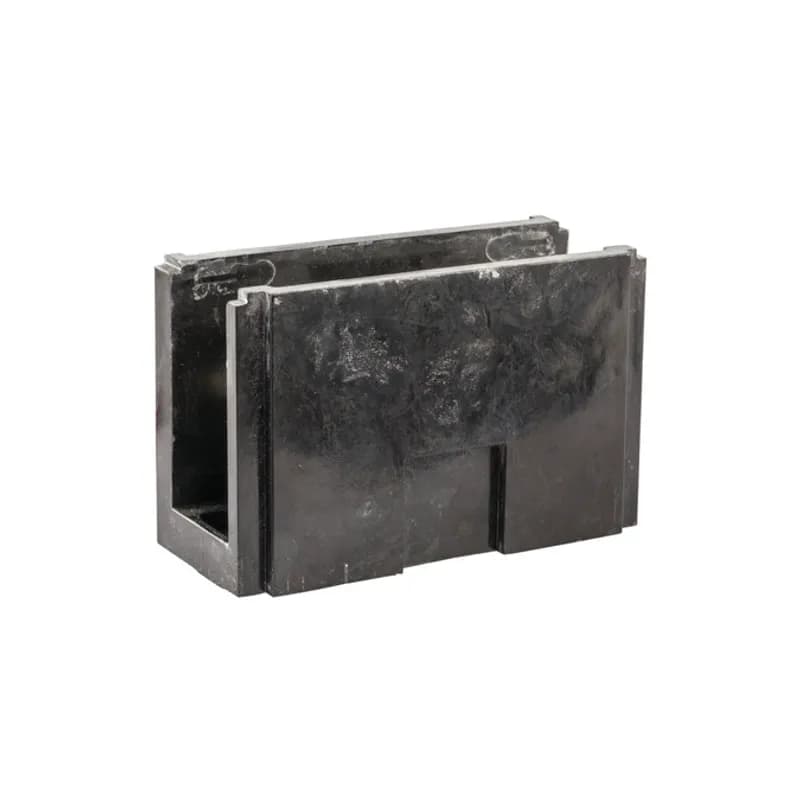

Power Distribution Block (1) 350 MCM-6 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
