Overview
- 4-port step panel lug for 800-300 MCM copper or aluminum conductors
- Constructed from 6061T-6 aluminum alloy with electro-tin plating
- UL486A/B Listed and UL Listed E155027
- Rated for 600V (2000V max per UL486B) and 90°C temperature
- Stacked wire holes minimize connector width for space-saving installations
Specifications
Connection Type | Screw Terminal |
Material | 6061T-6 Aluminum Alloy |
Mounting Type | Panel Mount |
Poles | 4 |
Series | 800T |
Size | 4-port step panel lug for 800-300 MCM conductors |
Voltage Rating | 600 V |
Warranty | 1 Year |

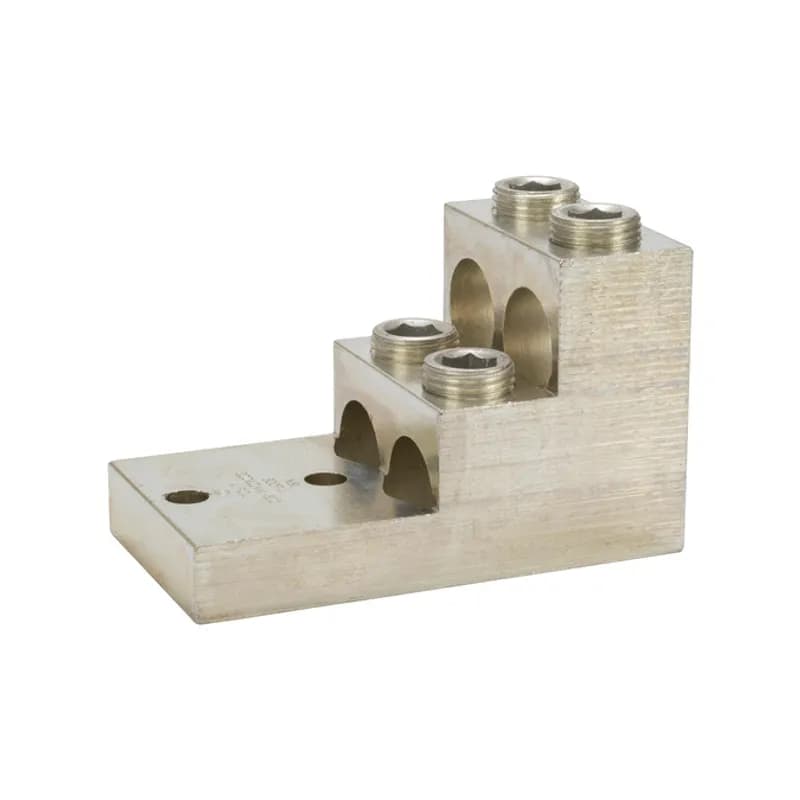

800T-4
4 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

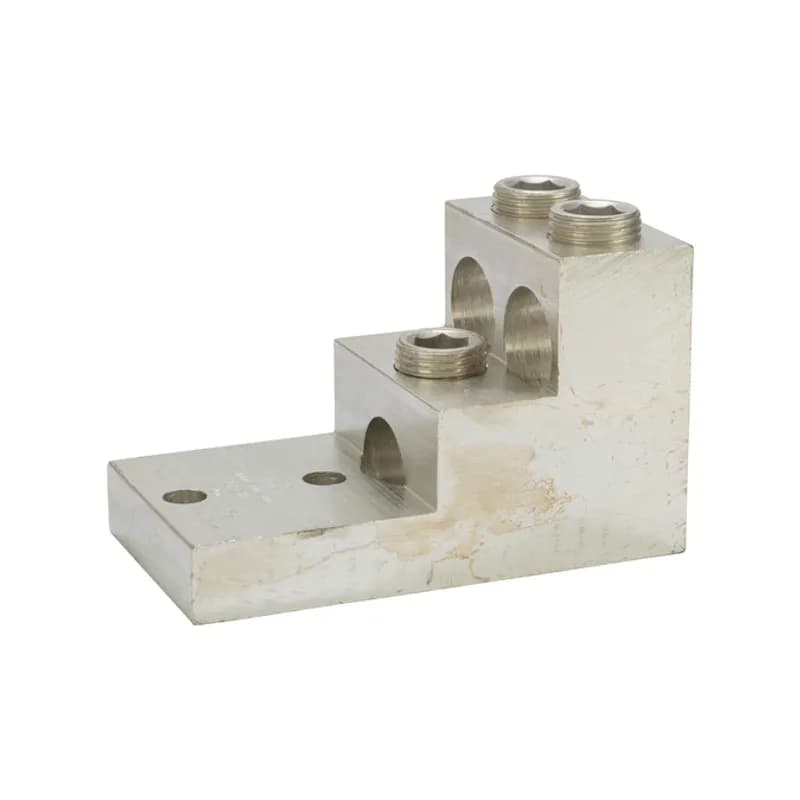

800T-3
3 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
3-800LL4
3 Port Panelboard Lug 800 MCM - 350 MCM Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
3/0T
Aluminum Dual-Rated Single Lug 3/0-6 AWG with 1/4 Inch bolt size for use with copper or aluminum conductors. These Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .
ALI-WMCT
Aluminum and Copper Lay-in Lug that was designed for use with Wire Mesh Cable Tray. Lug conductor range: Aluminum or Copper #4-#14 AWG

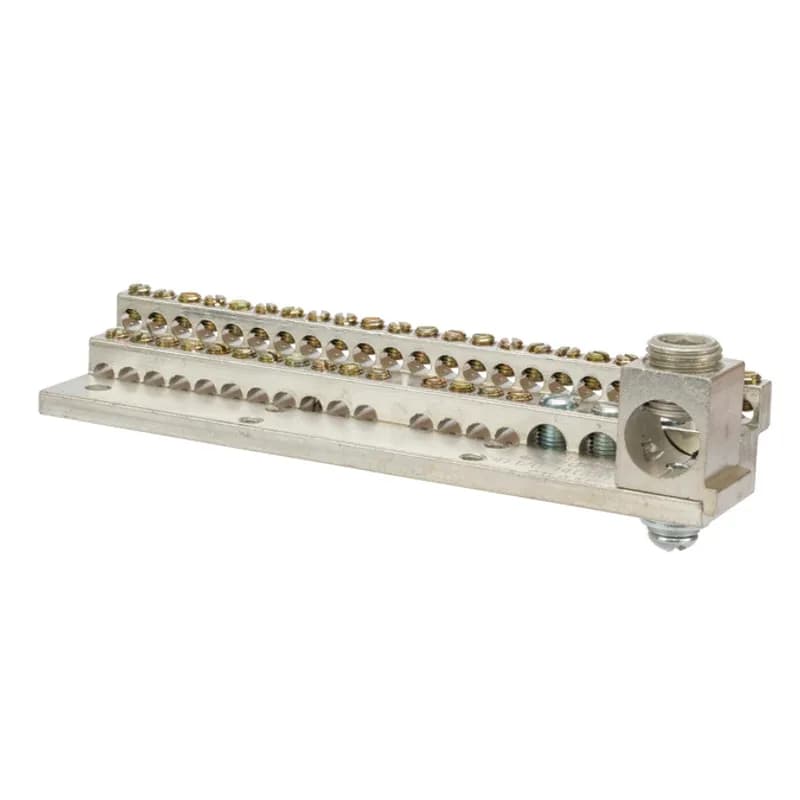

2042M
225A Stacked Neutral Bar, 4-14 AWG 38 Circuits, 1/0-14 AWG 4 Circuits & 350 MCM - 6 AWG Main Lug
3-800L2/L4
3 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
