Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- Zinc die cast construction for corrosion resistance and mechanical strength
- 1-inch insulated throat for electrical isolation and short circuit protection
- Two-screw design for secure mechanical and electrical connections
- Strap mounting type for easy installation on panels, enclosures, or DIN rails
- Suitable for indoor and outdoor industrial applications
Specifications
Angle | 180 Deg |
Application | Recommended cable types for use with steel or aluminum interlocked Metal Clad cable .750" to 1.04" (6/4 to 4/3) Insulator rated 105 degree C. |
Conductor Range | .750" to 1.04" (6/4 to 4/3) |
Connection Type | Two Screw |
Connector Type | Two Screw, Strap Type, Insulated |
Finish | Ball burnish |
Material | Zinc Die Cast |
Mounting Type | Strap |
Number Of Conductors | 1 Cable |
Series | 683 |
Size | 1 IN |
Special Features | Round Opening |
Standard | UL |
Temperature Rating | 105?°C |
Trade Size | 1 in |
Type | Connector |
Package Weight (Imperial) | 0.160 L |
Package Weight (Metric) | 0.073 kg |

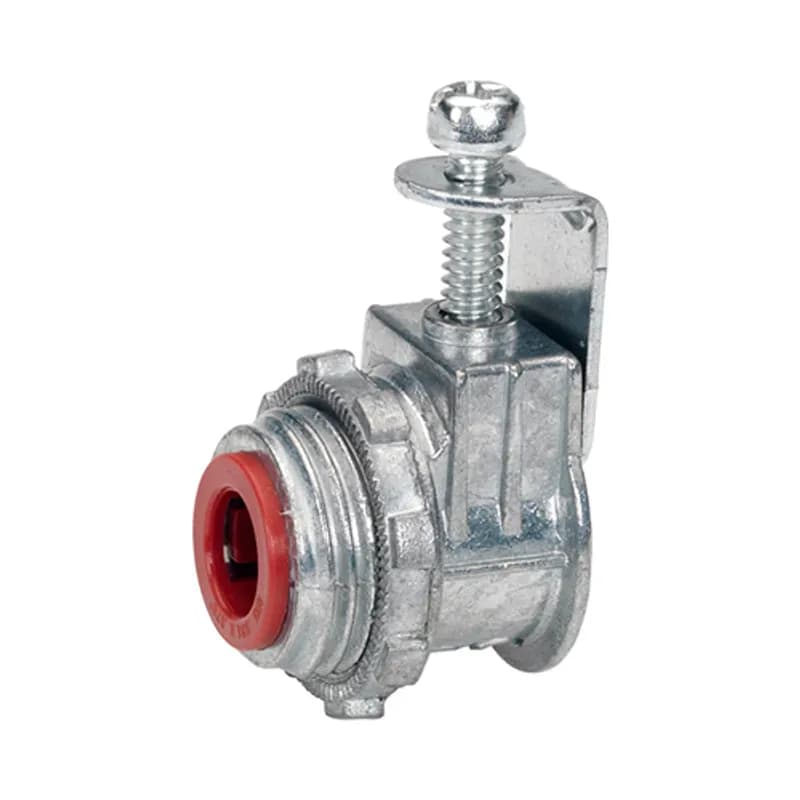

560-DCI2
Connector, Strap, Single Tri-Drive Screw, Zinc Die Cast, Insulated Throat, 3/8 Inch FMC 12/2 - 10/4 NM
Frequently Asked Questions
What is the UPC Number for the 683-DCI2 connector?
The UPC Number for this product is 781747166838.
What material is the 683-DCI2 connector made from?
The 683-DCI2 connector is made from Zinc Die Cast.
What is the finish of the 683-DCI2 connector?
The connector features a ball burnished, mirror smooth finish.
What cable types are recommended for this connector?
It is recommended for steel or aluminum interlocked Metal Clad cable with a diameter range of .750 in to 1.04 in (6/4 to 4/3).
What is the required insulator rating for compatible cables?
Compatible cables must have an insulator rated for 105 degrees C.
What is the UL File Number for this product?
The UL File Number for this product is UL514B.
What is the trade size of the 683-DCI2 connector?
The trade size of the connector is 1 inch.
Where is the 683-DCI2 connector manufactured?
This connector is manufactured in the USA.
What is the standard package quantity for this connector?
The standard package quantity for the 683-DCI2 connector is 100 units.
What are the dimensions of the 683-DCI2 connector?
The dimensions are A=2 in, B=1-1/4 in, C=9/16 in, D=5/8 in, and E=3/4 in.
