UPC: 662381407122
Contact for Pricing
Overview
- Made from 6061-T6 aluminum alloy for durability and conductivity
- Electro-tin plated to reduce contact resistance
- Accommodates both copper and aluminum conductors (350-6 AWG)
- Rated for 600V and 90°C, UL 486A/B Listed
- Set-screw design ensures secure, stable connections
Specifications
Connection Type | Set-Screw |
Material | 6061-T6 aluminum alloy |
Series | 2TR |
Voltage Rating | 600V |
Warranty | 1 Year |
Package Dimensions (L x W x H) | 5.6 IN x 4.1 IN x 0.65 IN |
Package Weight (Imperial) | 0.070 L |
Package Weight (Metric) | 0.032 kg |
4-1000L4

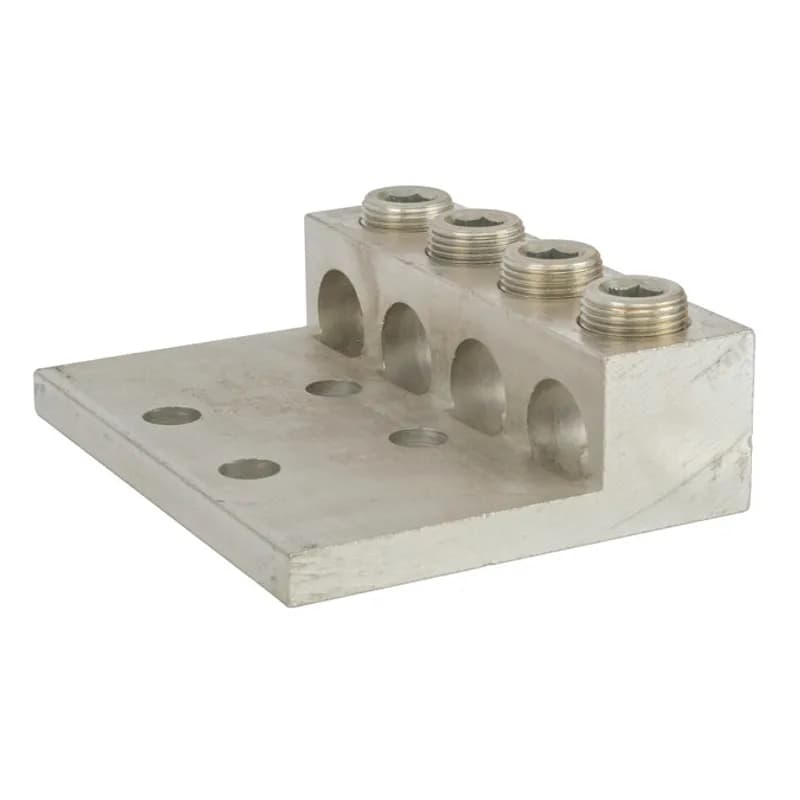

4 Port Panelboard Lug 1000 MCM - 500 MCM Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75".
1000L2
1 Port Panelboard Lug 1000 MCM - 500 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
AL-R2-K6
Power Distribution Block (2) 500 MCM-4 AWG Primary (6) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
AL-R2-R2
Power Distribution Block (2) 500 MCM-4 AWG Primary (2) 500 MCM-4 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
AM-K2-H12
Power Distribution Block (2) 2/0-14 AWG Primary(12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
NPDB-14-2/0-1
100kA Short Circuit Current Rated Power Distribution Block. 1 x 2/0-14 AWG Line, 4 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
NPDB-22-500-1
100kA Short Circuit Current Rated Power Distribution Block. 2 x 500 MCM-4 AWG Line, 2 x 500 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
APS02
Aluminum Dual-Rated Split Bolts for 8 - 2 STR are made from tin-plated aluminum. UL-486B listed for aluminum and copper conductor combinations.NPDB-22-2/0-1
100kA Short Circuit Current Rated Power Distribution Block. 2 x 2/0-14 AWG Line, 2 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
NPDB-212-350-1
100kA Short Circuit Current Rated Power Distribution Block. 2 x 350 MCM-6 AWG Line, 12 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
NPDB-11-2/0-1
100kA Short Circuit Current Rated Power Distribution Block. 1 x 2/0-14 AWG Line, 1 x 2/0-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
AM-P1-H6
Power Distribution Block (1) 350 MCM-6 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.Frequently Asked Questions about NSI Industries
