Contact for Pricing
Overview

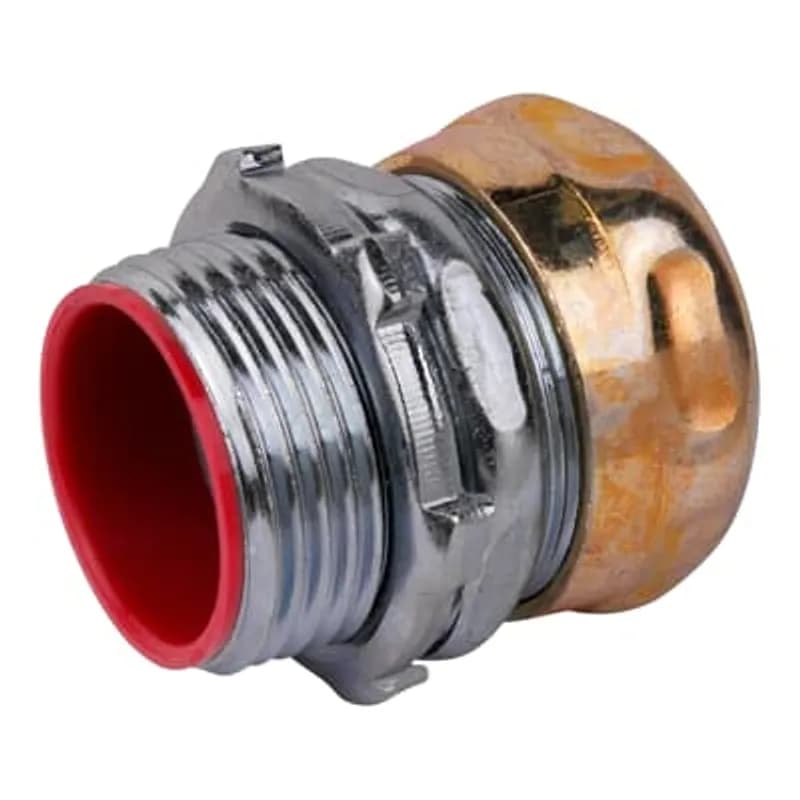

- 3-1/2" size for standard conduit systems
- NPT thread connections for secure installation
- Raintight and insulated design for protection against moisture and contaminants
- Meets U.L. 514B, CSA C22.2 No. 18, and NEMA FB1 standards
- Made in the US with electro zinc-plated and chromate-coated steel/malleable iron for durability
Specifications
Application | Compression style connector with internal sealing ring and knockout gasket to create a raintight seal when connecting EMT to box or enclosure. With Bridgeport’s newly redesigned Raintight Compression Connectors, 256-RTI2 thru 259-RTI2, contractors can install just one wet location fitting for either thread less Rigid / IMC or EMT. These 3-1/2” dual Listed Zinc Alloy fittings come standard with a 105° C temperature rated insulated throat and the words “Rigid / EMT and RAINTIGHT” clearly cast into the body. This marking helps the AHJ to precisely confirm the products intended use. |
Connection Type | NPT Thread |
Connector Type | Compression |
Insulation | Insulated Throat |
Ip Rating | IP66/IP67 |
Material | Electro zinc-plated and chromate-coated steel/malleable iron |
Material | Electro Zinc-Plated Steel / Malleable Iron |
Material Quality | Zinc Die Cast |
Nema Rating | NEMA FB1 |
Series | 258-RTI2 |
Size | 3-1/2 IN |
Special Features | The Dual Internal sealing rings create a raintight seal. |
Standard | cULus |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Trade Size | 3-1/2 in. |
Type | Raintight Compression |
Package Weight (Imperial) | 2.380 L |
Package Weight (Metric) | 1.080 kg |
Frequently Asked Questions
What is the trade size of the 258-RTI2 connector?
The trade size of the 258-RTI2 connector is 3-1/2 inches.
What materials are used in the 258-RTI2 connector?
The 258-RTI2 connector is made from Zinc Die Cast.
How many connectors are in a standard package?
A standard package contains 6 connectors.
Where is the 258-RTI2 connector manufactured?
The 258-RTI2 connector is manufactured in the USA.
Is the 258-RTI2 connector suitable for wet locations?
Yes, it is designed for wet locations as a raintight connector.
What is the temperature rating of the insulated throat?
The insulated throat is rated for 105° C.
What certifications does the 258-RTI2 connector have?
The connector is UL listed and complies with Federal Specification A-A-50553.
What dimensions does the 258-RTI2 connector have?
The dimensions are A: 2.39, B: 3.57, C: 4.79 inches.
What is the NPT thread type for the connector?
The 258-RTI2 connector comes with NPT Thread.
What is the UL file number for the connector?
The UL file number for the 258-RTI2 connector is E24001.
