Contact for Pricing

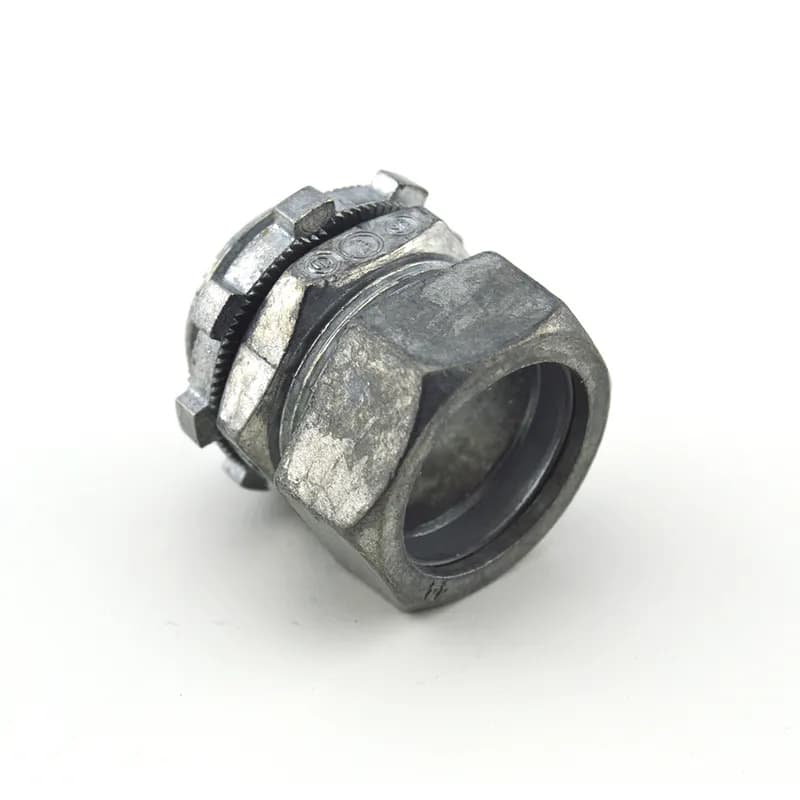

Overview
- Zinc die-cast construction for corrosion resistance and durability
- 3 1/2-inch size for standard conduit compatibility
- 105°C insulated throat prevents electrical shorts
- Compression connection type ensures secure, vibration-resistant fit
- UL-tested for reliable, error-free performance
Specifications
Application | Used to join steel EMT to box or enclosure. Concrete-tight. 2 1/2" thru 4" suitable for use with Steel EMT. Insulator rated 105°C. 2-1/2" through 4" also listed for use with Steel and Aluminum Rigid Conduit. |
Connection Type | Compression |
Connector Type | Compression |
Finish | Ball burnish |
Insulation | Insulated Throat |
Material | Zinc Die Cast |
Material Quality | Zinc Die Cast |
Series | 258 |
Size | 3-1/2 IN |
Special Features | Concrete-tight |
Standard | cULus |
Temperature Rating, Maximum | 221 F |
Temperature Rating, Maximum | 105 C |
Temperature Rating, Minimum | 221 F |
Temperature Rating, Minimum | 105 C |
Trade Size | 3-1/2 in. |
Type | Connector |
Package Weight (Imperial) | 2.183 L |
Package Weight (Metric) | 0.990 kg |
Frequently Asked Questions
What is the finish of the connector?
The connector has a ball burnished, mirror smooth finish.
Where is the 258-DCI2 connector manufactured?
The connector is manufactured in the USA.
What certifications does this product have?
It is UL Listed (E24001, UL-514B) and CSA Listed (LR39354). It also meets Federal Specification A-A-50553 and NEMA Standard FB-1.
What is the trade size of this connector?
The trade size of this connector is 3-1/2 inches.
What are the dimensions of the 258-DCI2 connector?
Dimension A is 1 inch, Dimension B is 2-1/4 inches, and Dimension C is 5 inches.
What is the temperature rating of the insulator?
The insulator is rated for 105°C.
What is the material of the connector?
The connector is made from Zinc Die Cast.
What materials is this connector compatible with?
It is suitable for use with Steel EMT. Sizes 2-1/2 inches through 4 inches are also listed for use with Steel and Aluminum Rigid Conduit.
What is the primary use of this connector?
This connector is used to join steel EMT to a box or enclosure. It is also concrete-tight.
What is the primary use of this connector?
This connector is used to join steel EMT to a box or enclosure. It is also concrete-tight.
