Overview
- UL1449 5th Edition Type 1 SPD, File E210793 compliant
- TPMOV® technology for advanced surge protection
- 10-20kA nominal discharge current rating
- NEMA 4X enclosure for indoor/outdoor use
- Supports up to 10 modes of protection (L-N, L-L, L-G, N-G optional)
- Compact design with 3/4" knockout and 36" leads for easy installation
- Optional audible alarm and Form C dry contacts for remote monitoring
- 5-year manufacturer’s warranty
- No additional overcurrent protection required
- CSA C22.2 and ANSI/IEEE compliant
Specifications
Application | Branch panel and/or individual equipment protection Commercial and Industrial Distribution Panels Control Panels |
Brand Name | Mersen |
Connection Type | Line or Load Installation |
Frequency | 50-60 Hz |
Frequency Rating | 50/60 HZ |
Frequency Rating, Maximum | 60 Hz |
Frequency Rating, Minimum | 50 Hz |
Insulation | Aluminum |
Material | Aluminum |
Mounting | Bracket |
Mounting Type | Branch Panel or Individual Equipment |
Operating Temperature, Maximum | 185 F |
Operating Temperature, Maximum | 85 C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Series | STXR |
Short Circuit Rating | 200 kA |
Short-Circuit Rating | 200 kA |
Size | 2.95 x 2 x 0.95;74.93 x 50.8 x 24.13 in;mm |
Size | Compact |
Special Features | Designed with the industry leading Mersen TPMOV® Technology LED status indicator (ON = Good, OFF = Replace) NEMA 4X enclosure for outdoor or indoor use Fits 3/4" knockouts with 3' leads for easy installation Optional mounting bracket for surface mount applications Optional audible alarm and remote dry contacts For use in ANSI/UL Type 1 or 2 SPD installations Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional) 5-year warranty |
Special Features | Designed with industry leading Mersen TPMOV technology Optional mounting bracket for surface mount applications NEMA 4X enclosure for outdoor or indoor use Fits 3/4" knockouts with 3' leads for easy installation Up to 10 modes of Protection (L-N, L-L, L-G optional, N-G optional) Bright LED status indicator, visible from side profile through clear cover 5-year manufacturer’s warranty |
Standard | ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD ANSI/IEEE C62.41.1, C62.41.2, C62.45 UL96A Lightning Protection RoHS Compliant |
Standard | ANSI/UL 1449 5th Edition, Type 1 SPD, File E210793 CSA C22.2, Type 1 SPD UL96A Lightning Protection RoHS Compliant |
Type | NEMA UL CSA TYPE 1 |
UL SPD Type | Type 1 |
Package Weight (Imperial) | 0.200 L |
Package Weight (Metric) | 0.091 kg |
STXPFMK

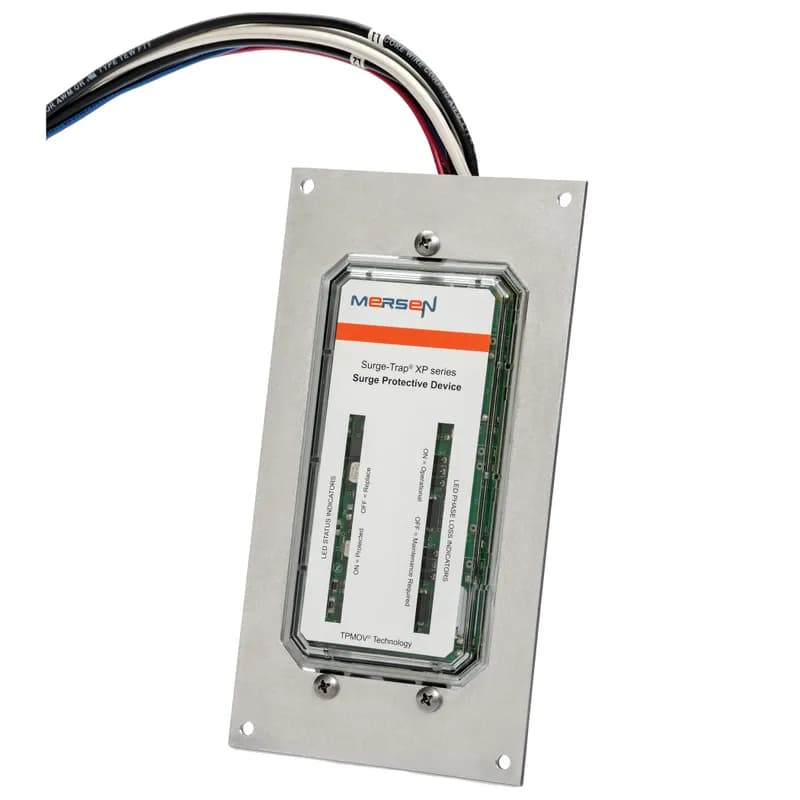

The Surge-Trap® Type 1 STXP Series offers advanced performance and features over the STXR series including higher surge capacity and phase LED status indicators. The STXP meets requirements for UL1449 Fourth Edition and has been designed for additional mounting flexibility including mounting feet and flush-mount capability. The STXP features TPMOV® technology inside making it the safest product available. Installation can be done on the line or load side of a panel. The STXP is the perfect fit from service entrance all the way down to an important machine specific control panel., V, 0, ,How to Install the STXR Series Surge Protective Device
This guide provides step-by-step instructions for installing the STXR Series Surge Protective Device (SPD) to protect your equipment from transient overvoltages.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Watertight fittings (if applicable)
- Turn off power
Ensure all power supplying the equipment is turned off and confirm that the equipment and all sources are de-energized.
- Determine mounting location
Identify a mounting location for the SPD that is as close to the equipment as possible, ensuring that the LED status indicator will be visible.
- Mount the SPD
Secure the SPD to the mounting surface using appropriate mounting screws, ensuring it is level and firmly attached.
- Make electrical connections
Connect the SPD leads according to the wiring diagram provided, ensuring leads are trimmed to the shortest length possible and avoiding sharp bends.
- Energize the system
Turn the power back on and check the green LED status indicator to confirm proper operation. If the LED is off, troubleshoot the connections.
